DD1B-NAB (2015)
Toyota Scion Ia/Yaris R/Ia

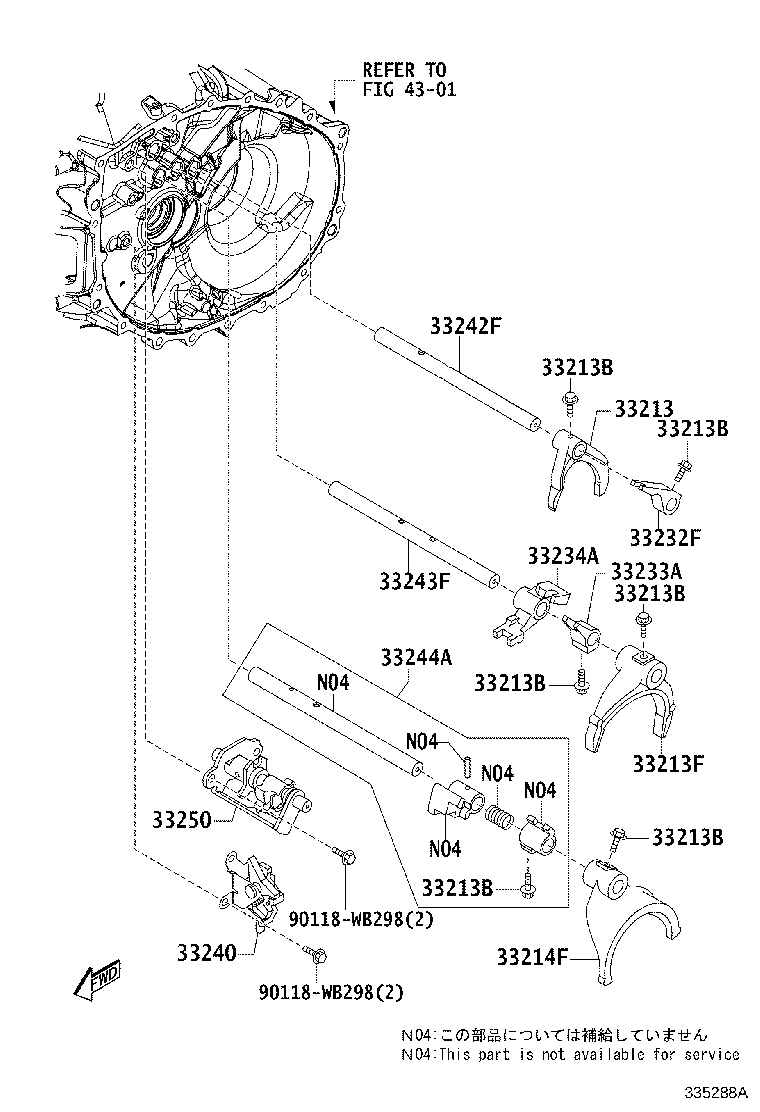

ILLUST NO. 1 OF 2(1506- )DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V
6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90118-WB298 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
6 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90118-WB298 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
6 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90118-WB298 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
6 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90118-WB298 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
6 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90118-WB298 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
6 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90118-WB298 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
6 | ||
| 33213F - FORK, 3RD & 4TH SHIFT | ||||
| 33213-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33233A - HEAD, GEAR SHIFT, NO.2 | ||||
| 33233-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33238-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33242F - SHAFT , 1ST & 2ND SHIFT FORK | ||||
| 33242-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33243F - SHAFT , 3RD & 4TH SHIFT FORK | ||||
| 33243-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33244-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33250 - SHAFT ASSY, SHIFT & SELECT LEVER | ||||
| 33250-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| Common parts | ||||
| 90118-WB298 | ||||
| Linked diagrams | ||||
| 4301 | ||||

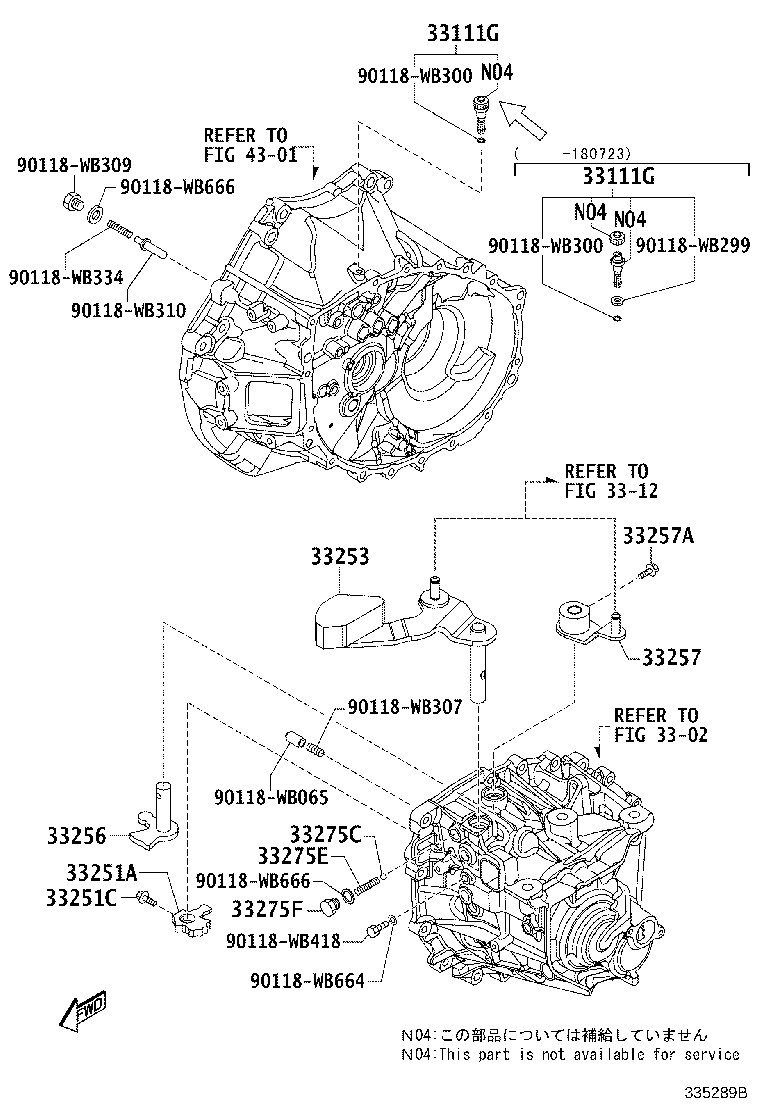

ILLUST NO. 2 OF 2(1506- )DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V
6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90118-WB301 |
DD1B,DM0S |
1 | ||
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90118-WB301 |
DD1B,DM0S |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33251C - BOLT, SET (FOR SHIFT & SELECT LEVER) | ||||
| 90118-WB311 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-WB001 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33257A - BOLT, SELECT OUTER LEVER LOCK | ||||
| 90118-WB311 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90118-WB672 |
DADW1,DAEB1,DAED1,DD1B,DM0S |
1 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90118-WB330 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90118-WB309 |
DADW1,DAEB1,DAED1,DD1B,F4,F8,DM0S |
1 | ||
| Common parts | ||||
| 90118-WB065 | ||||
| 90118-WB299 | ||||
| 90118-WB300 | ||||
| 90118-WB307 | ||||
| 90118-WB309 | ||||
| 90118-WB310 | ||||
| 90118-WB334 | ||||
| 90118-WB418 | ||||
| 90118-WB664 | ||||
| 90118-WB666 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 3312 | ||||
| 4301 | ||||
