DD1B-NAB (2015)
Toyota Scion Ia/Yaris R/Ia
ILLUST NO. 1 OF 3(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-WB002 |
P5..DB7P,DD1B,DM0S,0T NO.2 |
1 | ||
| 23901-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.1 |
1 | ||
| Common parts | ||||
| 23881-WB001 | ||||
| 23881-WB002 | ||||
| 90118-WB441 | ||||
| 90118-WB457 | ||||
| 90118-WB649 | ||||
| 90118-WB673 | ||||
| 90118-WB777 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 7701 | ||||

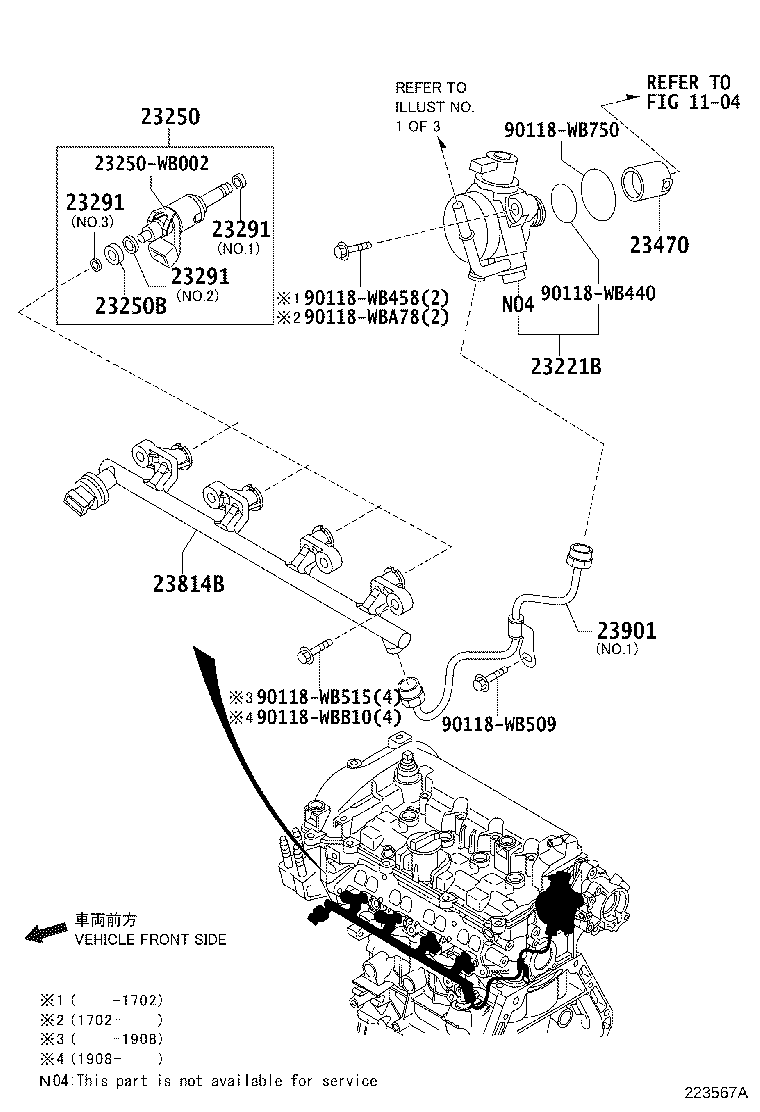

ILLUST NO. 2 OF 3(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221B - PUMP, FUEL | ||||
| 23221-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-WB002 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90118-WB858 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 90118-WB860 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.3 |
4 | ||
| 90118-WB857 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.1 |
4 | ||
| 90118-WB859 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.2 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 90118-WB860 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.3 |
4 | ||
| 90118-WB857 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.1 |
4 | ||
| 90118-WB859 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.2 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 90118-WB860 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.3 |
4 | ||
| 90118-WB857 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.1 |
4 | ||
| 90118-WB859 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.2 |
4 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23470-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-WB001 |
P5..DB7P,DD1B,DM0S,0T |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-WB002 |
P5..DB7P,DD1B,DM0S,0T NO.2 |
1 | ||
| 23901-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.1 |
1 | ||
| Common parts | ||||
| 23250-WB002 | ||||
| 90118-WB440 | ||||
| 90118-WB458 | ||||
| 90118-WB509 | ||||
| 90118-WB515 | ||||
| 90118-WB750 | ||||
| 90118-WBA78 | ||||
| 90118-WBB10 | ||||
| Linked diagrams | ||||
| 1104 | ||||
ILLUST NO. 3 OF 3(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-WB001 |
P5..DB7P,DD1B,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB517 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1703 | ||||
| 8202 | ||||
