DD1B-NAA (2015)

Toyota Scion Ia/Yaris R/Ia

Production Jun 2015 - Aug 2016
Engine P5 1500
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(1506- )DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

Click highlighted areas on diagram

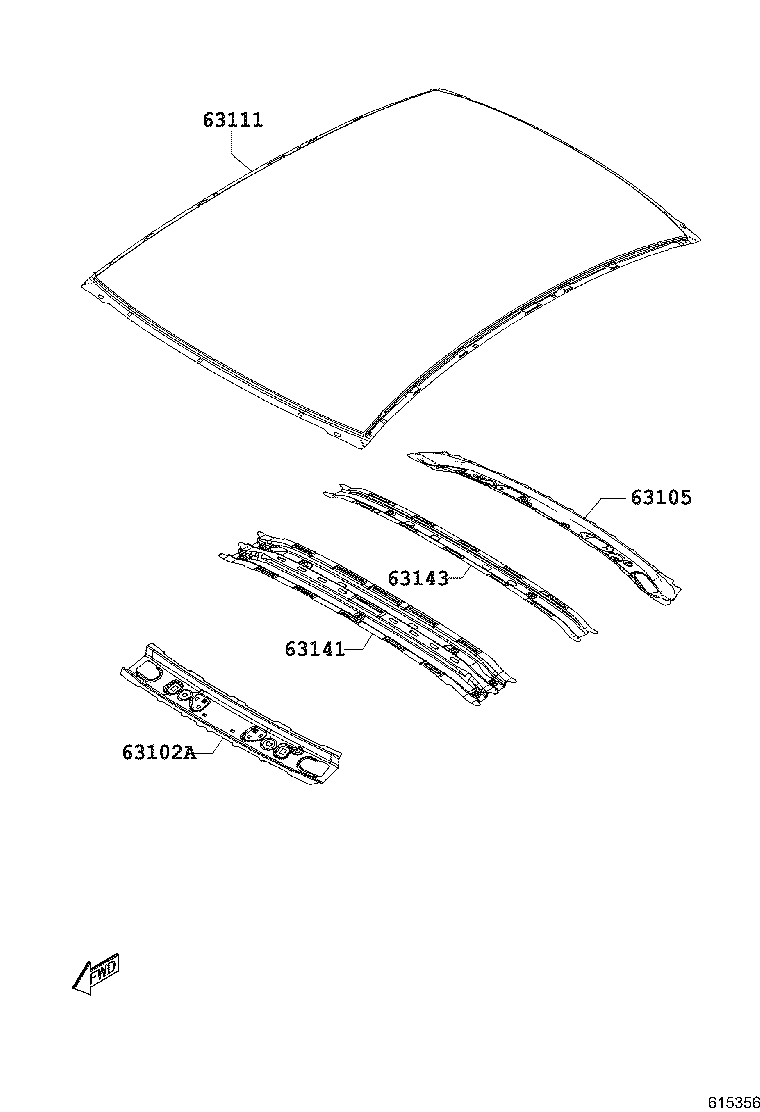

ROOF PANEL

diagram 63102A 63105 63111 63141 63143
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-WB001

DB7P,DD1B,DM0S,0T

 1
63102-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63133-WB001

DB7P,DD1B,DM0S,0T

 1
63133-WB001

DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
63111 - PANEL, ROOF
63111-WB001

DB7P,DD1B,DM0S,0T

 1
63141 - STRENGTH, ROOF PANEL SIDE
63141-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
63143 - RAIL, BACK CORNER UPPER, RH
63143-WB001

DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
63143-WB001

DB7P,DD1B,DM0S,0T

 1

ILLUST NO. 2 OF 5(1506- )

Click highlighted areas on diagram

ROOF PANEL

diagram 63137A 8121 8121 8121 8121 8121 8121 90118WB641
Part # Description Qty Price
63137A - BRACKET, DOME LAMP, NO.1
63137-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
63137-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB641
Linked diagrams
8121

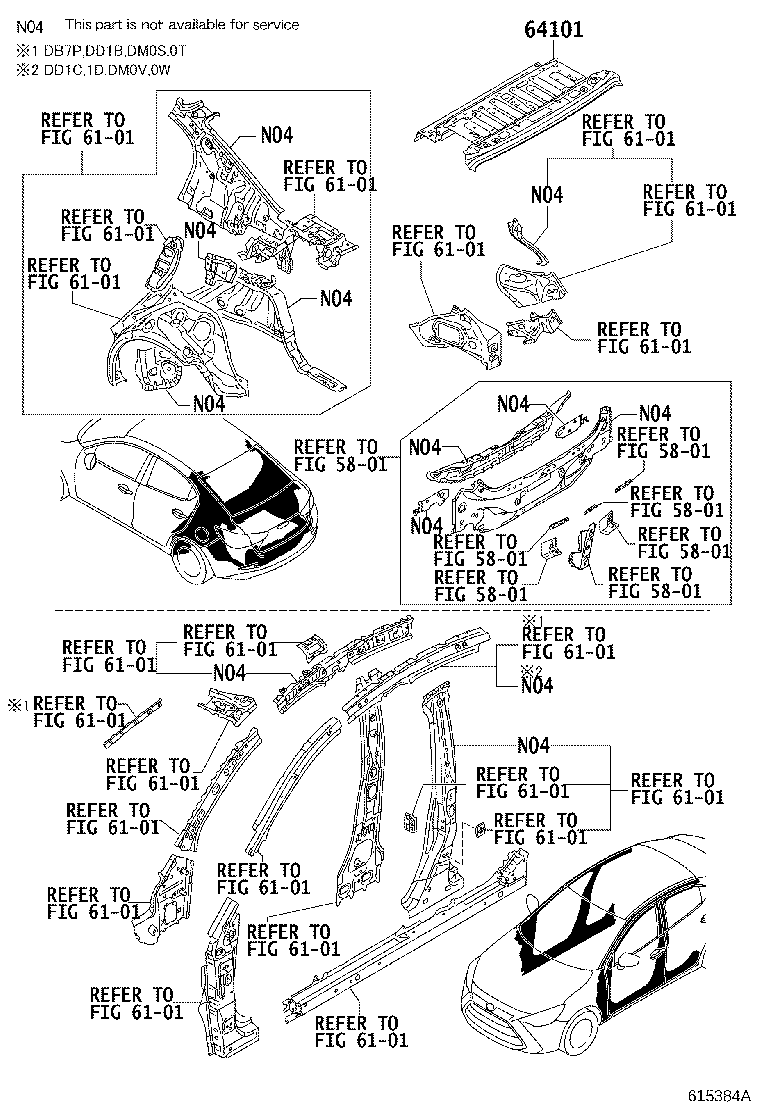

ILLUST NO. 3 OF 5(1506-1808)

Click highlighted areas on diagram

ROOF PANEL

diagram 5801 5801 5801 5801 5801 5801 5801 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 6101 64101
Part # Description Qty Price
64101 - PANEL SUB-ASSY, UPPER BACK
64101-WB003

DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
64101-WB003

DB7P,DD1B,DM0S,0T

 1
Linked diagrams
5801
6101

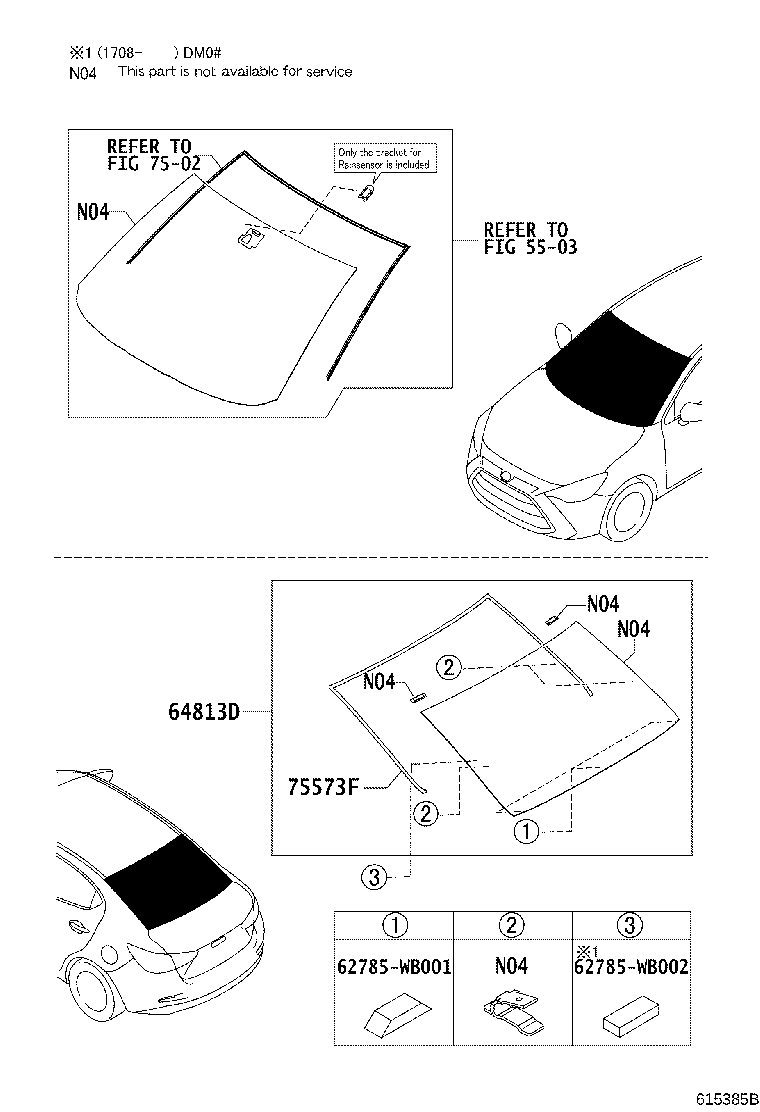

ILLUST NO. 5 OF 5(1506- )DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

Click highlighted areas on diagram

ROOF PANEL

diagram 5503 62785WB001 62785WB002 64813D 7502 75573F
Part # Description Qty Price
64813D - DAM, BACK WINDOW GLASS ADHESIVE
68105-WB003

DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
68105-WB002

DB7P,DD1B

 1
75573F - MOULDING, BACK WINDOW, OUTSIDE
75573-WB003

DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
75573-WB002

DB7P,DD1B

 1
Common parts
62785-WB001
62785-WB002
Linked diagrams
5503
7502
