DD1B-NAA (2015)
Toyota Scion Ia/Yaris R/Ia
ILLUST NO. 1 OF 9(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-WB002 |
DB7P,DD1B,DM0S,0T TINTED GRAY/BLACK,TRIM80 |
1 | ||
| 55403-WB001 |
DB7P,DD1B,DM0S,0T BLACK/BLUE,TRIM70 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 55406-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W BLACK,TRIM10,20,30,40,70,80 |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-WB002 |
DD1B,DM0S..USA;DB7P,DM0T..A,B,D,F,G,H,K BLACK,TRIM70,80 |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-WB002 |
DD1B..USA;DB7P,DM0S,0T..(PUE,USA)..(A,B,D,F,G,K) BLACK,TRIM70,80 |
1 | ||
| 55431-WB001 |
DD1B,DM0T..B,C,E,F;DB7P,DM0S..(CND,PUE)..(B,C,D,E,H,J,L) SILVER/BLACK,TRIM70,80 |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-WB001 |
DD1B,DM0T..B,C,E,F;DB7P,DM0S..(CND,PUE)..(B,C,D,E,H,J,L) SILVER/BLACK,TRIM70,80 |
1 | ||
| 55475-WB002 |
DD1B..USA;DB7P,DM0S,0T..(PUE,USA)..(A,B,D,F,G,K) BLACK,TRIM70,80 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-WB001 |
DB7P,DD1B,F4,F5,DM0S,0T BLACK,TRIM10,20,30,40,70,80 |
1 | ||
| 55548-WB002 |
DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB043 | ||||
| 90118-WB366 | ||||
| 90118-WB381 | ||||
| 90118-WB487 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 8401 | ||||
| 8602 | ||||
ILLUST NO. 2 OF 9(1506-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 55411-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W BLACK,TRIM10,20,30,40,70,80 |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 55418-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| Common parts | ||||
| 90118-WB043 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T BLACK,TRIM10,20,30,40,70,80 |
1 | ||
| 55461D - INSERT, INSTRUMENT PANEL SAFETY PAD, NO.1 | ||||
| 55461-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 55462B - INSERT, INSTRUMENT PANEL SAFETY PAD | ||||
| 55462-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T BLACK,TRIM10,20,30,40,70,80 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
3 | ||
| 55557-WB001 |
DB7P,DD1B,DM0S,0T |
3 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 55607-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| Common parts | ||||
| 90118-WB476 | ||||
| 90118-WB487 | ||||
| 90118-WB646 | ||||
| 90118-WB654 | ||||
| 90118-WB685 | ||||
| 90118-WB687 | ||||

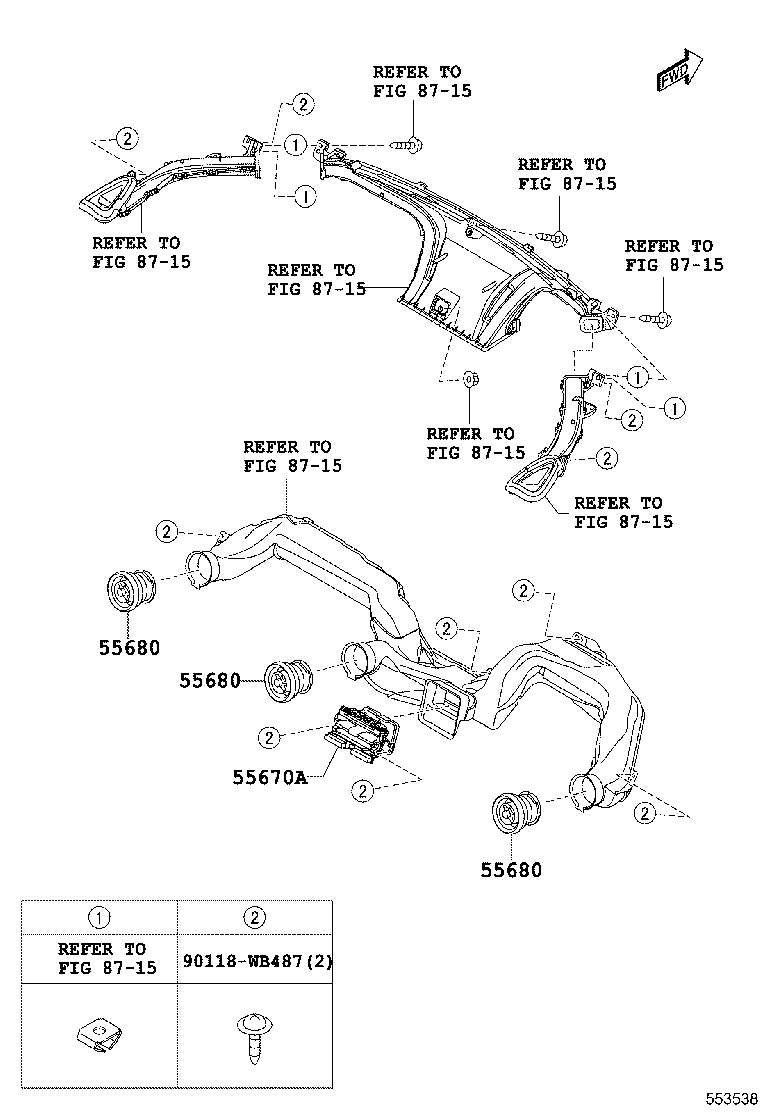

ILLUST NO. 5 OF 9(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-WB001 |
DD1B..USA;DB7P,DM0S,0T..(PUE,USA)..(A,B,D,F,G,K) BLACK,TRIM70,80 |
1 | ||
| 55670-WB002 |
DD1B,DM0T..B,C,E,F;DB7P,DM0S..(CND,PUE)..(B,C,D,E,H,J,L) SILVER/BLACK,TRIM70,80 |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-WB002 |
DD1B,DM0T..B,C,E,F;DB7P,DM0S..(CND,PUE)..(B,C,D,E,H,J,L) SILVER/BLACK,TRIM70,80 |
3 | ||
| 55680-WB001 |
DD1B..USA;DB7P,DM0S,0T..(PUE,USA)..(A,B,D,F,G,K) BLACK/CHROME,TRIM70,80 |
3 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-WB002 |
DD1B,DM0T..B,C,E,F;DB7P,DM0S..(CND,PUE)..(B,C,D,E,H,J,L) SILVER/BLACK,TRIM70,80 |
3 | ||
| 55680-WB001 |
DD1B..USA;DB7P,DM0S,0T..(PUE,USA)..(A,B,D,F,G,K) BLACK/CHROME,TRIM70,80 |
3 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-WB002 |
DD1B,DM0T..B,C,E,F;DB7P,DM0S..(CND,PUE)..(B,C,D,E,H,J,L) SILVER/BLACK,TRIM70,80 |
3 | ||
| 55680-WB001 |
DD1B..USA;DB7P,DM0S,0T..(PUE,USA)..(A,B,D,F,G,K) BLACK/CHROME,TRIM70,80 |
3 | ||
| Common parts | ||||
| 90118-WB487 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 6 OF 9(1506-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8601 | ||||
| 8602 | ||||
| 8603 | ||||
| 8604 | ||||
ILLUST NO. 7 OF 9(1506-1808)DB7P,DD1B,DM0S,0T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90118-WB821 | ||||
| Linked diagrams | ||||
| 4504 | ||||
| 6401 | ||||
| 7101 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 8 OF 9(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-WB001 |
DB7P,DD1B,F4,F5,DM0S,0T BLACK,TRIM10,20,30,40,70,80 |
1 | ||
| 55548-WB002 |
DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| Linked diagrams | ||||
| 5304 | ||||
| 8202 | ||||
| 8715 | ||||
ILLUST NO. 3 OF 9(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 55302-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W BLACK,TRIM10,20,30,40,70,80 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W NO.2:REFER ILLUST. |
2 | ||
| 55315-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W NO.1:REFER ILLUST. |
2 | ||
| 55315-WB002 |
DB7P,DD1B,DM0S,0T NO.2:REFER ILLUST. |
2 | ||
| 55315-WB001 |
DB7P,DD1B,DM0S,0T NO.1:REFER ILLUST. |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W NO.2:REFER ILLUST. |
2 | ||
| 55315-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W NO.1:REFER ILLUST. |
2 | ||
| 55315-WB002 |
DB7P,DD1B,DM0S,0T NO.2:REFER ILLUST. |
2 | ||
| 55315-WB001 |
DB7P,DD1B,DM0S,0T NO.1:REFER ILLUST. |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W NO.2:REFER ILLUST. |
2 | ||
| 55315-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W NO.1:REFER ILLUST. |
2 | ||
| 55315-WB002 |
DB7P,DD1B,DM0S,0T NO.2:REFER ILLUST. |
2 | ||
| 55315-WB001 |
DB7P,DD1B,DM0S,0T NO.1:REFER ILLUST. |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 55347-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 90118-WB891 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 90118-WB891 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 90118-WBA33 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
11 | ||
| 90118-WBA33 |
DB7P,DD1B,DM0S,0T |
11 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 90118-WBA33 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
11 | ||
| 90118-WBA33 |
DB7P,DD1B,DM0S,0T |
11 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 90118-WB892 |
DB7P,DD1B |
5 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 90118-WB892 |
DB7P,DD1B |
5 | ||
| 55427E - BRACKET, CLUSTER FINISH PANEL, NO.2 | ||||
| 55427-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| 55427-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 55428D - RETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2 | ||||
| 55428-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 55428-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-WB001 |
DB7P,DD1B,DM0S,0T |
4 | ||
| 55458-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
4 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-WB001 |
DB7P,DD1B,DM0S,0T |
4 | ||
| 55458-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
4 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 55561-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB034 | ||||
| 90118-WB351 | ||||
| 90118-WB487 | ||||
| 90118-WB562 | ||||
| 90118-WB568 | ||||
| 90118-WB588 | ||||
| 90118-WB687 | ||||
| 90118-WB699 | ||||
| 90118-WB700 | ||||
ILLUST NO. 9 OF 9(1506-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 55539-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
