DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1506-1808)

Click highlighted areas on diagram

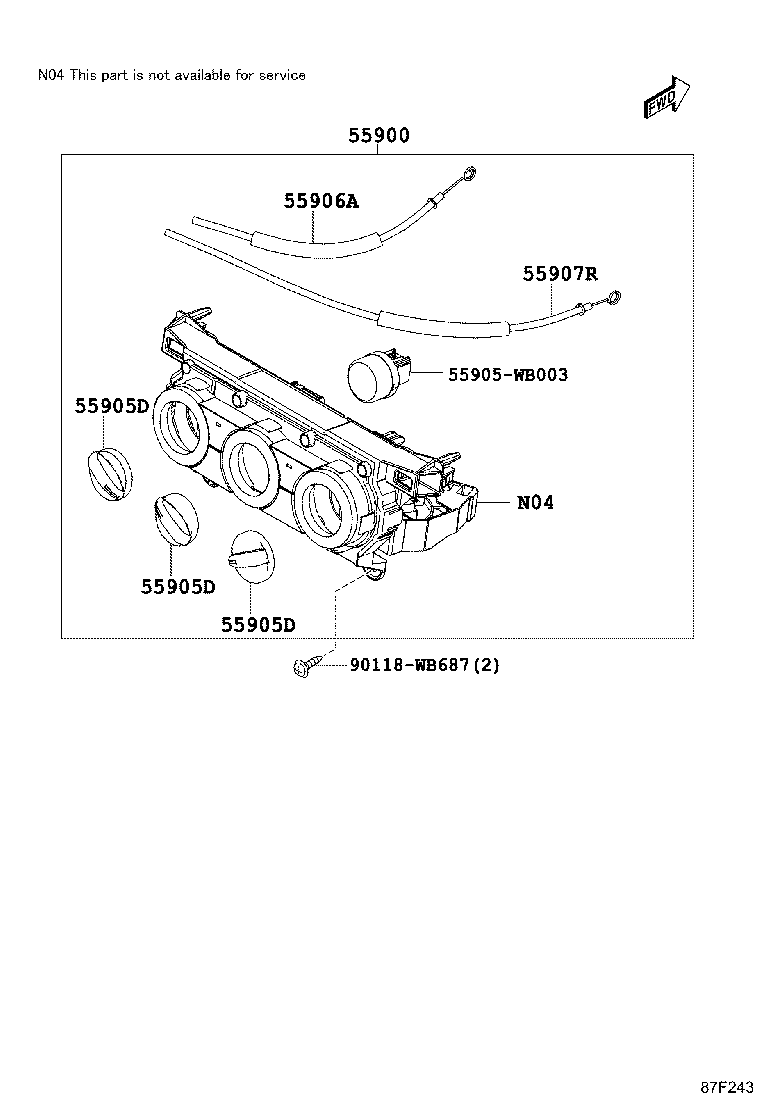

HEATER CONTROL PANEL

diagram 55900 55905D 55905D 55905D 55905WB003 55906A 55907R 90118WB687
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55936-WB001

DB7P,DD1B

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-WB002

DB7P,DD1B,DM0S,0T

 3
55905D - KNOB SUB-ASSY, CONTROL
55905-WB002

DB7P,DD1B,DM0S,0T

 3
55905D - KNOB SUB-ASSY, CONTROL
55905-WB002

DB7P,DD1B,DM0S,0T

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-WB001

DAEC1..C,E,F;DB7P,DD1B,F5,DM0T;DADW1,DAEA1,DAEB1,DAED1,DAEE1,DDF4,DM0S..A,B,C,D

 1
55907R - CABLE SUB-ASSY, TEMPERATURE CONTROL
55907-WB001

DAEC1..C,E,F;DB7P,DD1B,F5,DM0T;DADW1,DAEA1,DAEB1,DAED1,DAEE1,DDF4,DM0S..A,B,C,D

 1
Common parts
55905-WB003
90118-WB687

ILLUST NO. 4 OF 4(1506-1808)

Click highlighted areas on diagram

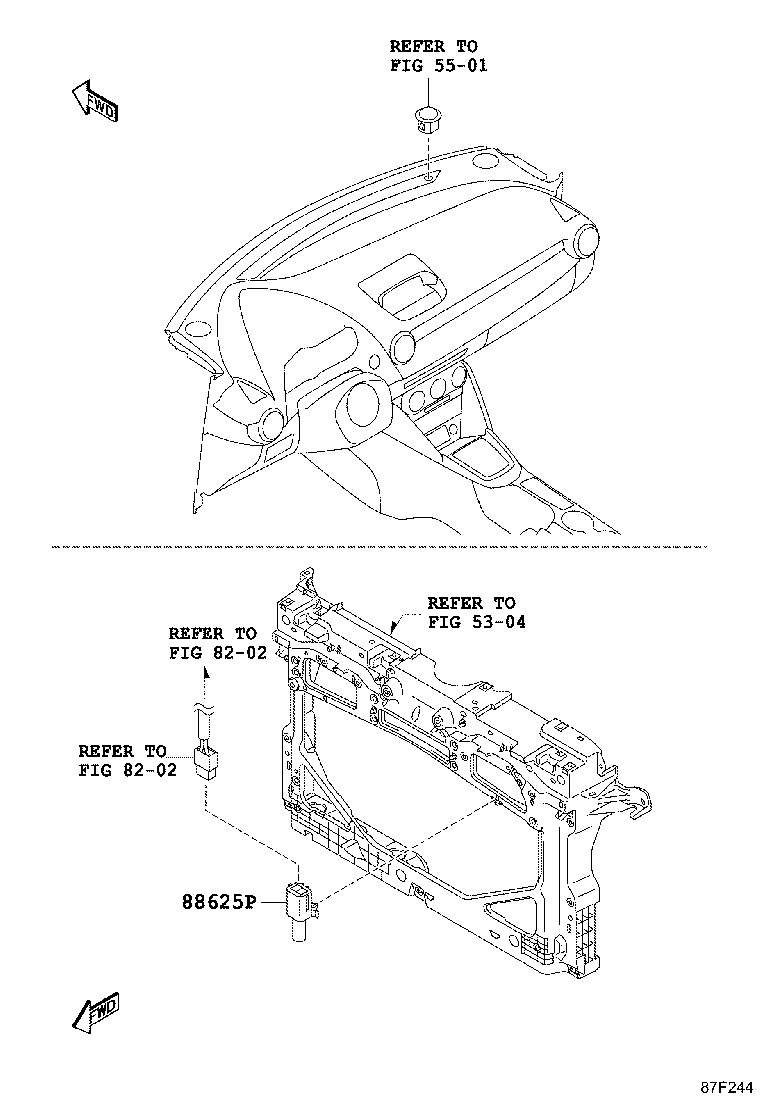

SENSOR

diagram 5304 5501 8202 8202 88625P
Part # Description Qty Price
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 1
Linked diagrams
5304
5501
8202
