DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

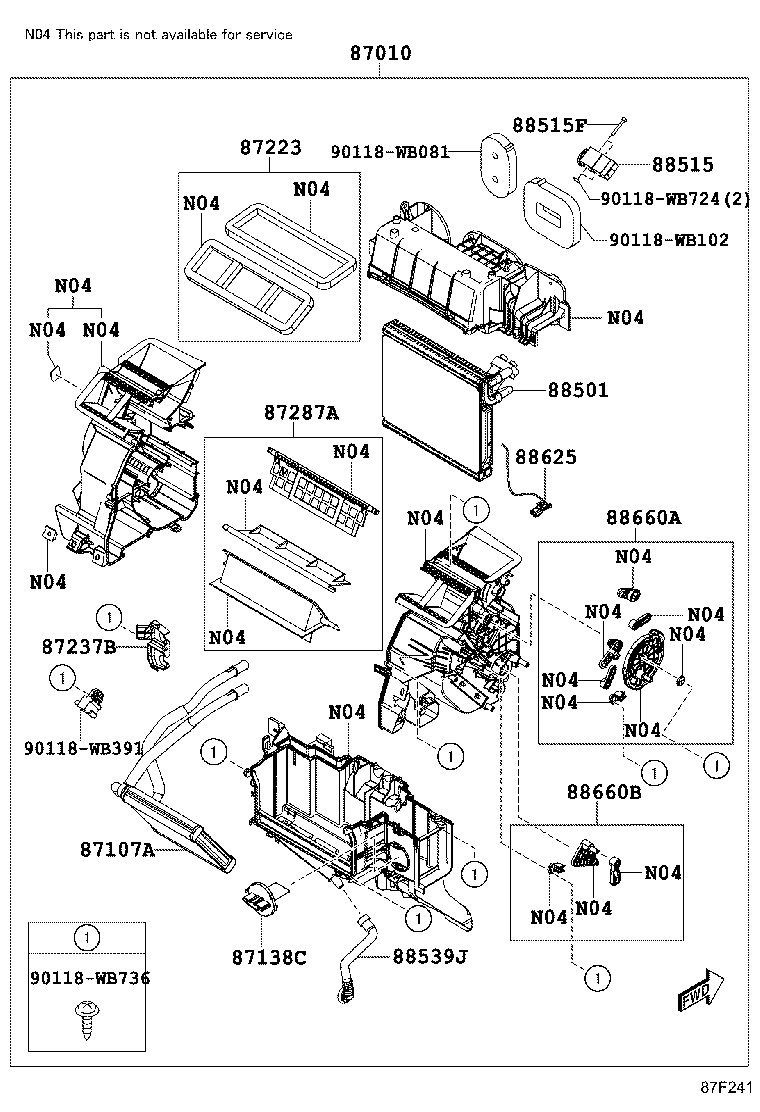

ILLUST NO. 1 OF 2(1506-1808)

Click highlighted areas on diagram

diagram 87010 87107A 87138C 87223 87237B 87287A 88501 88515 88515F 88539J 88625 88660A 88660B 90118WB081 90118WB102 90118WB391 90118WB724 90118WB736
Part # Description Qty Price
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 1
87138C - RESISTOR, BLOWER
87138-WB001

DB7P,DD1B,DM0S,0T

 1
87223 - PAD, AIR DUCT
87429-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 1
87237B - COVER, HEATER PIPING
87237-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 1
87287A - DAMPER, HEATER AIR
87287-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 1
88515 - VALVE, COOLER EXPANSION
88515-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90118-WB365

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 2
88539J - HOSE, DRAIN COOLER
88539-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 1
88625 - THERMISTOR, COOLER, NO.1
88625-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 1
88660A - SERVO ASSY, AIR CONDITIONER, NO.1
88660-WB003

DB7P,DD1B,DM0S,0T

 1
88660B - SERVO ASSY, AIR CONDITIONER, NO.2
88660-WB002

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB081
90118-WB102
90118-WB391
90118-WB724
90118-WB736
