DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

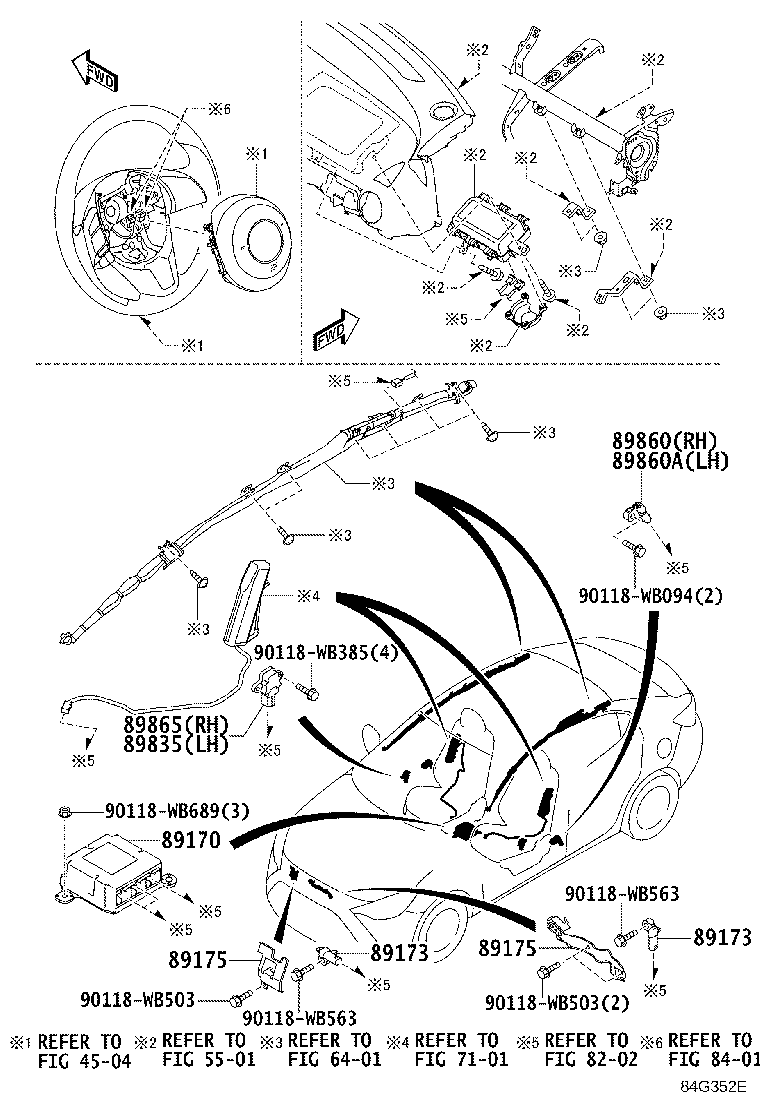

ILLUST NO. 1 OF 5(1506-1808)DB7P,DD1B,DM0S,0T

Click highlighted areas on diagram

diagram 4504 5501 6401 7101 8202 8401 89170 89173 89173 89175 89175 89835 89860 89860A 89865 90118WB094 90118WB385 90118WB503 90118WB503 90118WB563 90118WB563 90118WB689
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-WB003

DB7P,DD1B,DM0S,0T

 1
89173 - SENSOR, AIR BAG, FRONT
89173-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 2
89173 - SENSOR, AIR BAG, FRONT
89173-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 2
89175 - BRACKET, AIR BAG SENSOR
89175-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

NO.2

 1
89175-WB002

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

NO.1

 1
89175 - BRACKET, AIR BAG SENSOR
89175-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

NO.2

 1
89175-WB002

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

NO.1

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-WB002

DB7P,DD1B,DM0S,0T

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-WB002

DB7P,DD1B,DM0S,0T

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-WB001

DB7P,DD1B,F4,F5,DM0S,0T

 1
Common parts
90118-WB094
90118-WB385
90118-WB503
90118-WB563
90118-WB689
Linked diagrams
4504
5501
6401
7101
8202
8401

ILLUST NO. 2 OF 5(1506-1709)DB7P,DD1B,DM0S,0T

Click highlighted areas on diagram

diagram 7101 7101 7101 7101 8202 8202 89178A
Part # Description Qty Price

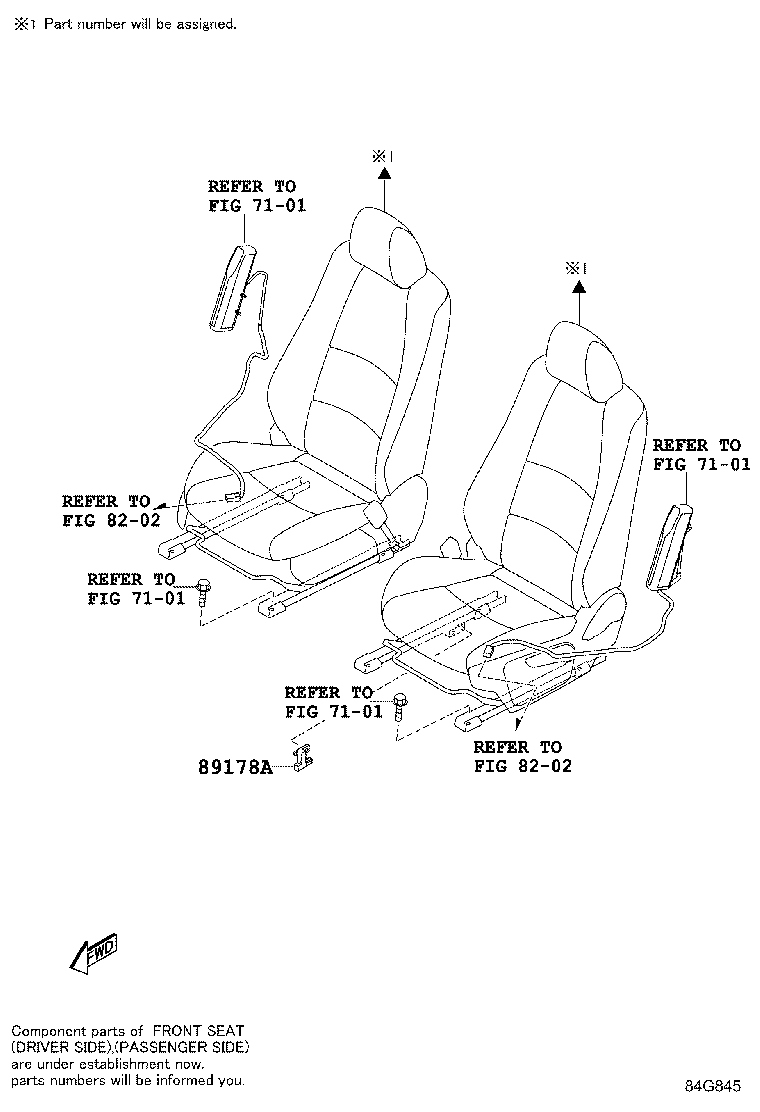

89178A - SENSOR, SEAT POSITION AIR BAG
89178-WB001

DB7P,DD1B,DM0S,0T

 1
Linked diagrams
7101
8202
