DB7P-NAL (2016)
Toyota Scion Ia/Yaris R/Ia
ILLUST NO. 2 OF22(1506-1908)

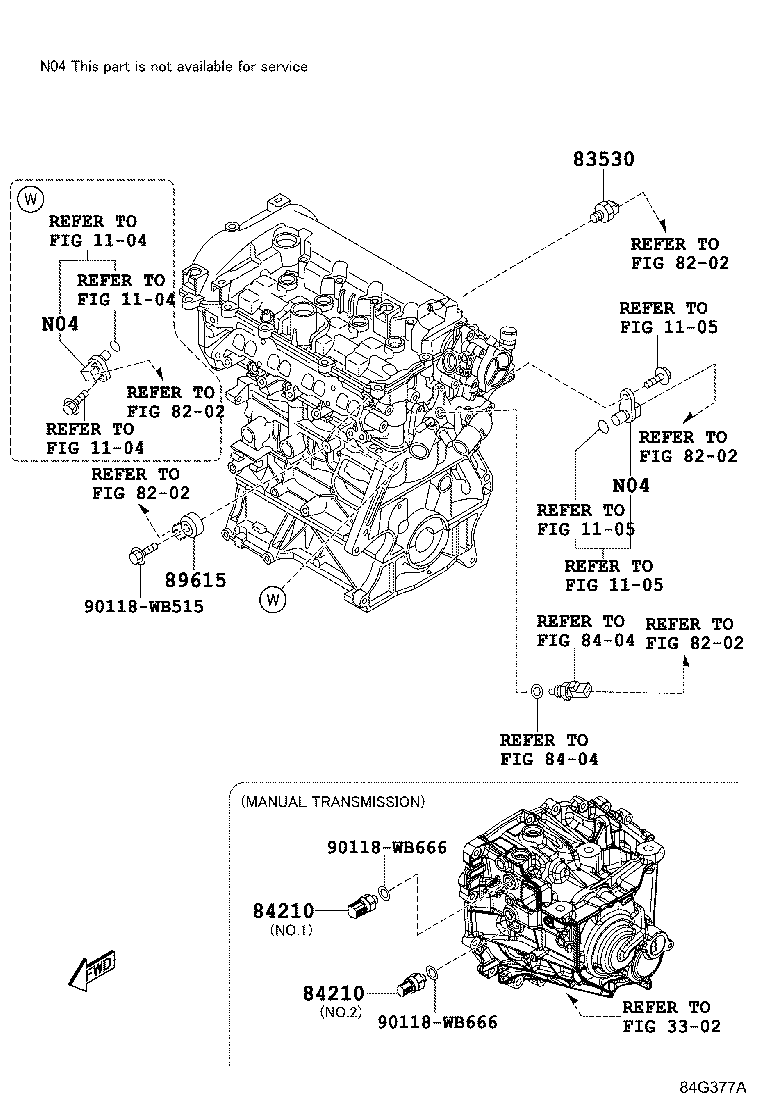

ENGINE & TRANSMISSION(2/4)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB515 | ||||
| 90118-WB666 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 3302 | ||||
| 8202 | ||||
| 8404 | ||||

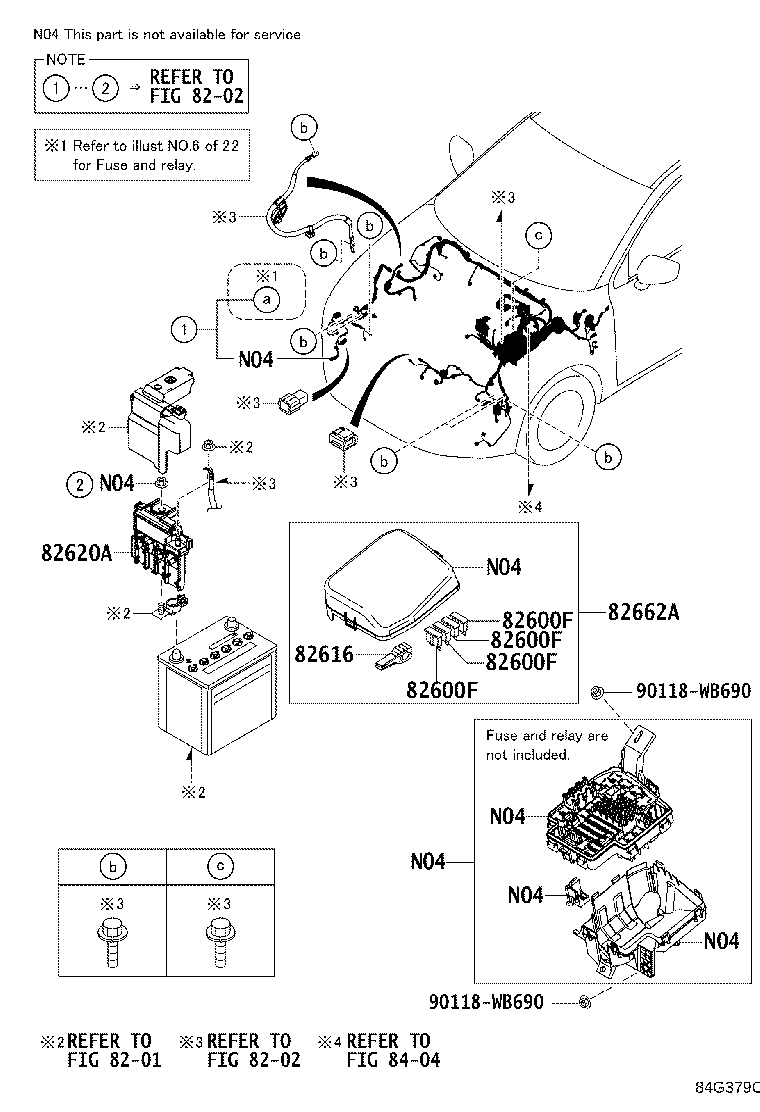

ILLUST NO. 5 OF22(1506-1908)
ENGINE ROOM(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 90118-WB108 |
DB7P,DD1B,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB690 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 6 OF22(1506-1808)
ENGINE ROOM(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90118-WB766 |
P5..DB7P,DD1B,DM0S,0T |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90118-WB759 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 28380C - RELAY ASSY, FUEL PUMP | ||||
| 90118-WB705 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90118-WB766 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 85915E - RELAY | ||||
| 90118-WB766 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| 90118-WB485 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90118-WB766 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DDF5,DM0T |
2 | ||
| 85930G - RELAY, ACC | ||||
| 90118-WB766 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90118-WB485 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 85940D - RELAY ASSY, WINDSHIELD WIPER, NO.2 | ||||
| 90118-WB485 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90118-WB766 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90118-WB746 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 88631E - RELAY, AIRCONDITIONER | ||||
| 90118-WB766 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||

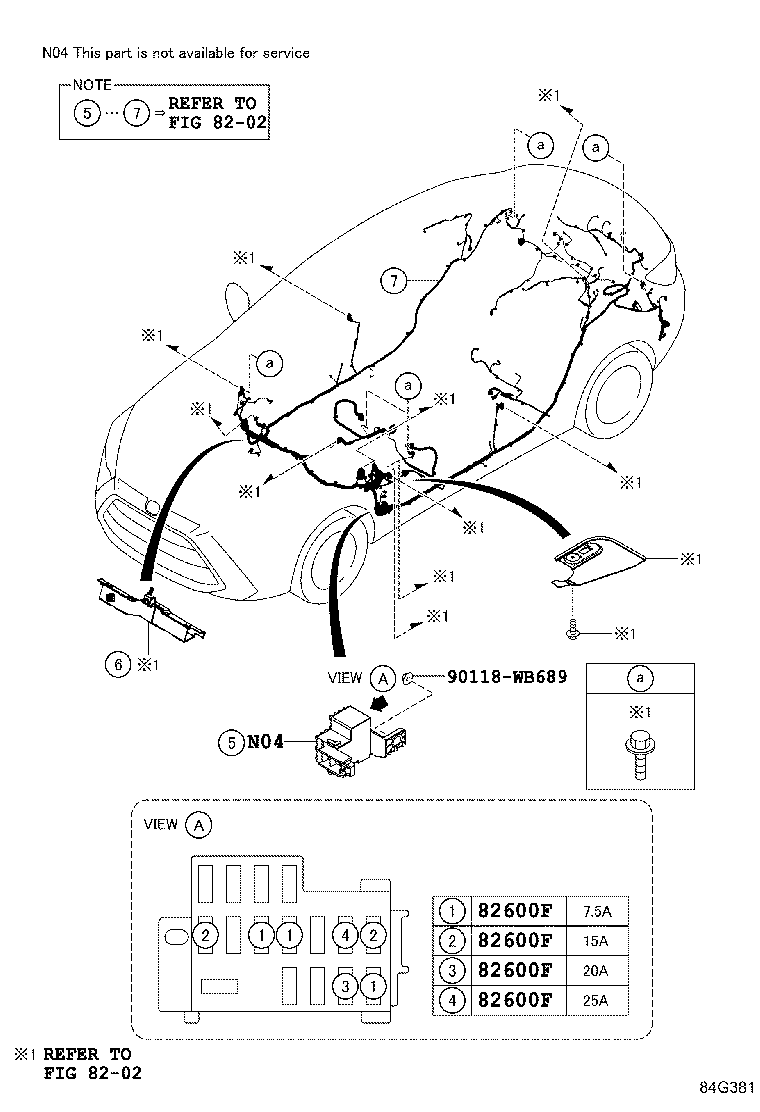

ILLUST NO. 7 OF22(1506-1808)
COWL(1/7)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||

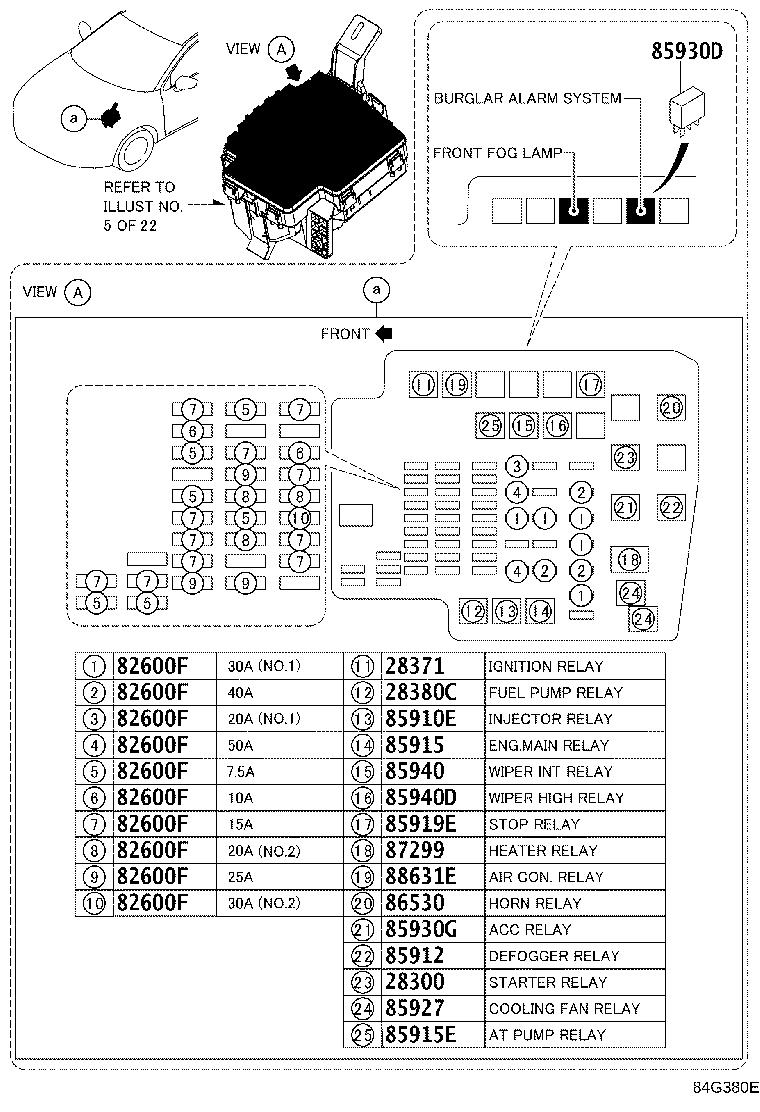

| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WB060 |
DB7P,DD1B,DM0S,0T 40A |
3 | ||
| 90118-WB415 |
DB7P,DD1B,DM0S,0T 50A |
2 | ||
| 90118-WB812 |
DB7P,DD1B,DM0S,0T 10A |
2 | ||
| 90118-WB058 |
DB7P,DD1B,DM0S,0T 20A,NO.1 |
1 | ||
| 90118-WB815 |
DB7P,DD1B,DM0S,0T 25A |
4 | ||
| 90118-WB814 |
DB7P,DD1B,DM0S,0T 20A,NO.2 |
4 | ||
| 90118-WB059 |
DB7P,DD1B,DM0S,0T 30A,NO.1 |
5 | ||
| 90118-WB811 |
DB7P,DD1B,DM0S,0T 7.5A |
9 | ||
| 90118-WB813 |
DB7P,DD1B,DM0S,0T 15A |
13 | ||
| 90118-WB816 |
DB7P,DD1B,DM0S,0T 30A,NO.2 |
1 | ||
| Common parts | ||||
| 90118-WB689 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO.11 OF22(1506-1808)
COWL(5/7)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

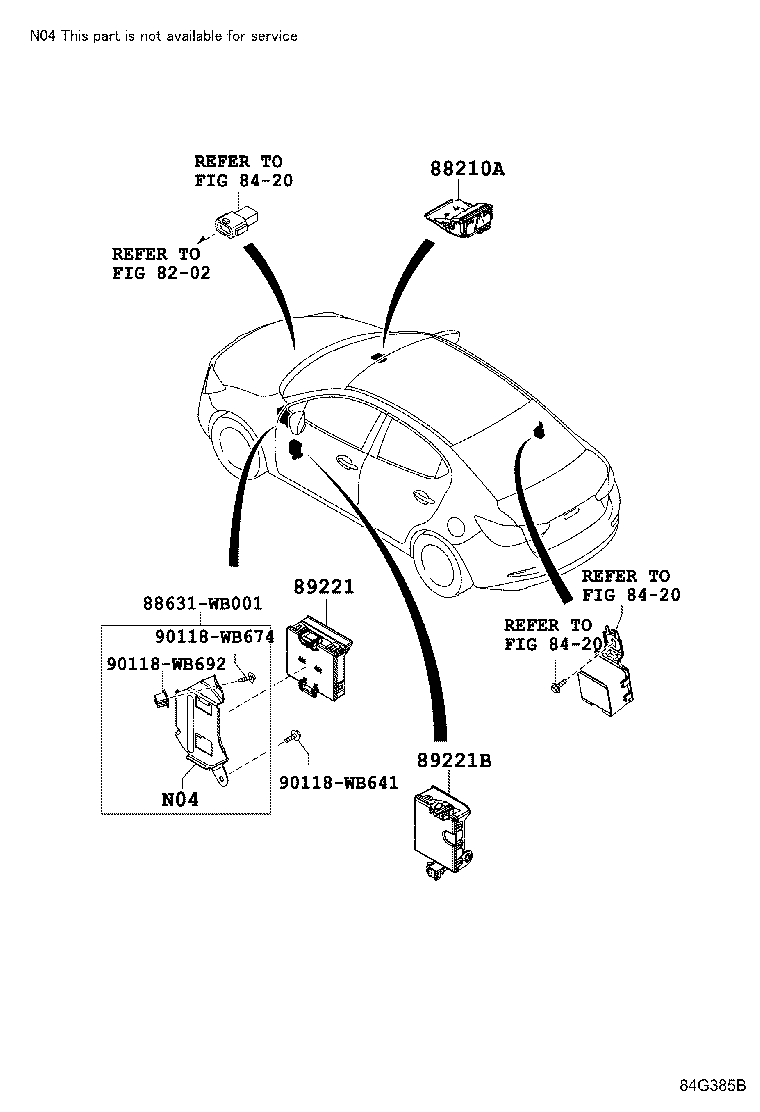

| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-WB005 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-WB006 |
DB7P,DD1B |
1 | ||
| Common parts | ||||
| 88631-WB001 | ||||
| 90118-WB641 | ||||
| 90118-WB674 | ||||
| 90118-WB692 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8420 | ||||
ILLUST NO.14 OF22(1506-1808)
INSTRUMENT PANEL(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-WB001 |
DM0T..A,C,D,E;DD1B,F5..A,B,C,D,E,F;DB7P..B,C,E,F,G,J,K,L;DADW1,DAEA1,DAEB1,DAEC1,DDF4,DM0S..A,B,C,D,E |
1 | ||
| Common parts | ||||
| 90118-WB687 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 5501 | ||||
| 8602 | ||||
ILLUST NO.15 OF22(1506-1908)

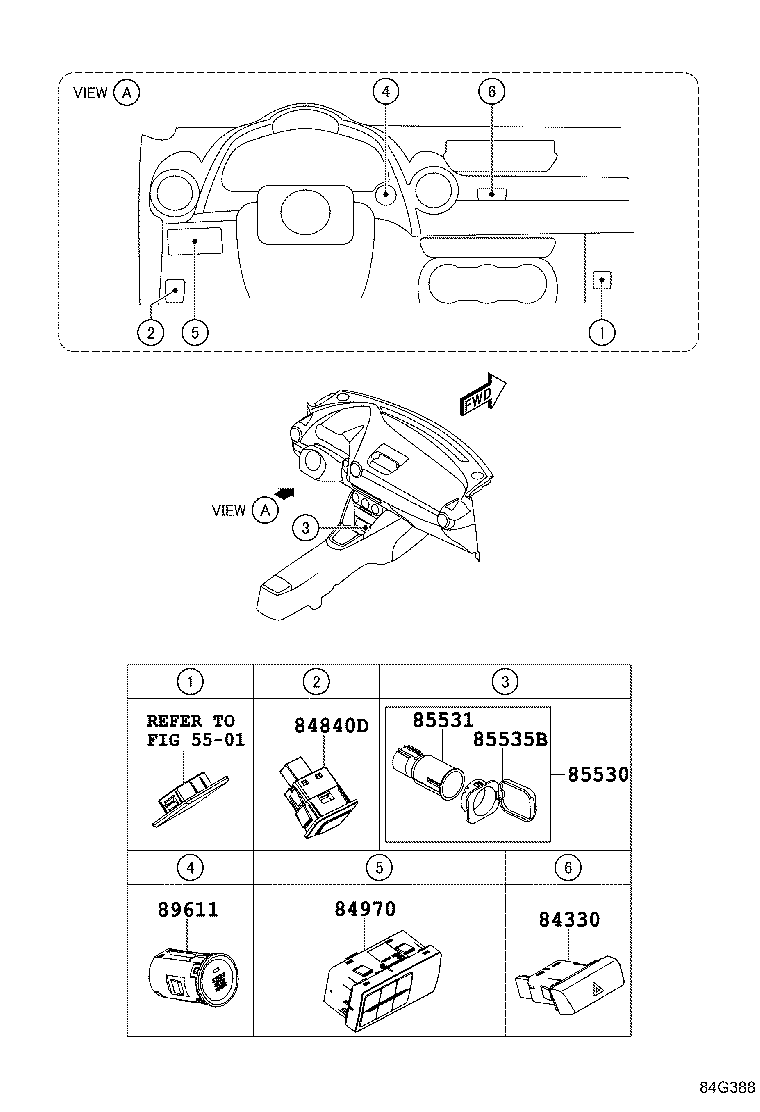

INSTRUMENT PANEL(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-WB001 |
DD1B,DM0T..(PUE,USA)..(A,D,E);DB7P,DM0S..(PUE,USA)..(A,B,C,F,G,K) |
1 | ||
| 84970-WB002 |
DB7P,DD1B..BASE..PUE |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO.16 OF22(1506-1808)

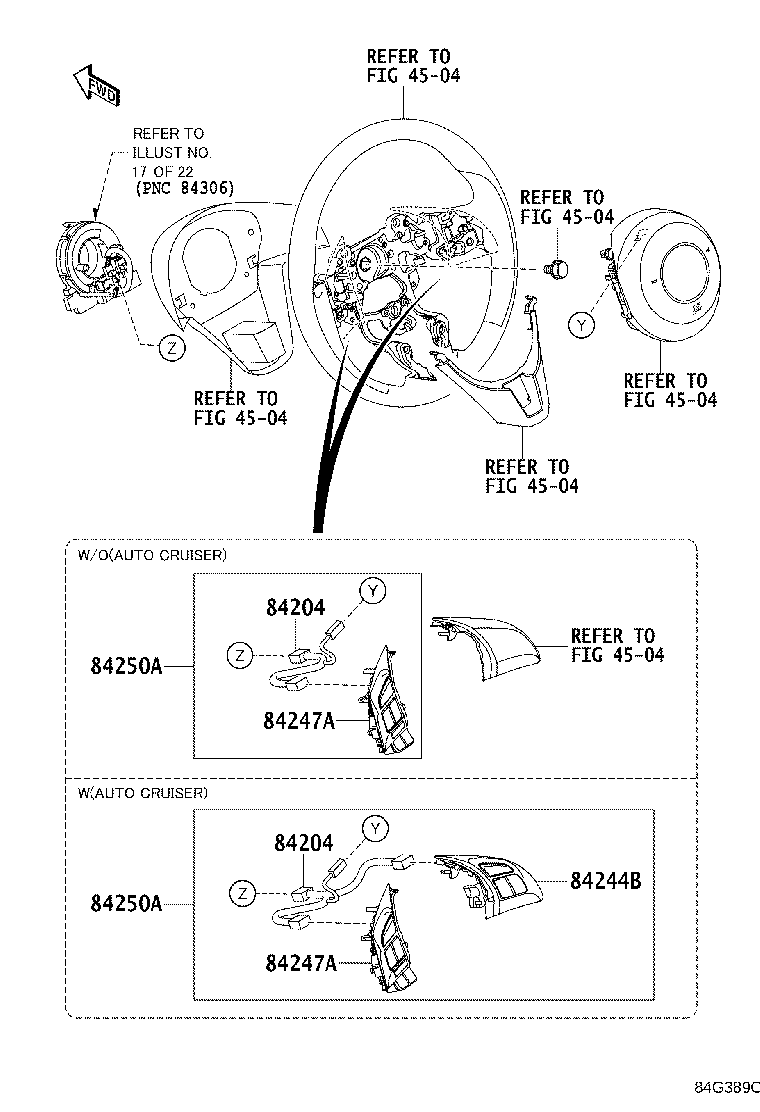

STEERING(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84204 - CABLE SUB-ASSY, STEERING PAD SWITCH | ||||
| 84204-WB002 |
DB7P,DD1B,DM0S,0T..BASE..PUE |
1 | ||
| 84204-WB003 |
DD1B,DM0S..CND,USA;DB7P,DM0T..A,B,C,D,F,G,H,J,K |
1 | ||
| 84204 - CABLE SUB-ASSY, STEERING PAD SWITCH | ||||
| 84204-WB002 |
DB7P,DD1B,DM0S,0T..BASE..PUE |
1 | ||
| 84204-WB003 |
DD1B,DM0S..CND,USA;DB7P,DM0T..A,B,C,D,F,G,H,J,K |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-WB001 |
DD1B,DM0S..CND,USA;DB7P,DM0T..A,B,C,D,F,G,H,J,K |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-WB003 |
DD1B,DM0S..CND,USA;DB7P,DM0T..A,B,C,D,F,G,H,J,K |
1 | ||
| 84250-WB002 |
DB7P,DD1B,DM0S,0T..BASE..PUE |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-WB003 |
DD1B,DM0S..CND,USA;DB7P,DM0T..A,B,C,D,F,G,H,J,K |
1 | ||
| 84250-WB002 |
DB7P,DD1B,DM0S,0T..BASE..PUE |
1 | ||
| Linked diagrams | ||||
| 4504 | ||||

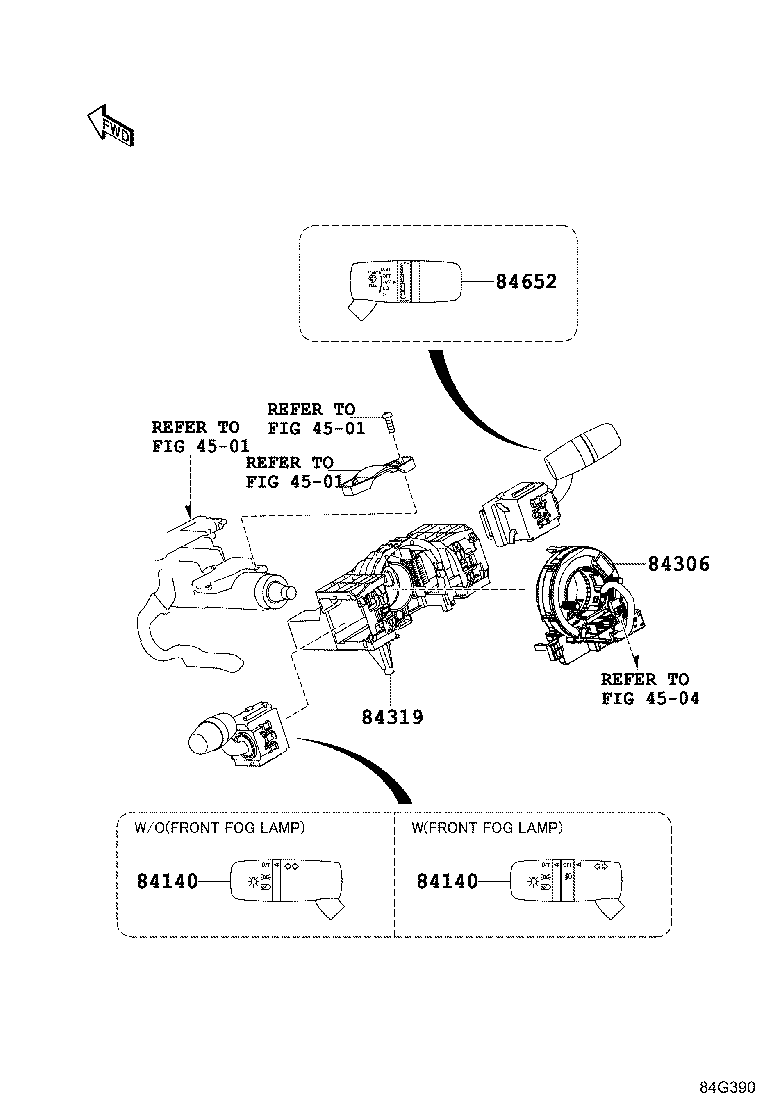

ILLUST NO.17 OF22(1506-1808)
STEERING(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-WB001 |
DB7P,DD1B..PUE |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-WB005 |
DB7P,DD1B |
1 | ||
| 84652 - KNOB, WINDSHIELD WIPER SWITCH (FOR WASHER) | ||||
| 84652-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||

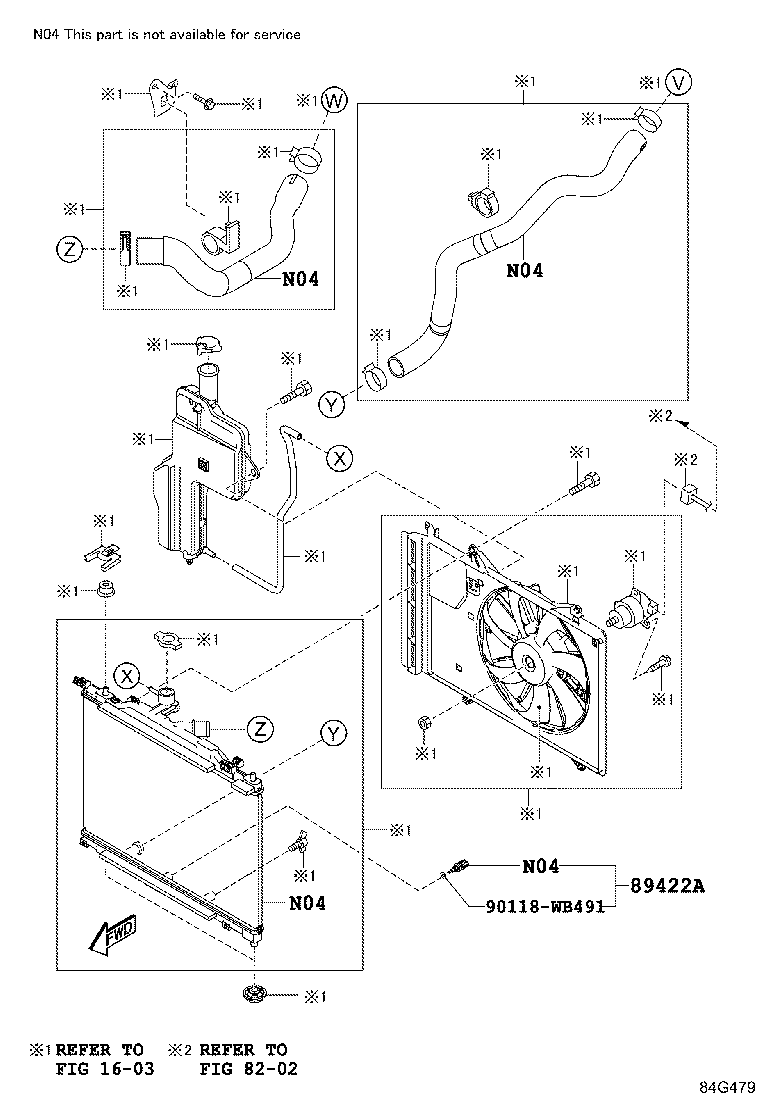

ILLUST NO. 1 OF22(1506-1808)DB7P,DD1B,DM0S,0T
ENGINE & TRANSMISSION(1/4)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB491 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
