DB7P-NAL (2016)
Toyota Scion Ia/Yaris R/Ia
ILLUST NO. 1 OF12(1506-1808)

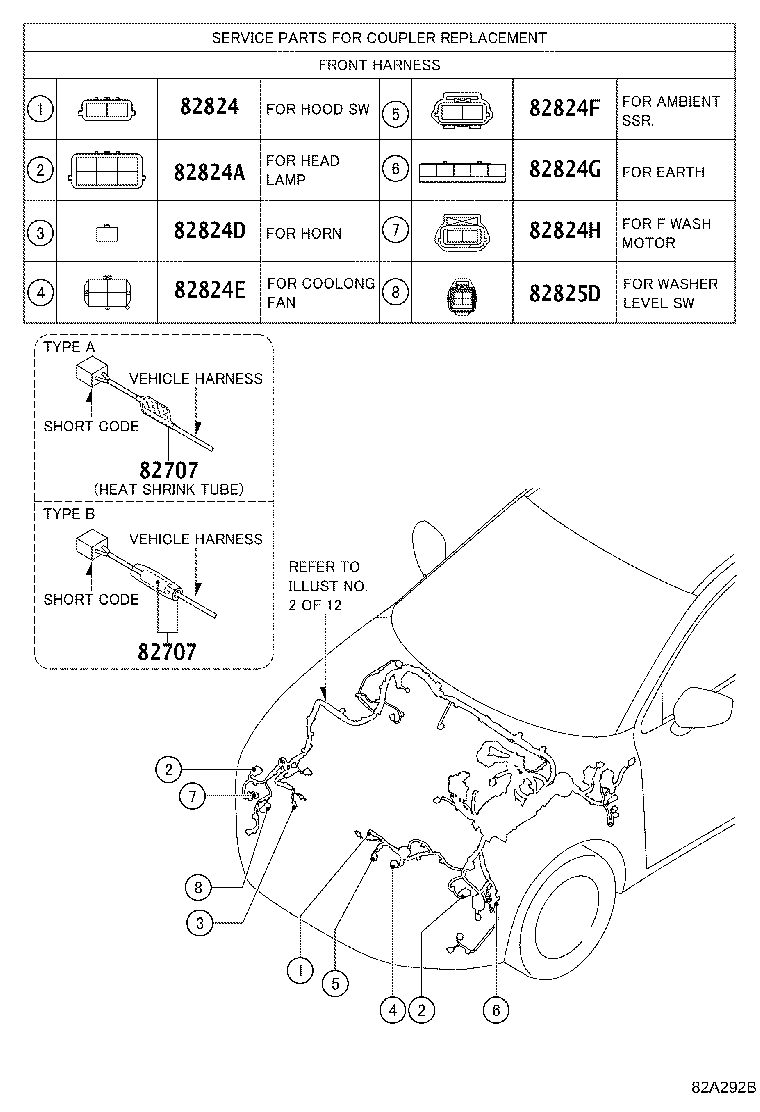

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 90118-WB830 |
DB7P,DD1B,DM0S,0T D=8.0,TYPE A |
1 | ||
| 90118-WB829 |
DB7P,DD1B,DM0S,0T D=4.0,TYPE A |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 90118-WB830 |
DB7P,DD1B,DM0S,0T D=8.0,TYPE A |
1 | ||
| 90118-WB829 |
DB7P,DD1B,DM0S,0T D=4.0,TYPE A |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB765 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB764 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB716 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB729 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB717 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB745 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB713 |
DB7P,DD1B,DM0S,0T |
1 | ||

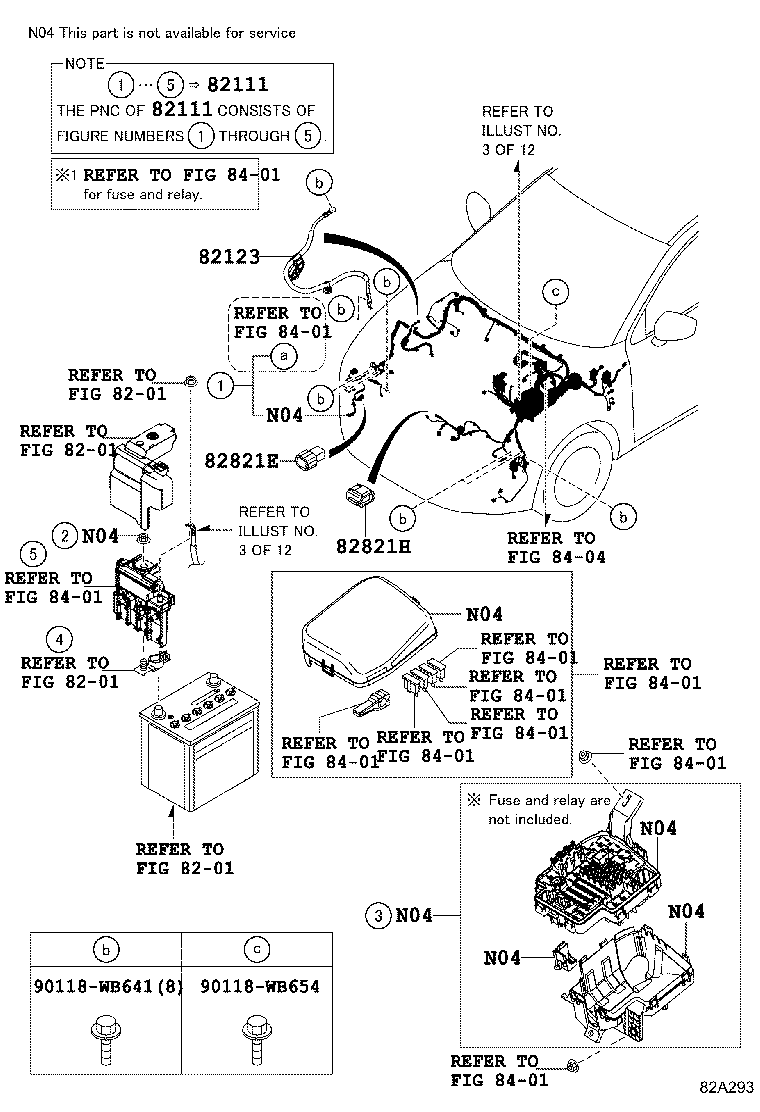

ILLUST NO. 2 OF12(1506-1808)
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-WB008 |
DB7P |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-WB008 |
DB7P |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-WB001 |
DB7P,DD1B,DM0S,0T..PUE |
1 | ||
| Common parts | ||||
| 90118-WB641 | ||||
| 90118-WB654 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
| 8404 | ||||

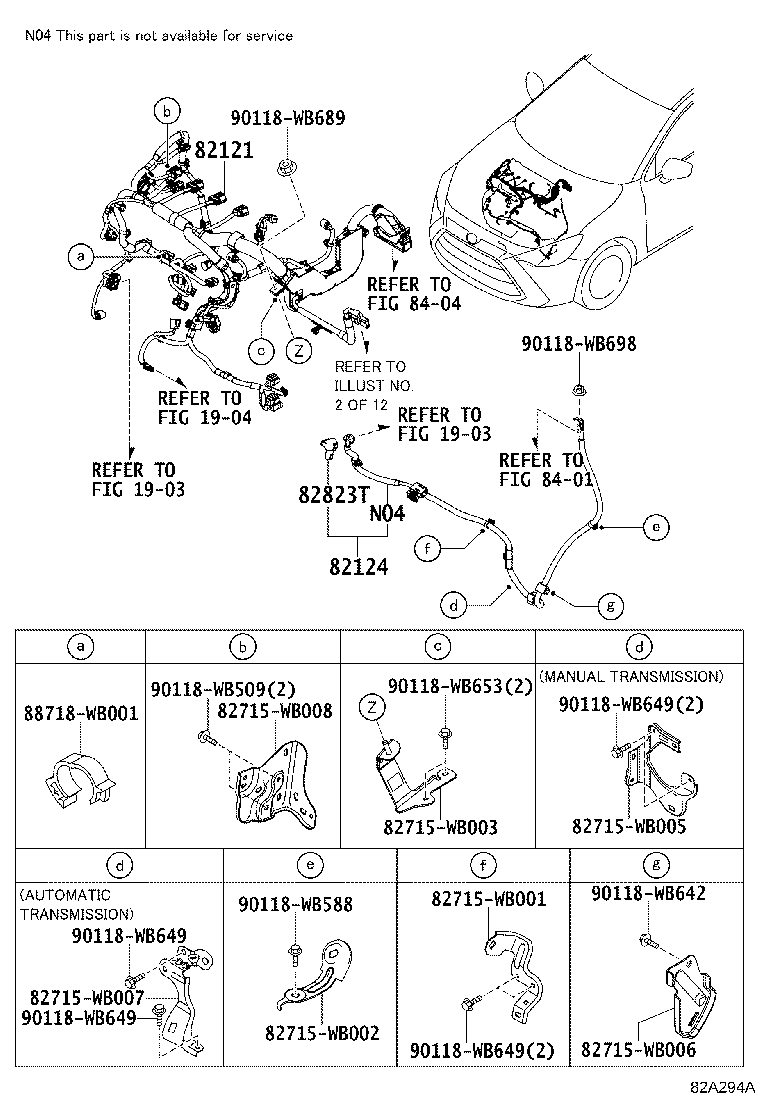

ILLUST NO. 3 OF12(1506-1802)
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-WB001 |
DB7P,DM0T |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-WB002 |
DB7P,DM0T |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| Common parts | ||||
| 82715-WB001 | ||||
| 82715-WB002 | ||||
| 82715-WB003 | ||||
| 82715-WB005 | ||||
| 82715-WB006 | ||||
| 82715-WB007 | ||||
| 82715-WB008 | ||||
| 88718-WB001 | ||||
| 90118-WB509 | ||||
| 90118-WB588 | ||||
| 90118-WB642 | ||||
| 90118-WB649 | ||||
| 90118-WB653 | ||||
| 90118-WB689 | ||||
| 90118-WB698 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 1904 | ||||
| 8401 | ||||
| 8404 | ||||
ILLUST NO. 4 OF12(1506-1808)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-WB009 |
DB7P,DD1B..BASE..PUE |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-WB009 |
DB7P,DD1B..BASE..PUE |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB748 |
DB7P,DD1B,DM0S,0T |
2 | ||
| Common parts | ||||
| 90118-WB641 | ||||
ILLUST NO. 5 OF12(1506-1808)

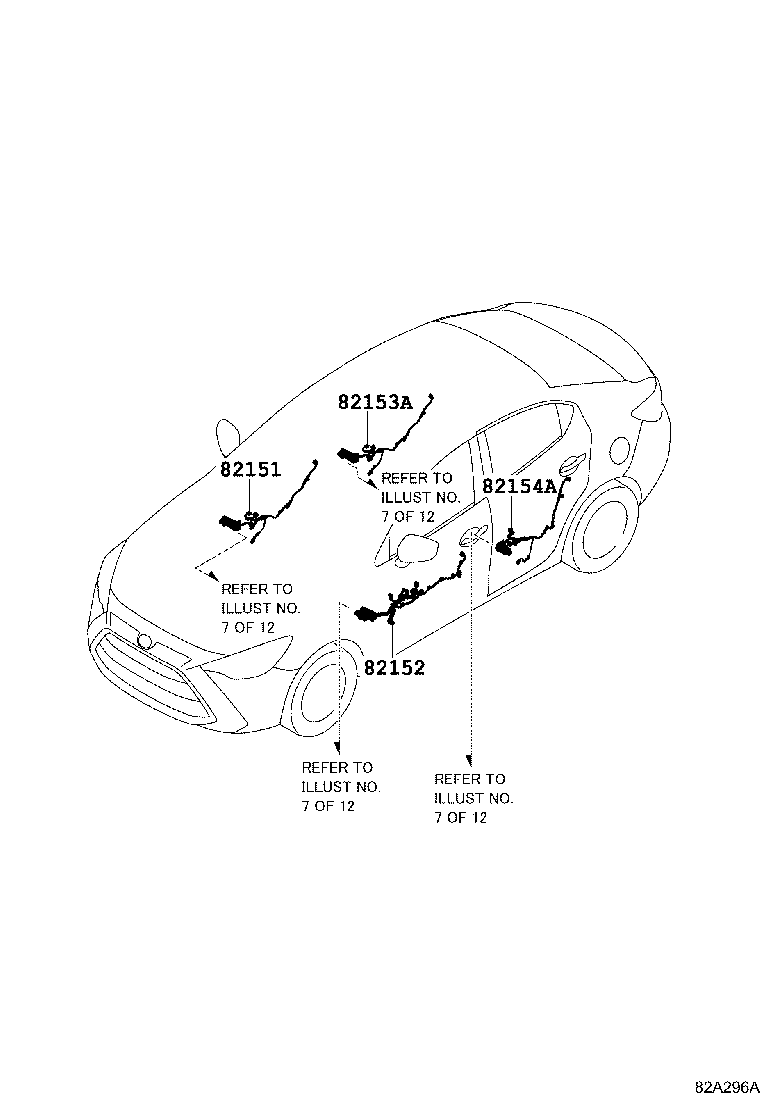

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-WB004 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-WB004 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||

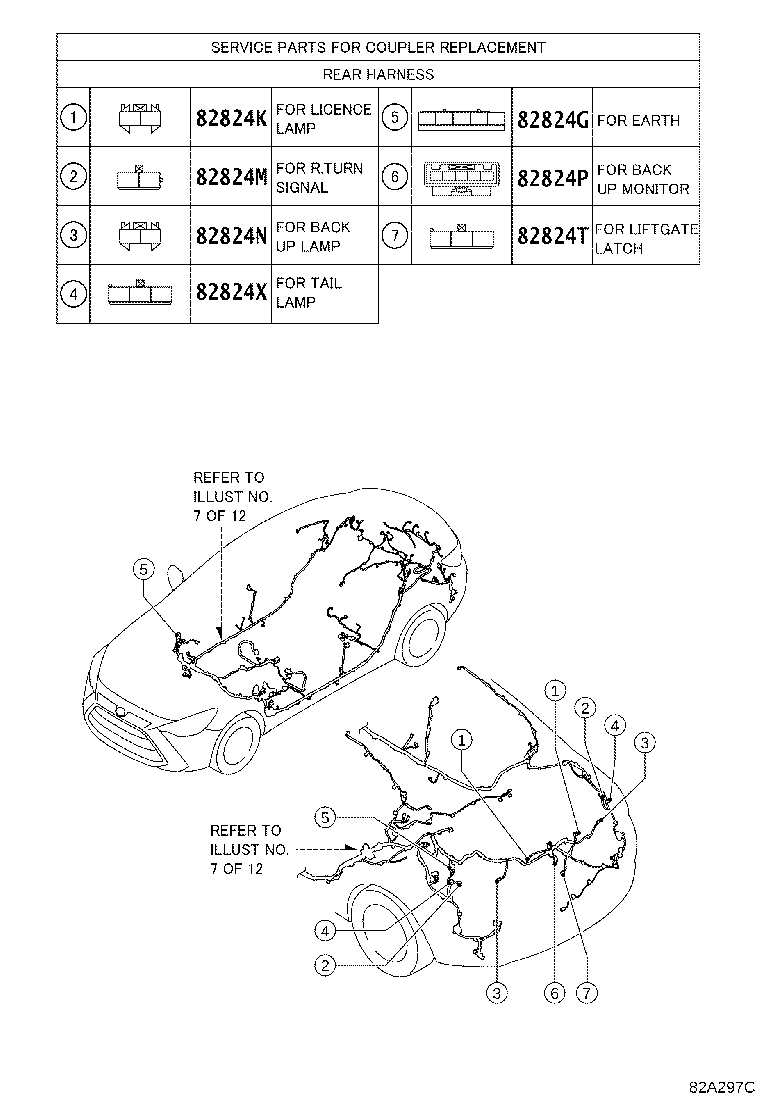

ILLUST NO. 6 OF12(1506-1808)
FLOOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB745 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB728 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB731 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB728 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB712 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB730 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 82824X - CONNECTOR, WIRING HARNESS | ||||
| 90118-WB730 |
DB7P,DD1B,DM0S,0T |
2 | ||
ILLUST NO. 7 OF12(1506-1808)

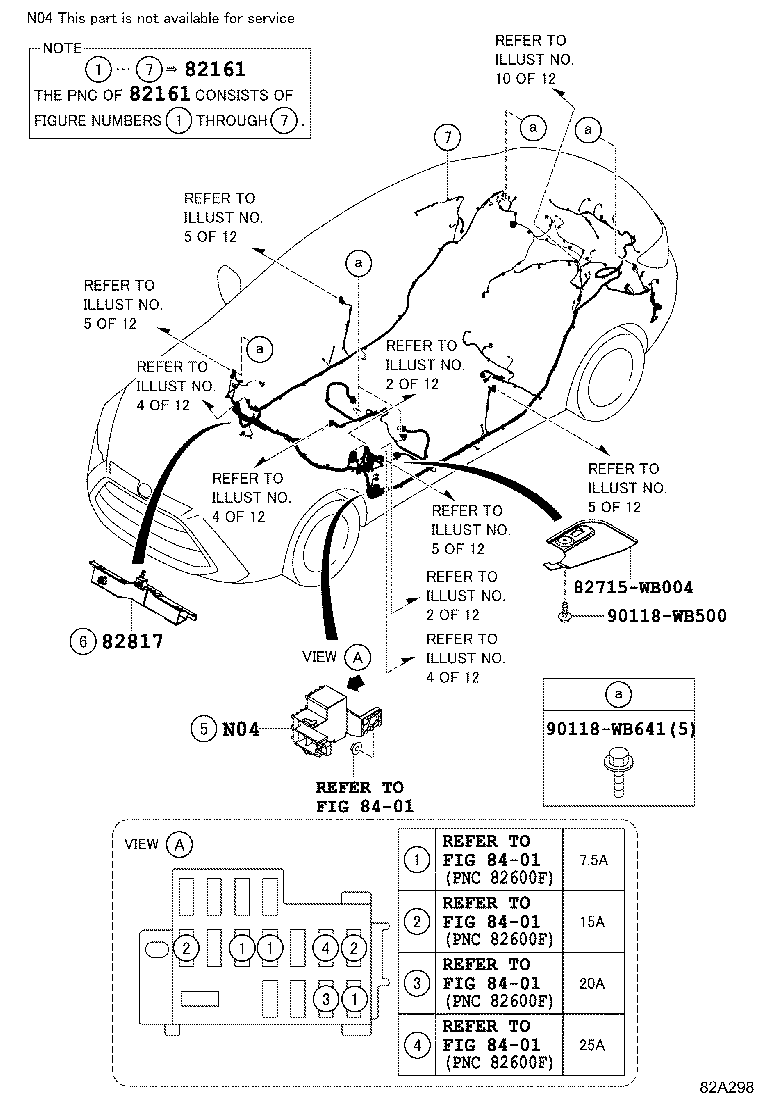

FLOOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-WB011 |
DB7P,DD1B..D,G,H,K |
1 | ||
| 82161-WB001 |
DB7P,DD1B..BASE..(CND,PUE) |
1 | ||
| 82161-WB002 |
DD1B..USA;DB7P..B,D,F,G,H,K |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-WB011 |
DB7P,DD1B..D,G,H,K |
1 | ||
| 82161-WB001 |
DB7P,DD1B..BASE..(CND,PUE) |
1 | ||
| 82161-WB002 |
DD1B..USA;DB7P..B,D,F,G,H,K |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 90118-WB708 |
DB7P,DD1B,DM0S,0T |
1 | ||
| Common parts | ||||
| 82715-WB004 | ||||
| 90118-WB500 | ||||
| 90118-WB641 | ||||
| Linked diagrams | ||||
| 8401 | ||||

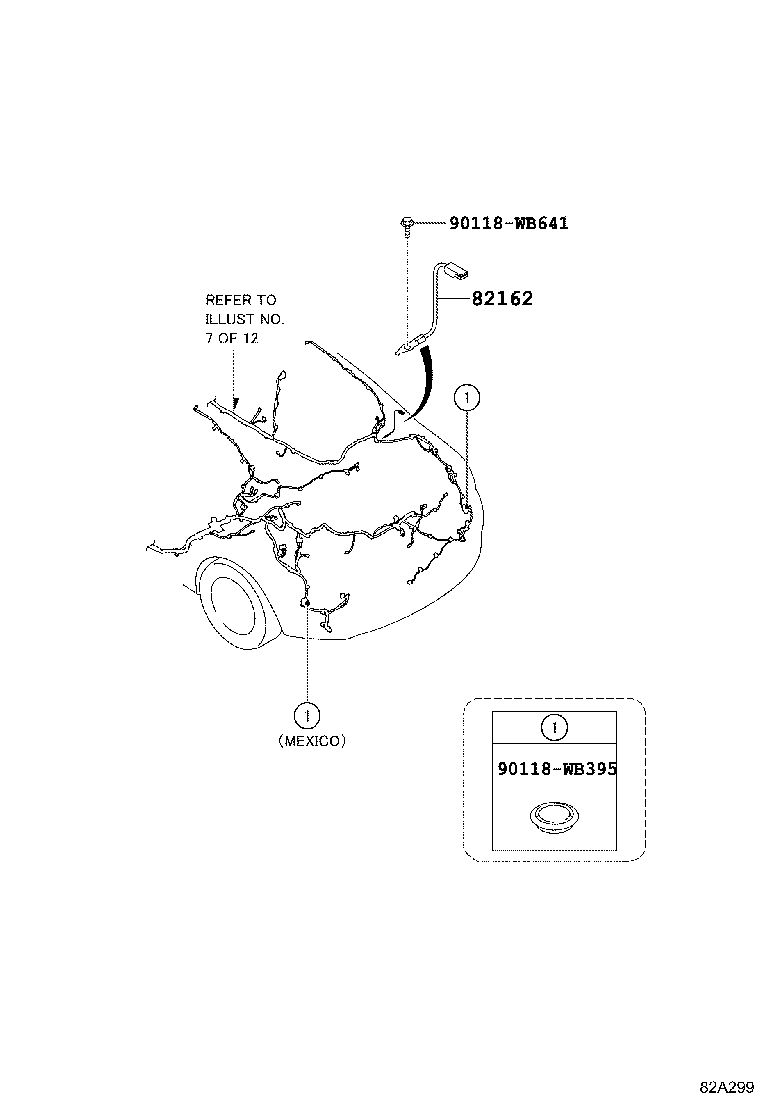

ILLUST NO. 8 OF12(1506-1808)
FLOOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82142-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB395 | ||||
| 90118-WB641 | ||||

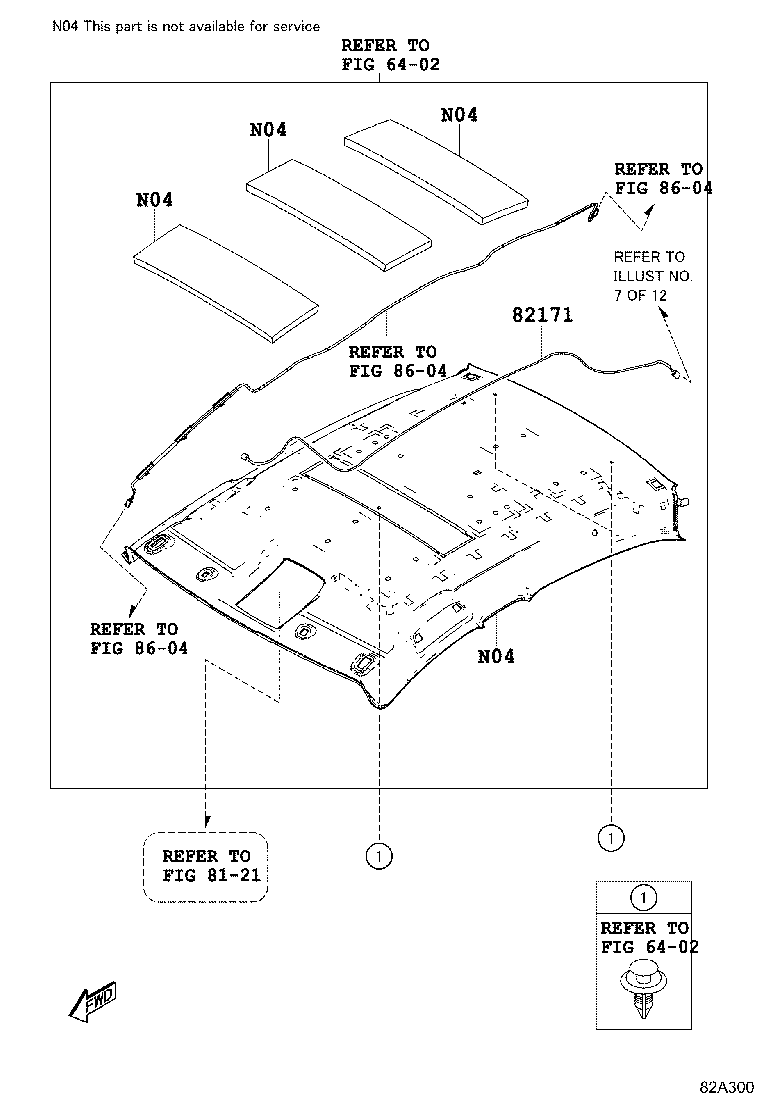

ILLUST NO. 9 OF12(1506-1808)
ROOF 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 6402 | ||||
| 8121 | ||||
| 8604 | ||||

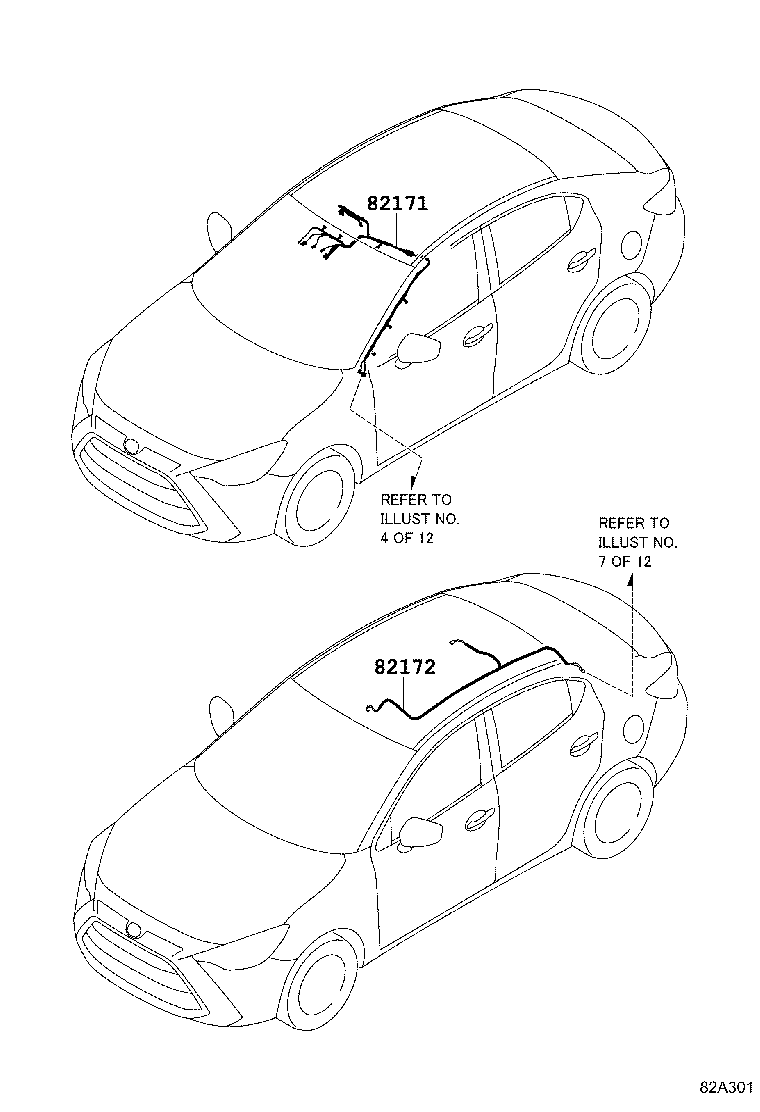

ILLUST NO.10 OF12(1506-1808)
ROOF 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82171-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||

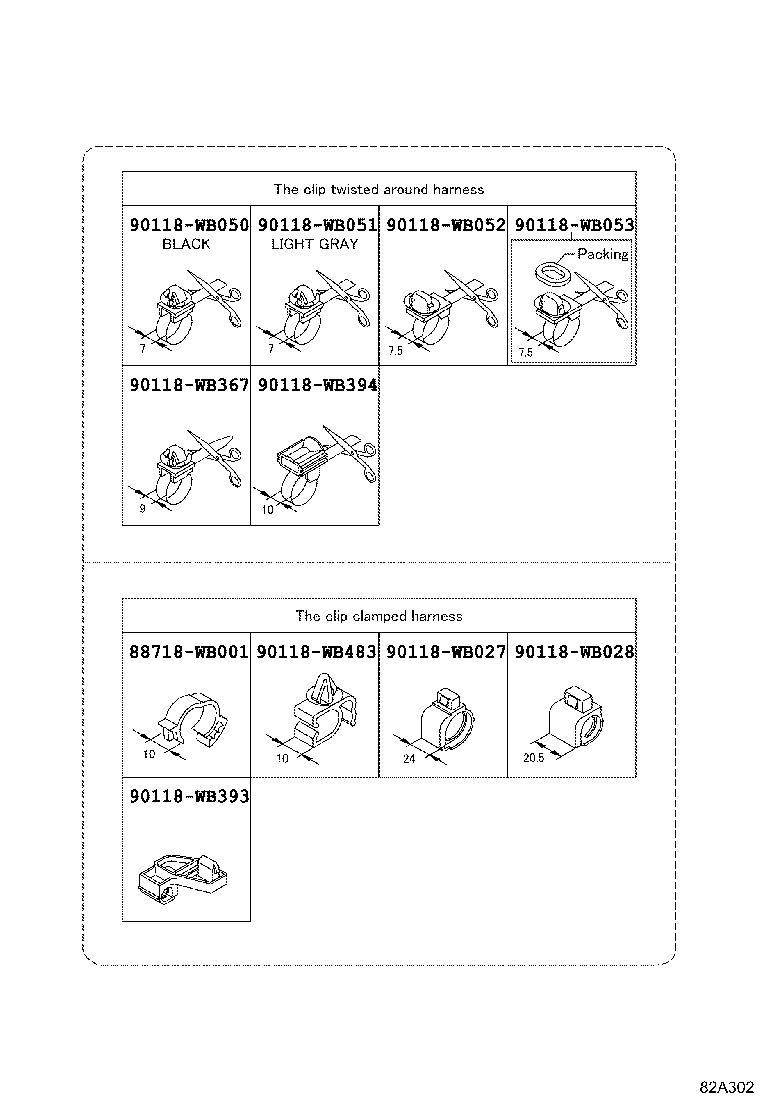

ILLUST NO.11 OF12(1506-1708)
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-WB001 | ||||
| 90118-WB027 | ||||
| 90118-WB028 | ||||
| 90118-WB050 | ||||
| 90118-WB051 | ||||
| 90118-WB052 | ||||
| 90118-WB053 | ||||
| 90118-WB367 | ||||
| 90118-WB393 | ||||
| 90118-WB394 | ||||
| 90118-WB483 | ||||

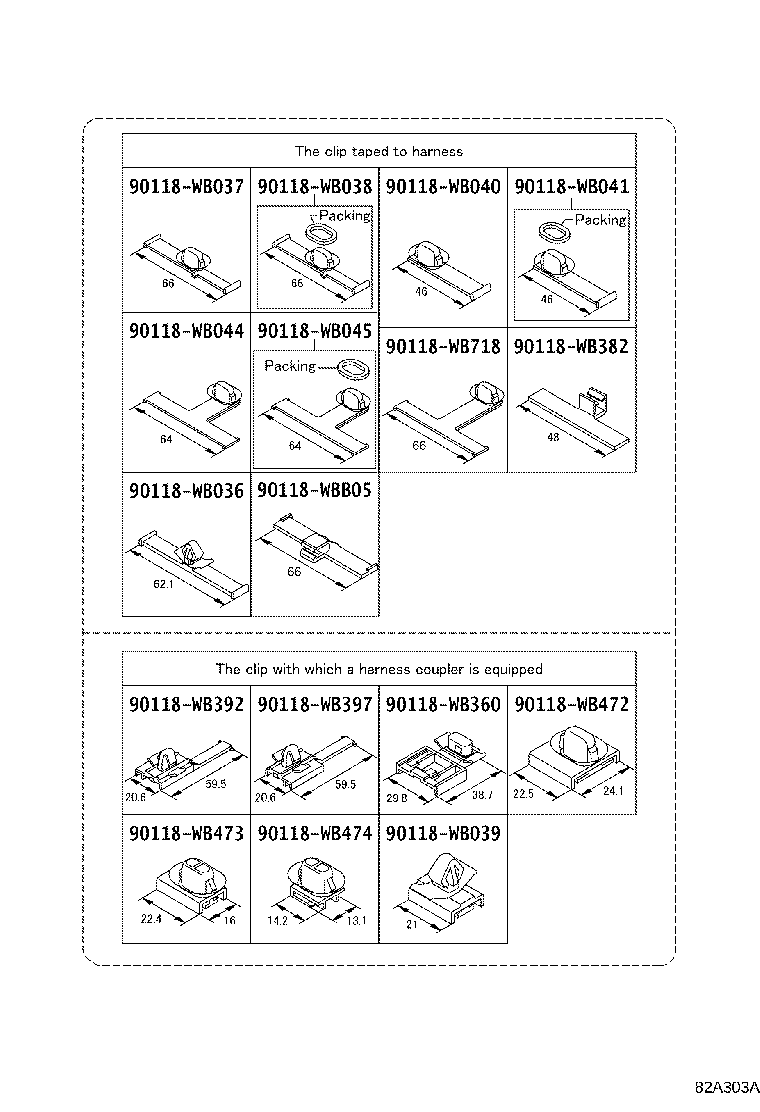

ILLUST NO.12 OF12(1506-1808)
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90118-WB036 | ||||
| 90118-WB037 | ||||
| 90118-WB038 | ||||
| 90118-WB039 | ||||
| 90118-WB040 | ||||
| 90118-WB041 | ||||
| 90118-WB044 | ||||
| 90118-WB045 | ||||
| 90118-WB360 | ||||
| 90118-WB382 | ||||
| 90118-WB392 | ||||
| 90118-WB397 | ||||
| 90118-WB472 | ||||
| 90118-WB473 | ||||
| 90118-WB474 | ||||
| 90118-WB718 | ||||
| 90118-WBB05 | ||||
