DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

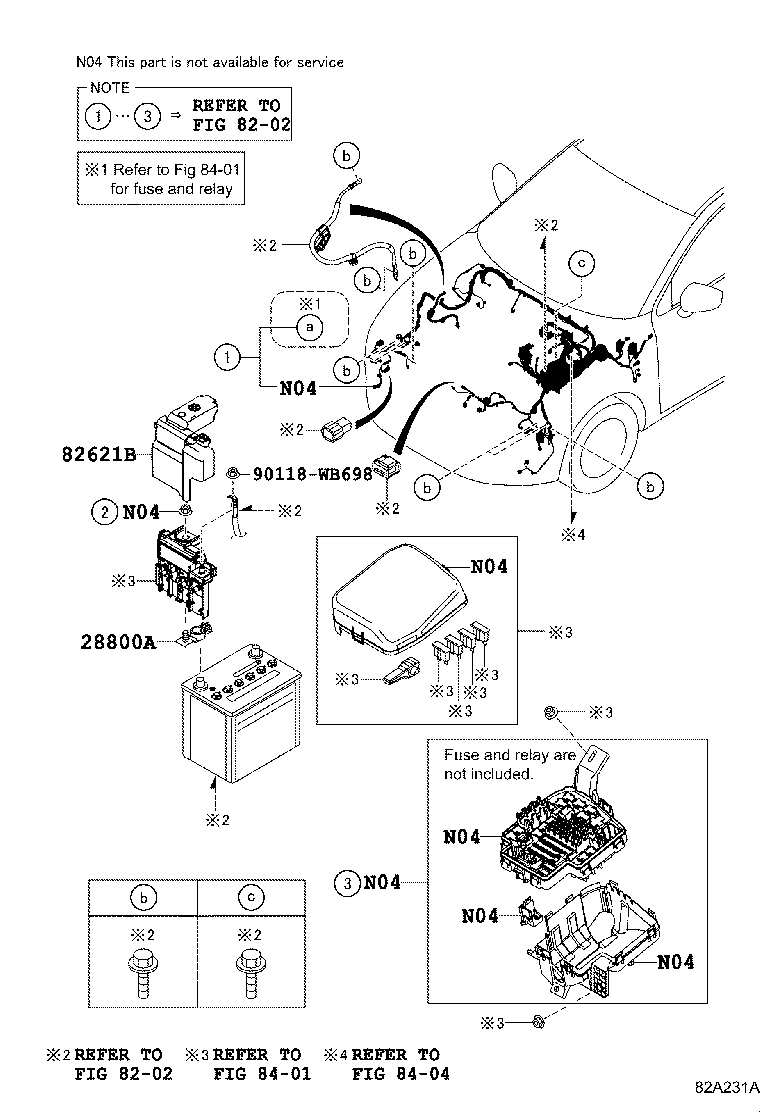

ILLUST NO. 2 OF 2(1506-1908)

Click highlighted areas on diagram

diagram 28800A 8202 8202 82621B 8401 8404 90118WB698
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90118-WB091

P5..DB7P,DD1B,DM0S,0T

 1
82621B - COVER, FUSIBLE LINK
82621-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB698
Linked diagrams
8202
8401
8404
