DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

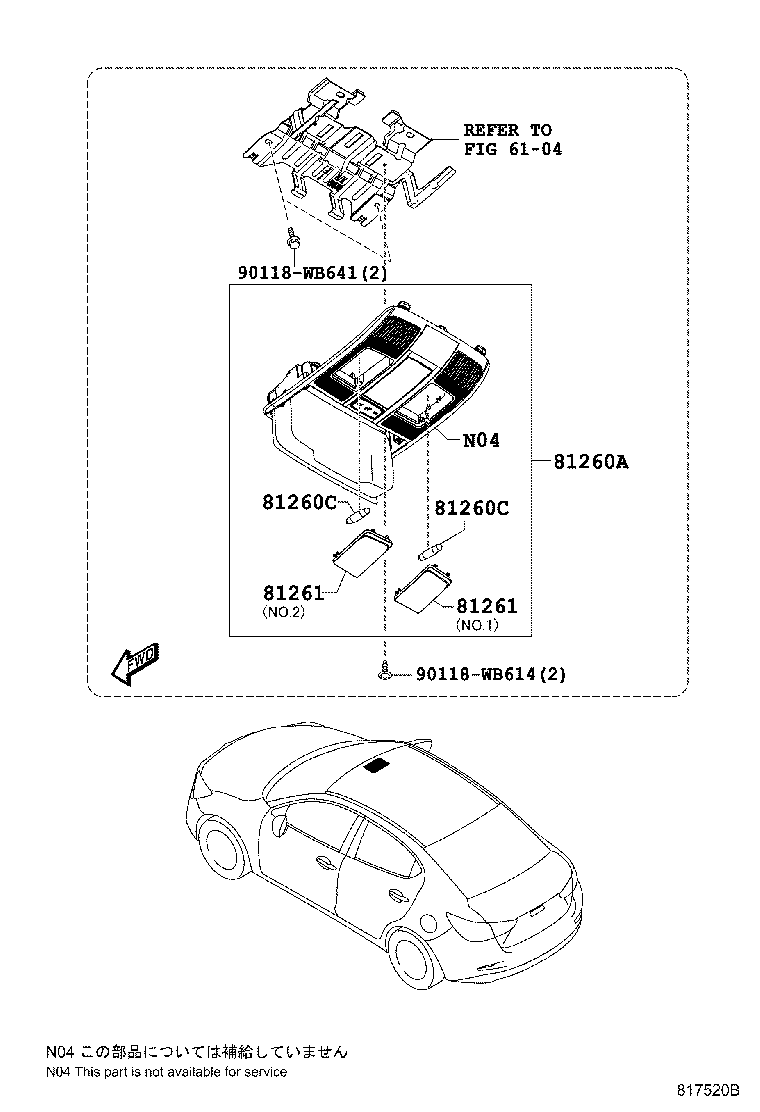

ILLUST NO. 1 OF 2(1506-1908)

Click highlighted areas on diagram

diagram 6104 81260A 81260C 81260C 81261 81261 90118WB614 90118WB641
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81260-WB001

DB7P,DD1B,DM0S,0T

TINTED TOP,TRIM70,80

 1
81260C - BULB(FOR MAP LAMP)
90118-WB706

DB7P,DD1B,DM0S,0T

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90118-WB706

DB7P,DD1B,DM0S,0T

12V 8W

 2
81261 - LENS AND COVER, MAP LAMP
81391-WB001

DB7P,DD1B,DM0S,0T

NO.1

 1
81391-WB002

DB7P,DD1B,DM0S,0T

NO.2

 1
81261 - LENS AND COVER, MAP LAMP
81391-WB001

DB7P,DD1B,DM0S,0T

NO.1

 1
81391-WB002

DB7P,DD1B,DM0S,0T

NO.2

 1
Common parts
90118-WB614
90118-WB641
Linked diagrams
6104

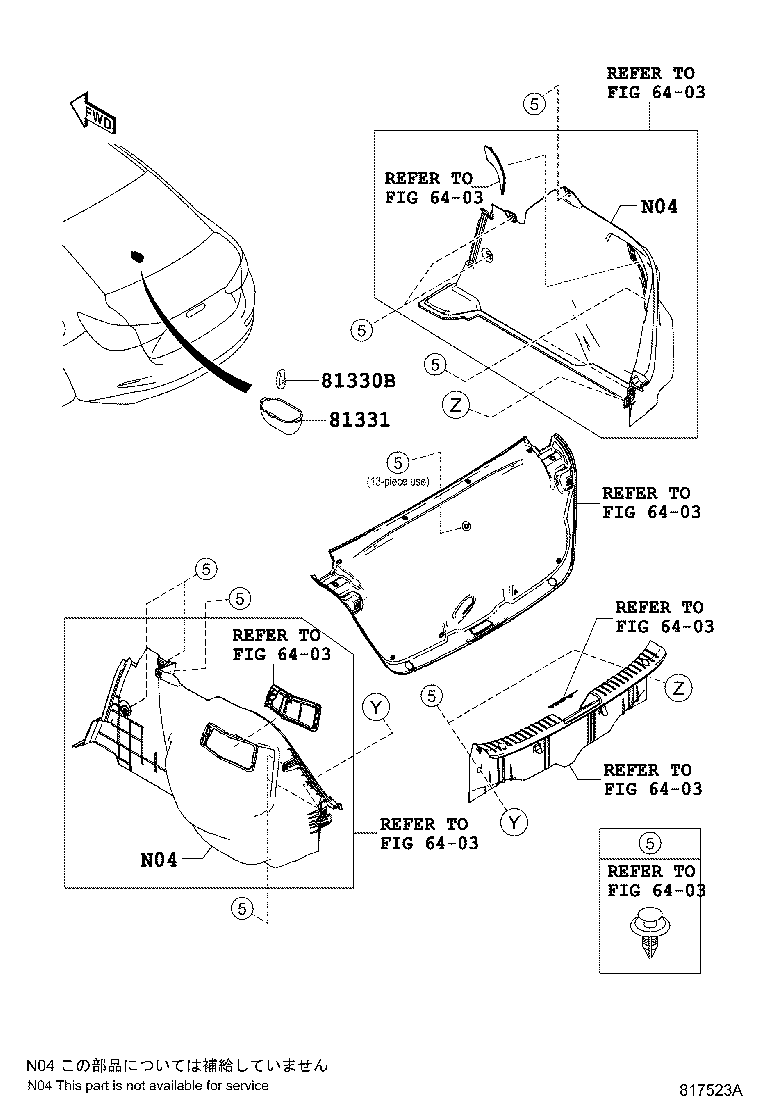

ILLUST NO. 2 OF 2(1506-1908) ; (1908- )DADW1,DAEA1,DAED1,DAEE1

Click highlighted areas on diagram

diagram 6403 6403 6403 6403 6403 6403 6403 6403 81330B 81331
Part # Description Qty Price
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90118-WB739

DB7P,DD1B,DM0S,0T

14V 3W

 1
81331 - LENS, LUGGAGE COMPARTMENT LAMP
81331-WB001

DB7P,DD1B,DM0S,0T

 1
Linked diagrams
6403
