DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1908) ; (1908- )DADW1,DAEA1,DAED1,DAEE1

Click highlighted areas on diagram

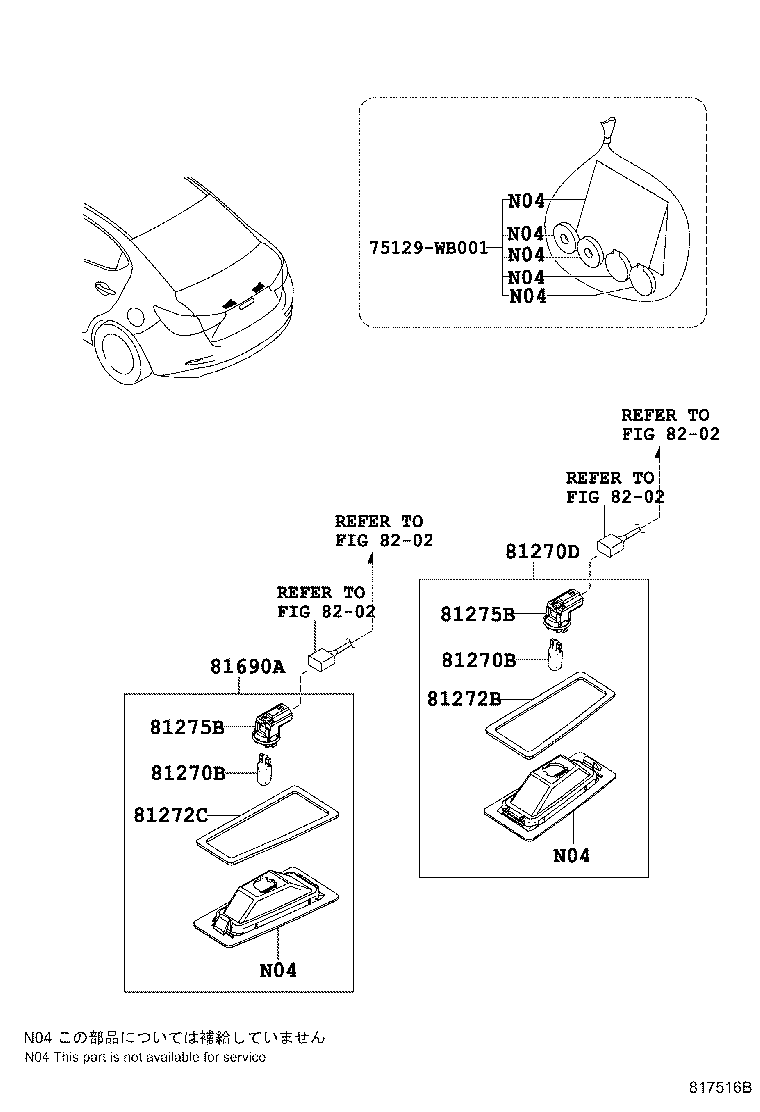

diagram 75129WB001 81270B 81270B 81270D 81272B 81272C 81275B 81275B 81690A 8202 8202 8202 8202
Part # Description Qty Price
81270B - BULB (FOR LICENSE PLATE LAMP)
90118-WB808

DB7P,DD1B,DM0S,0T

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90118-WB808

DB7P,DD1B,DM0S,0T

12V 5W

 2
81270D - LAMP ASSY, LICENSE PLATE, RH
81270-WB001

DB7P,DD1B,DM0S,0T

 1
81272B - GASKET, LICENSE PLATE LAMP LENS, RH
81274-WB001

DB7P,DD1B,DM0S,0T

 1
81272C - GASKET, LICENSE PLATE LAMP LENS, LH
81274-WB002

DB7P,DD1B,DM0S,0T

 1
81275B - SOCKET PLUG, LICENSE PLATE LAMP
81275-WB001

DB7P,DD1B,DM0S,0T

 2
81275B - SOCKET PLUG, LICENSE PLATE LAMP
81275-WB001

DB7P,DD1B,DM0S,0T

 2
81690A - LAMP ASSY, LICENSE PLATE, LH
81270-WB002

DB7P,DD1B,DM0S,0T

 1
Common parts
75129-WB001
Linked diagrams
8202
