DB7P-NAL (2016)
Toyota Scion Ia/Yaris R/Ia

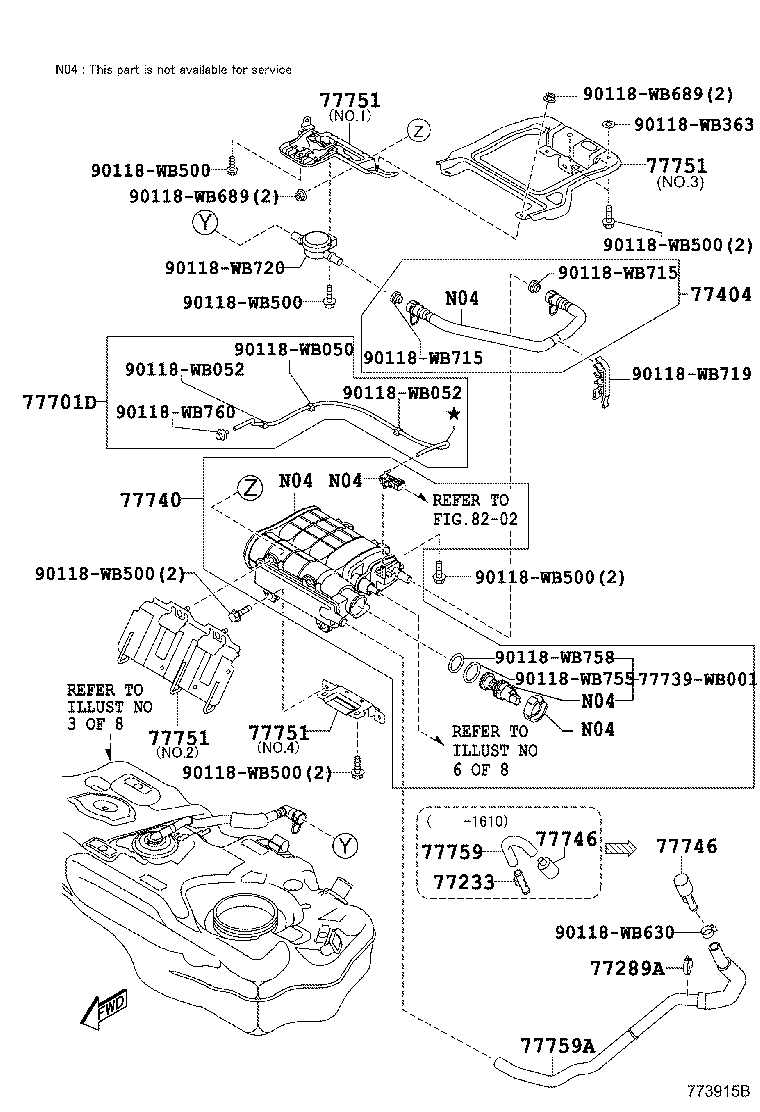

ILLUST NO. 1 OF 8(1506-1808)DB7P,DD1B,DM0S,0T
FUEL TANK(USA & CANADA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77233 - JOINT, FUEL HOSE | ||||
| 77233-WB001 |
DB7P,DD1B |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-WB003 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77404-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DDF4,5 |
1 | ||
| 77701D - HOSE, FUEL(FOR CHARCOAL CANISTER) | ||||
| 77701-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77746 - FILTER, CHARCOAL CANISTER, NO.2 | ||||
| 77746-WB001 |
DB7P,DD1B |
1 | ||
| 77746-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| 77746 - FILTER, CHARCOAL CANISTER, NO.2 | ||||
| 77746-WB001 |
DB7P,DD1B |
1 | ||
| 77746-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.3:REFER ILLUST. |
1 | ||
| 77751-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.1:REFER ILLUST. |
1 | ||
| 77751-WB004 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.4:REFER ILLUST. |
1 | ||
| 77751-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.2:REFER ILLUST. |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.3:REFER ILLUST. |
1 | ||
| 77751-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.1:REFER ILLUST. |
1 | ||
| 77751-WB004 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.4:REFER ILLUST. |
1 | ||
| 77751-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.2:REFER ILLUST. |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.3:REFER ILLUST. |
1 | ||
| 77751-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.1:REFER ILLUST. |
1 | ||
| 77751-WB004 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.4:REFER ILLUST. |
1 | ||
| 77751-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.2:REFER ILLUST. |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.3:REFER ILLUST. |
1 | ||
| 77751-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.1:REFER ILLUST. |
1 | ||
| 77751-WB004 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.4:REFER ILLUST. |
1 | ||
| 77751-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T NO.2:REFER ILLUST. |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-WB001 |
DB7P,DD1B |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 77759-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| Common parts | ||||
| 77739-WB001 | ||||
| 90118-WB050 | ||||
| 90118-WB052 | ||||
| 90118-WB363 | ||||
| 90118-WB500 | ||||
| 90118-WB630 | ||||
| 90118-WB689 | ||||
| 90118-WB715 | ||||
| 90118-WB719 | ||||
| 90118-WB720 | ||||
| 90118-WB755 | ||||
| 90118-WB758 | ||||
| 90118-WB760 | ||||

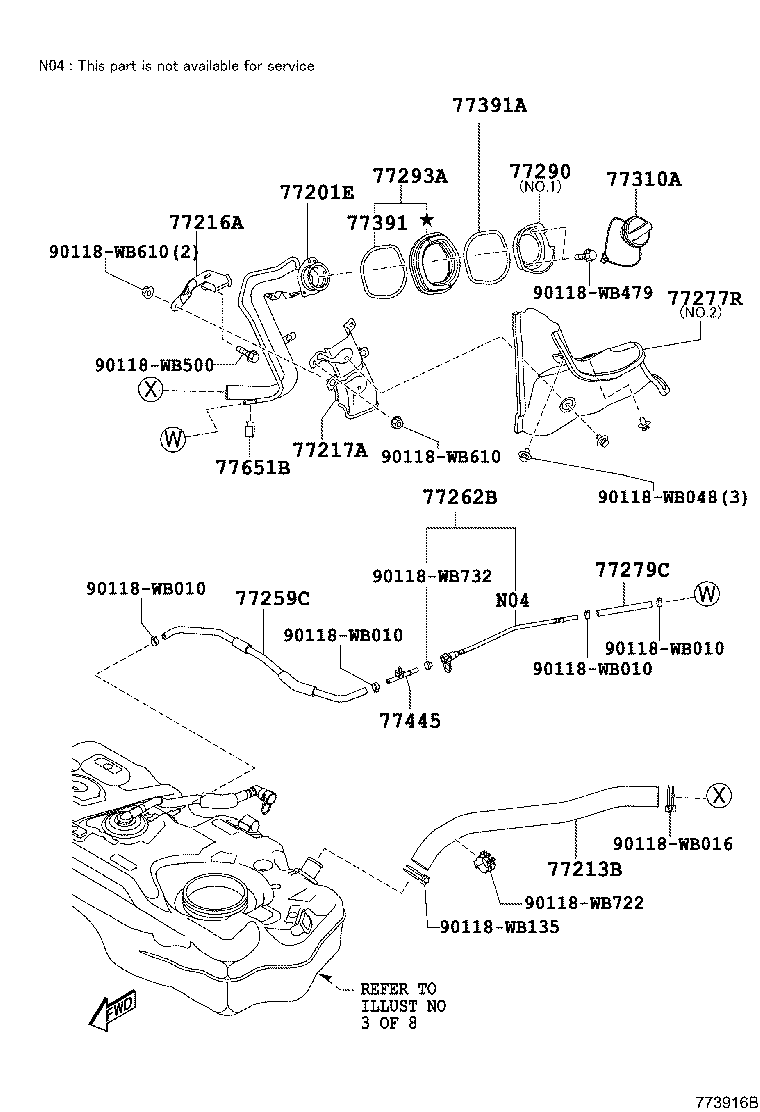

ILLUST NO. 2 OF 8(1506-1610)DB7P,DD1B
FUEL TANK(USA & CANADA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77262-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 77269-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77445 - CONNECTOR, FUEL TANK VENT, NO.2 | ||||
| 77445-WB002 |
DB7P,DD1B |
1 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB010 | ||||
| 90118-WB016 | ||||
| 90118-WB048 | ||||
| 90118-WB135 | ||||
| 90118-WB479 | ||||
| 90118-WB500 | ||||
| 90118-WB610 | ||||
| 90118-WB722 | ||||
| 90118-WB732 | ||||

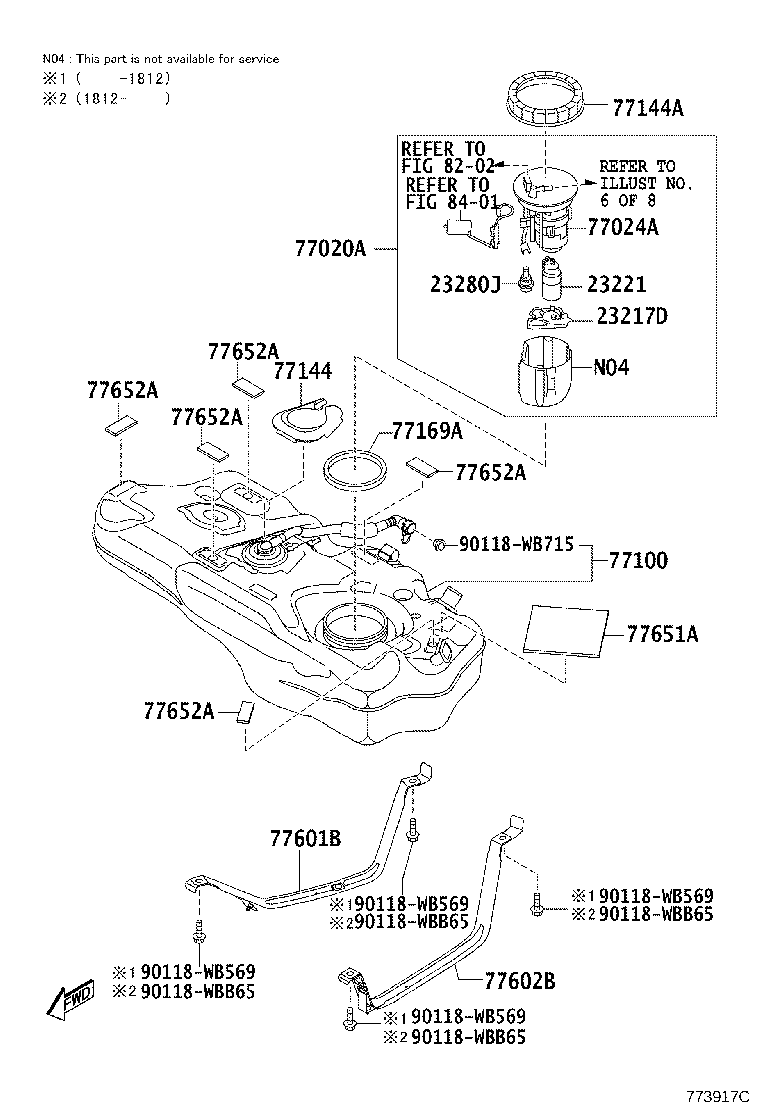

ILLUST NO. 3 OF 8(1506-1908)DB7P,DD1B,F4,F5,DM0S,0T
FUEL TANK(USA & CANADA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-WB001 |
P5..DB7P,DD1B,DM0S,0T |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-WB002 |
P5..DB7P,DD1B,DM0S,0T |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-WB001 |
P5..DB7P,DD1B,DM0S,0T |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77144A - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77601-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-WB001 |
DB7P,DD1B,DM0S,0T |
5 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-WB001 |
DB7P,DD1B,DM0S,0T |
5 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-WB001 |
DB7P,DD1B,DM0S,0T |
5 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-WB001 |
DB7P,DD1B,DM0S,0T |
5 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-WB001 |
DB7P,DD1B,DM0S,0T |
5 | ||
| Common parts | ||||
| 90118-WB569 | ||||
| 90118-WB715 | ||||
| 90118-WBB65 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

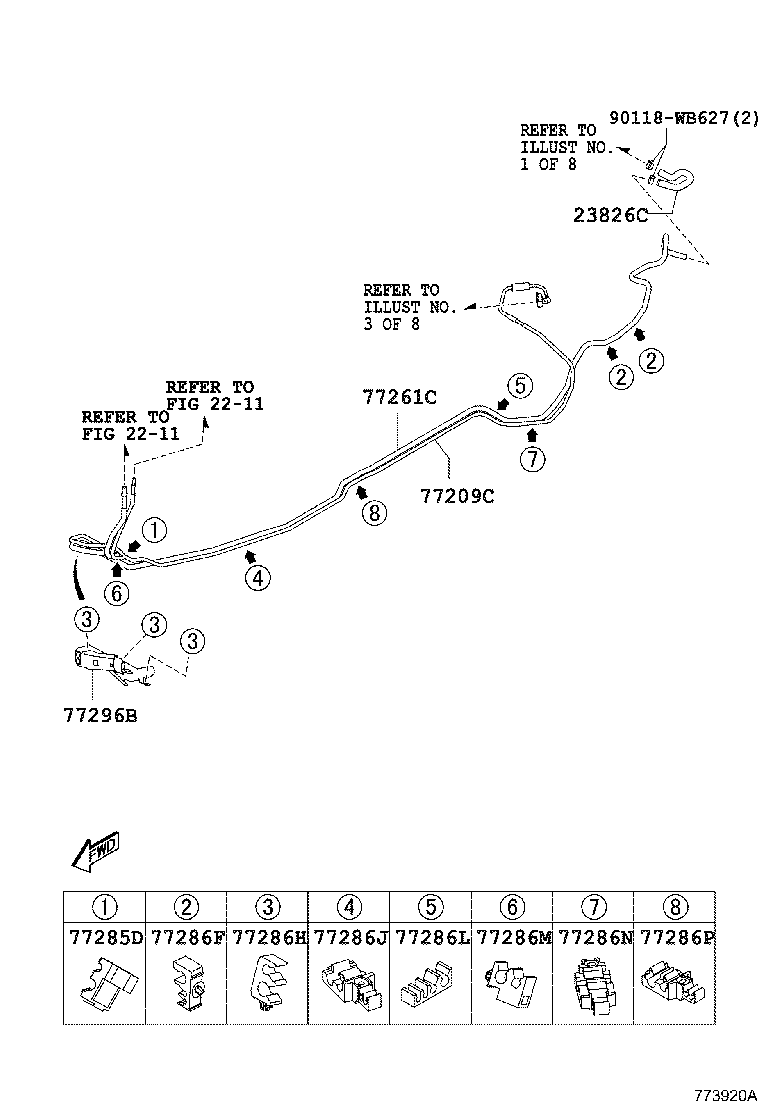

ILLUST NO. 6 OF 8(1506-1808)DB7P,DD1B,DM0S,0T
FUEL TUBE(USA & CANADA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23826C - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23829-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77261C - HOSE, FUEL, NO.3 (FOR FUEL EMISSION TUBE) | ||||
| 77261-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 90118-WB080 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 90118-WB345 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
2 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 90118-WB400 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
3 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 90118-WB346 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77286-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 90118-WB399 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77289-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77289-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB627 | ||||
| Linked diagrams | ||||
| 2211 | ||||

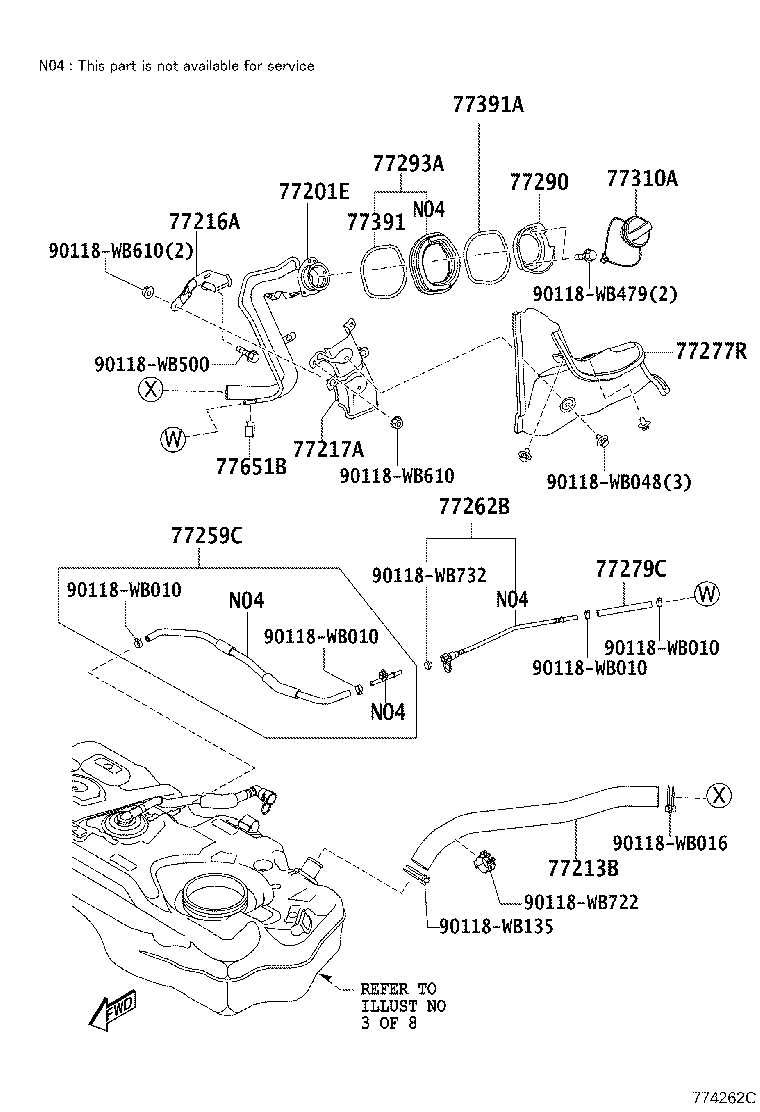

ILLUST NO. 2 OF 8(1610- )DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T
FUEL TANK(USA & CANADA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77262-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 77269-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB010 | ||||
| 90118-WB016 | ||||
| 90118-WB048 | ||||
| 90118-WB135 | ||||
| 90118-WB479 | ||||
| 90118-WB500 | ||||
| 90118-WB610 | ||||
| 90118-WB722 | ||||
| 90118-WB732 | ||||
