DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1808)

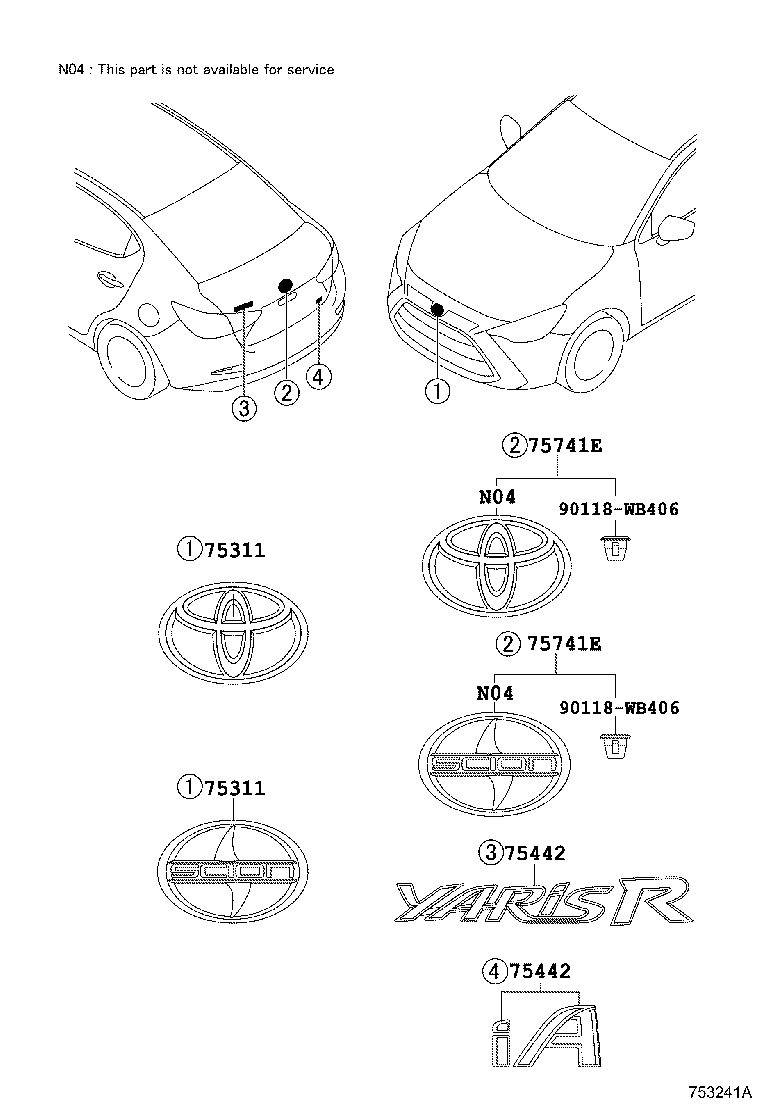

Click highlighted areas on diagram

diagram 75311 75311 75442 75442 75741E 75741E 90118WB406 90118WB406
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

TOYOTA

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

TOYOTA

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-WB002

DB7P,DD1B,DM0S,0T..CND,PUE

YARIS-R

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-WB002

DB7P,DD1B,DM0S,0T..CND,PUE

YARIS-R

 1
75741E - EMBLEM, SYMBOL
90118-WB886

DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 1
75741E - EMBLEM, SYMBOL
90118-WB886

DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 1
Common parts
90118-WB406
