DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1506-1908)

Click highlighted areas on diagram

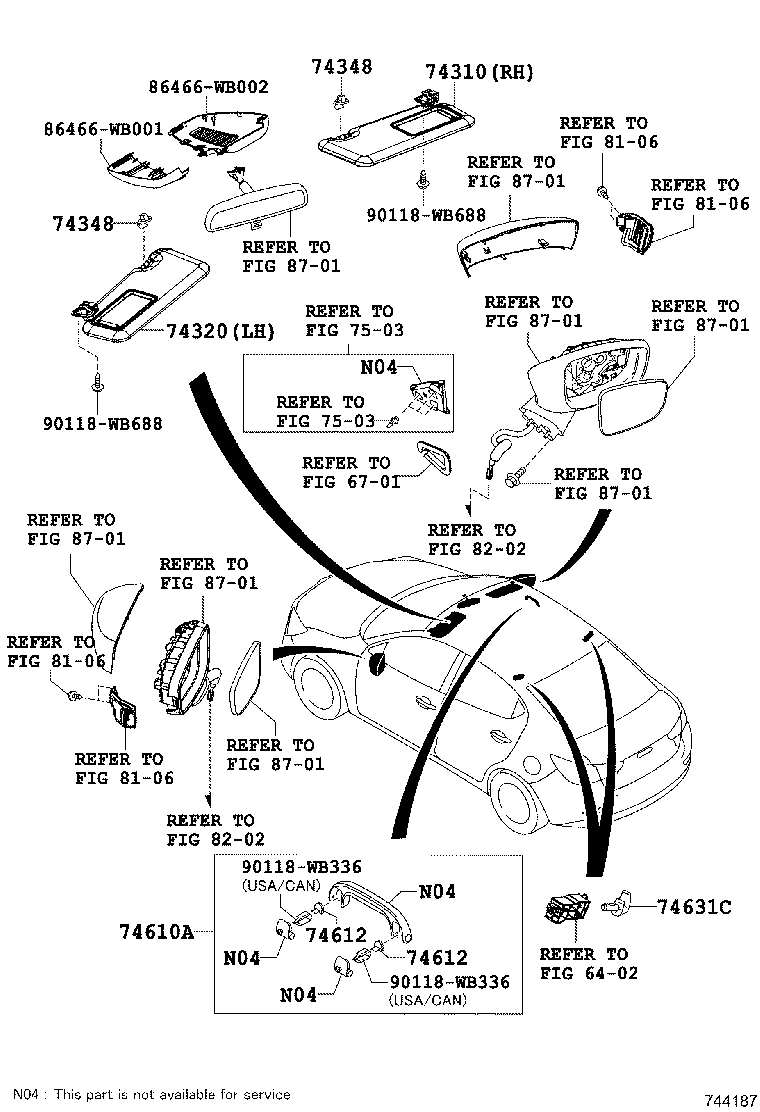

VISOR, ASSIST GRIP

diagram 6402 6701 74310 74320 74348 74348 74610A 74612 74612 74631C 7503 7503 8106 8106 8106 8106 8202 8202 86466WB001 86466WB002 8701 8701 8701 8701 8701 8701 8701 8701 90118WB336 90118WB336 90118WB688 90118WB688
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-WB001

DB7P,DD1B,DM0S,0T..PUE,USA

TINTED TOP,TRIM70,80

 1
74320 - VISOR ASSY, LH
74320-WB001

DB7P,DD1B,DM0S,0T..PUE,USA

TINTED TOP,TRIM70,80

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-WB001

DB7P,DD1B,F#,DM0S,0T

TINTED TOP,TRIM10,20,30,40,70,80

 1
74612 - COVER, ASSIST GRIP
74612-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

TINTED TOP,TRIM10,20,30,40,70,80

 2
74612 - COVER, ASSIST GRIP
74612-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

TINTED TOP,TRIM10,20,30,40,70,80

 2
74631C - HOOK, COAT
74631-WB001

DB7P,DD1B,DM0S,0T

TINTED TOP,TRIM70,80

 2
Common parts
86466-WB001
86466-WB002
90118-WB336
90118-WB688
Linked diagrams
6402
6701
7503
8106
8202
8701
