DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

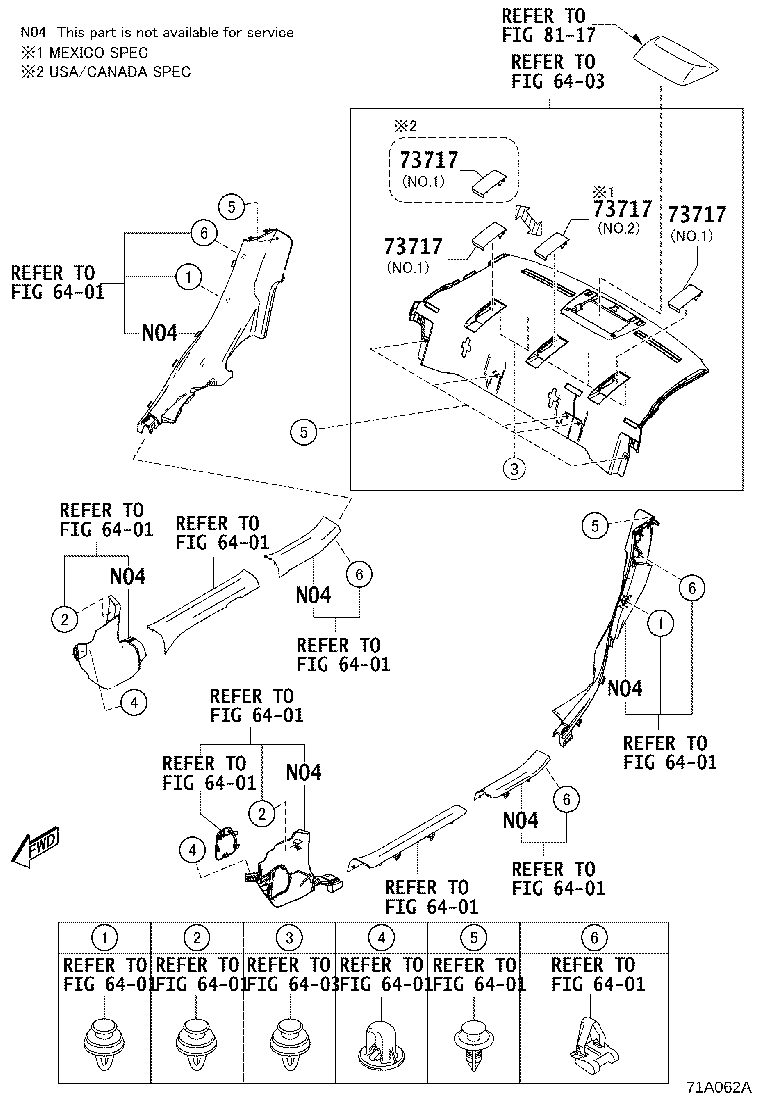

ILLUST NO. 3 OF 3(1506-1908)

Click highlighted areas on diagram

diagram 6401 6401 6401 6401 6401 6401 6401 6401 6401 6401 6401 6401 6401 6401 6403 6403 73717 73717 73717 73717 8117
Part # Description Qty Price
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-WB002

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80,NO.1

 3
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-WB002

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80,NO.1

 3
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-WB002

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80,NO.1

 3
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-WB002

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80,NO.1

 3
Linked diagrams
6401
6403
8117

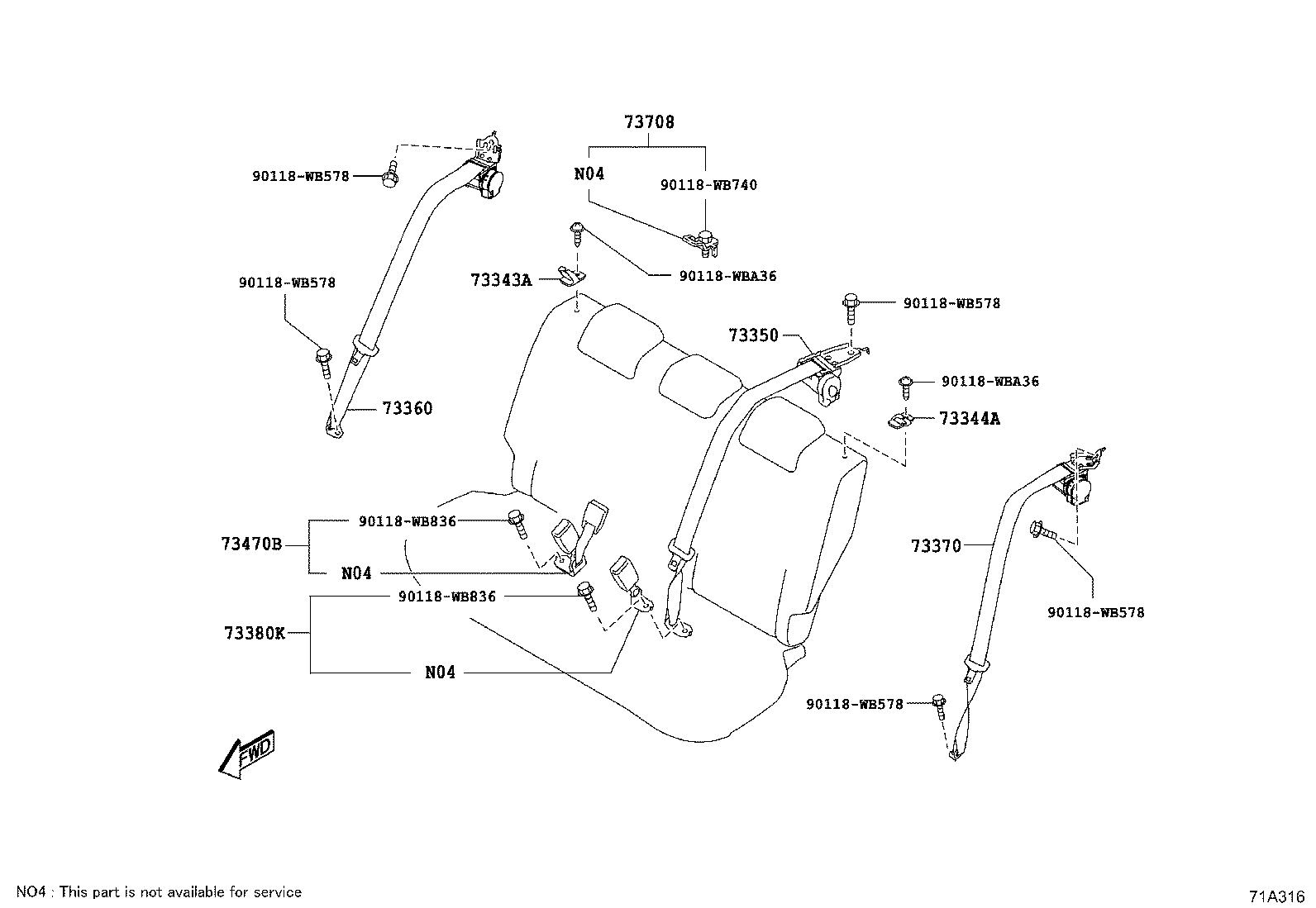

ILLUST NO. 2 OF 3(1506-1808)

Click highlighted areas on diagram

REAR

diagram 73343A 73344A 73350 73360 73370 73380K 73470B 73708 90118WB578 90118WB578 90118WB578 90118WB578 90118WB578 90118WB740 90118WB836 90118WB836 90118WBA36 90118WBA36
Part # Description Qty Price
73343A - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
73344A - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-WB003

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-WB001

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-WB001

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
73380K - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
73708 - BRACKET SET, TETHER ANCHOR
73708-WB001

DB7P,DD1B,DM0S,0T

 3
Common parts
90118-WB578
90118-WB740
90118-WB836
90118-WBA36

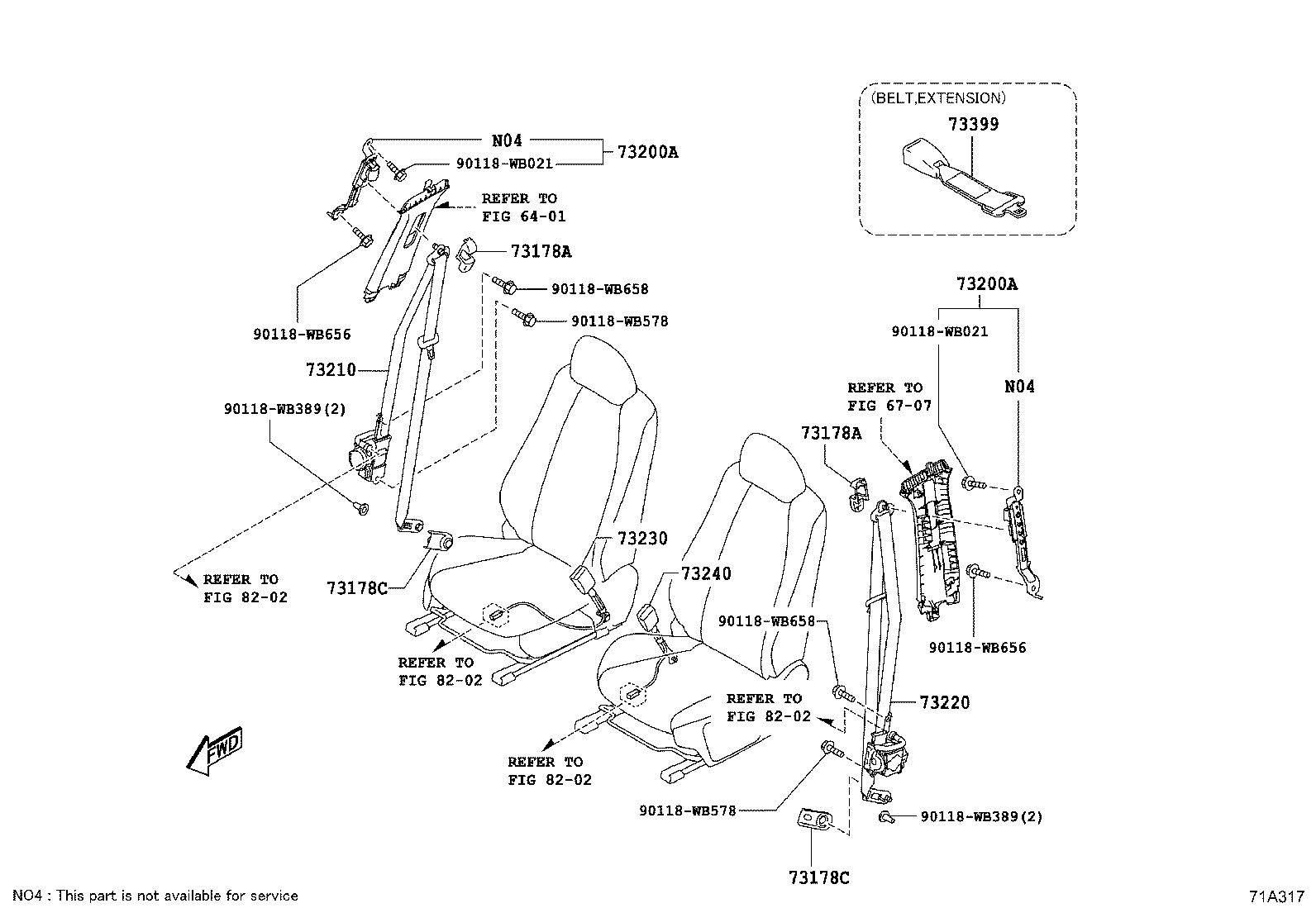

ILLUST NO. 1 OF 3(1506-1808)

Click highlighted areas on diagram

FRONT

diagram 6401 6707 73178A 73178A 73178C 73178C 73200A 73200A 73210 73220 73230 73240 73399 8202 8202 8202 8202 90118WB021 90118WB021 90118WB389 90118WB389 90118WB578 90118WB578 90118WB656 90118WB656 90118WB658 90118WB658
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-WB001

DB7P,DD1B,DM0S,0T

TINTED TOP,TRIM70,80

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-WB001

DB7P,DD1B,DM0S,0T

TINTED TOP,TRIM70,80

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-WB001

DB7P,DD1B,DM0S,0T

TINTED TOP,TRIM70,80

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-WB001

DB7P,DD1B,DM0S,0T

TINTED TOP,TRIM70,80

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-WB003

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-WB003

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73240-WB002

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-WB003

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
73399 - EXTENDER, SEAT BELT
73399-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

9 INCH

 1
73399-WB002

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

12 INCH

 1
Common parts
90118-WB021
90118-WB389
90118-WB578
90118-WB656
90118-WB658
Linked diagrams
6401
6707
8202
