DB7P-NAL (2016)
Toyota Scion Ia/Yaris R/Ia

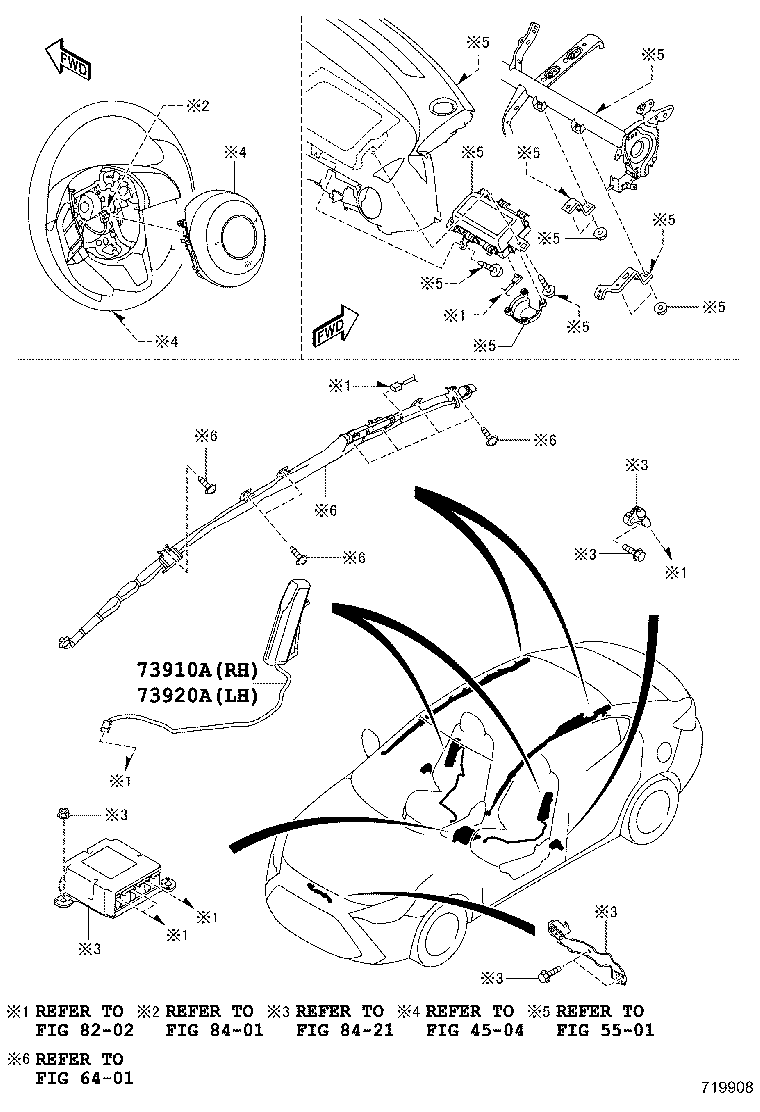

ILLUST NO. 3 OF 3(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| Linked diagrams | ||||
| 4504 | ||||
| 5501 | ||||
| 6401 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

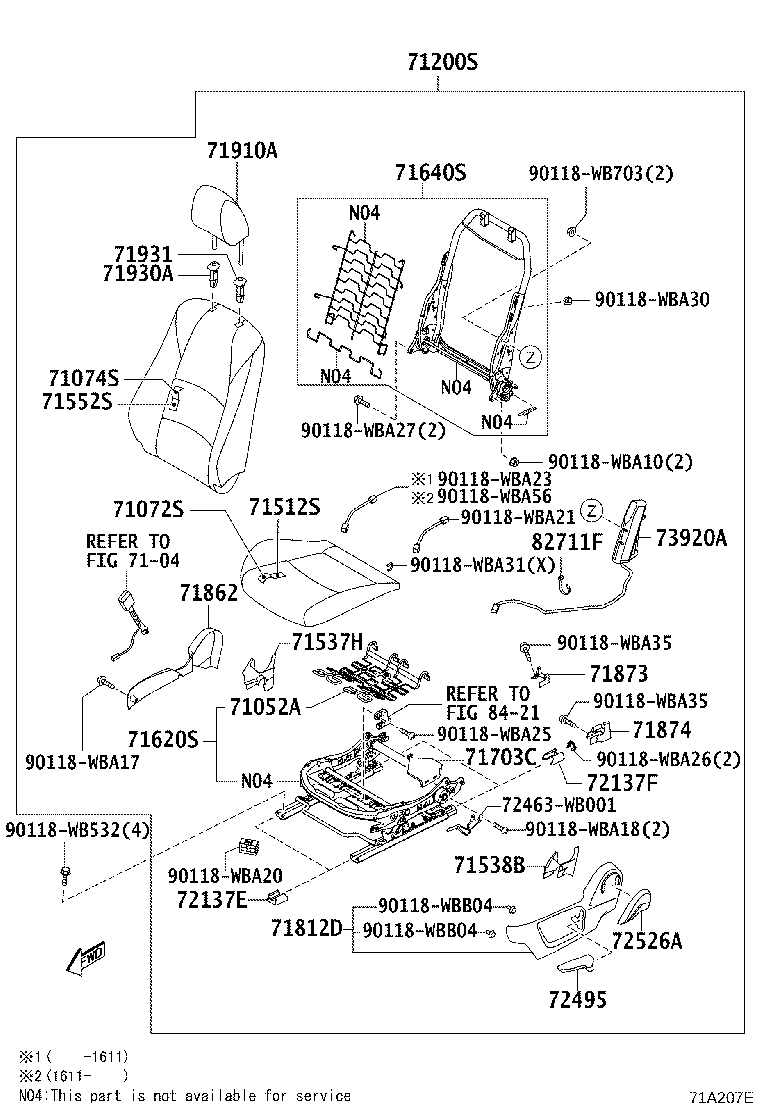

ILLUST NO. 1 OF 3(1506-1708)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-WB002 |
DB7P,DD1B,DM0S,0T TINTED GRAY/BLACK,TRIM80 |
1 | ||
| 71072-WB001 |
DB7P,DD1B,DM0S,0T BLUE/BLACK,TRIM70 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-WB002 |
DB7P,DD1B,DM0S,0T TINTED GRAY/BLACK,TRIM80 |
1 | ||
| 71074-WB001 |
DB7P,DD1B,DM0S,0T BLUE/BLACK,TRIM70 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-WB031 |
DB7P,DD1B..D,E,F,G,J,K,L TINTED GRAY/BLACK,TRIM80 |
1 | ||
| 71200-WB030 |
DB7P,DD1B..D,E,F,G,J,K,L BLUE/BLACK,TRIM70 |
1 | ||
| 71200-WB038 |
DB7P,DD1B..D,E,F,G,J,K,L BLUE/BLACK,TRIM70 |
1 | ||
| 71200-WB039 |
DB7P,DD1B..D,E,F,G,J,K,L TINTED GRAY/BLACK,TRIM80 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-WB001 |
DD1B;DM0T..A,C,D,E;DDF5..A,B,D,E,F;DB7P..B,C,E,F,G,J,K,L;DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF4,DM0S..A,B,C,D,E |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-WB001 |
DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-WB003 |
DB7P,DD1B |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 71703C - PANEL SUB-ASSY, FRONT SEAT CUSHION | ||||
| 71703-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# RH |
1 | ||
| 71703-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# LH |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-WB002 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
4 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72137-WB002 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
4 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 90118-WBA19 |
DM0T..A,C,D,E;DDF5..A,B,D,E,F,G;DB7P..B,C,E,F,G,J,K,L;DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1B,F4,DM0S |
5 | ||
| Common parts | ||||
| 72463-WB001 | ||||
| 90118-WB532 | ||||
| 90118-WB703 | ||||
| 90118-WBA10 | ||||
| 90118-WBA17 | ||||
| 90118-WBA18 | ||||
| 90118-WBA20 | ||||
| 90118-WBA21 | ||||
| 90118-WBA23 | ||||
| 90118-WBA25 | ||||
| 90118-WBA26 | ||||
| 90118-WBA27 | ||||
| 90118-WBA30 | ||||
| 90118-WBA31 | ||||
| 90118-WBA35 | ||||
| 90118-WBA56 | ||||
| 90118-WBB04 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||

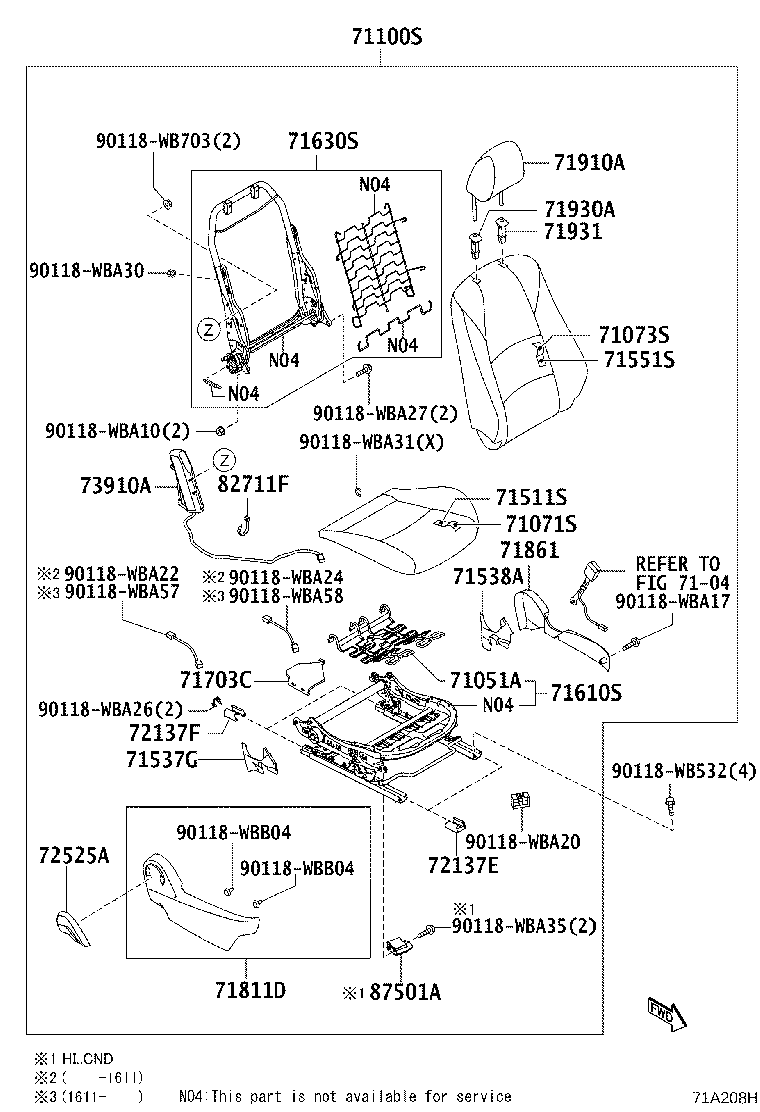

ILLUST NO. 2 OF 3(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-WB002 |
DB7P,DD1B,DM0S,0T TINTED GRAY/BLACK,TRIM80 |
1 | ||
| 71071-WB001 |
DB7P,DD1B,DM0S,0T BLUE/BLACK,TRIM70 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-WB002 |
DB7P,DD1B,DM0S,0T TINTED GRAY/BLACK,TRIM80 |
1 | ||
| 71073-WB001 |
DB7P,DD1B,DM0S,0T BLUE/BLACK,TRIM70 |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-WB031 |
DB7P,DD1B..D,E,F,G,J,K,L TINTED GRAY/BLACK,TRIM80 |
1 | ||
| 71100-WB030 |
DB7P,DD1B..D,E,F,G,J,K,L BLUE/BLACK,TRIM70 |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-WB002 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-WB002 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-WB002 |
DD1B;DM0T..A,C,D,E;DDF5..A,B,D,E,F;DB7P..B,C,E,F,G,J,K,L;DADW1,DAEA1,DAEB1,DAEC1,DDF4,DM0S..A,B,C,D,E |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 71703C - PANEL SUB-ASSY, FRONT SEAT CUSHION | ||||
| 71703-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# RH |
1 | ||
| 71703-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# LH |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-WB002 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
4 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72137-WB002 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
4 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-WB001 |
DB7P,DD1B,DM0S,0T BLACK,TRIM70,80 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 90118-WBA19 |
DM0T..A,C,D,E;DDF5..A,B,D,E,F,G;DB7P..B,C,E,F,G,J,K,L;DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1B,F4,DM0S |
5 | ||
| Common parts | ||||
| 90118-WB532 | ||||
| 90118-WB703 | ||||
| 90118-WBA10 | ||||
| 90118-WBA17 | ||||
| 90118-WBA20 | ||||
| 90118-WBA22 | ||||
| 90118-WBA24 | ||||
| 90118-WBA26 | ||||
| 90118-WBA27 | ||||
| 90118-WBA30 | ||||
| 90118-WBA31 | ||||
| 90118-WBA35 | ||||
| 90118-WBA57 | ||||
| 90118-WBA58 | ||||
| 90118-WBB04 | ||||
| Linked diagrams | ||||
| 7104 | ||||
