DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

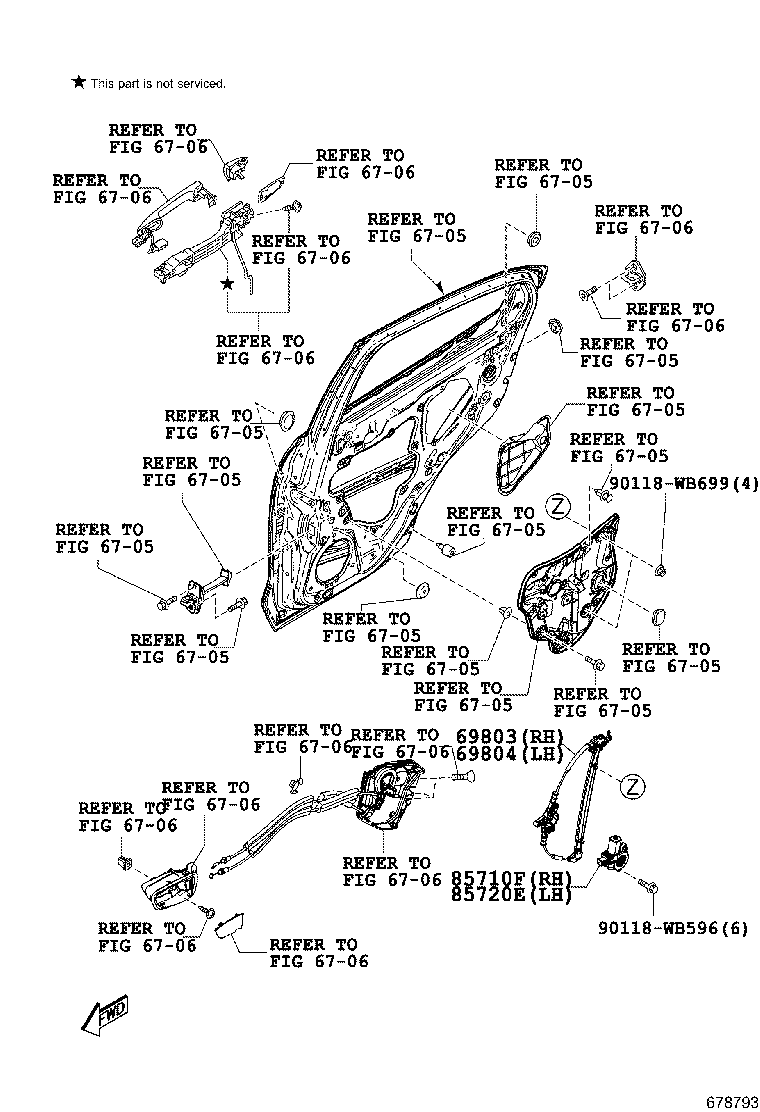

ILLUST NO. 1 OF 2(1506-1808)

Click highlighted areas on diagram

diagram 6705 6705 6705 6705 6705 6705 6705 6705 6705 6705 6705 6705 6705 6705 6705 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 69803 69804 85710F 85720E 90118WB596 90118WB699
Part # Description Qty Price
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-WB001

DB7P,DD1B,F4,F5,DM0S,0T

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-WB001

DB7P,DD1B,F4,F5,DM0S,0T

 1
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-WB001

DB7P,DD1B,DM0S,0T

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-WB002

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB596
90118-WB699
Linked diagrams
6705
6706
