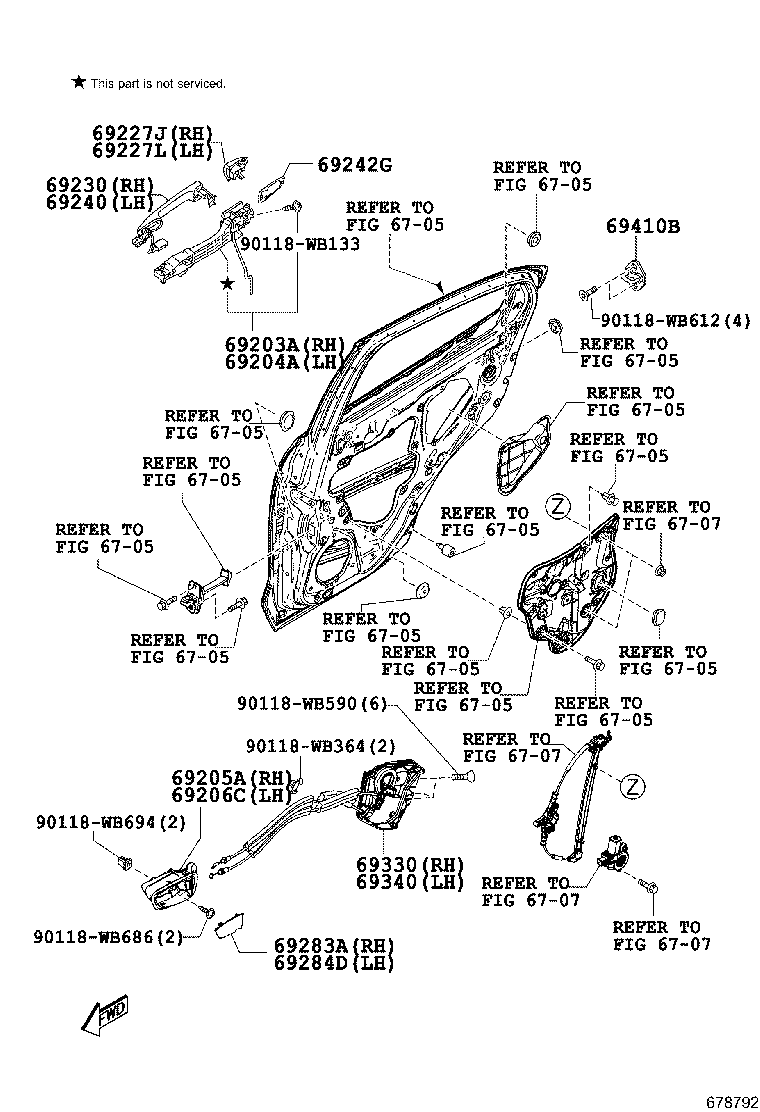

Toyota Scion ia/yaris r/ia DB7P REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-WB002	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-WB002	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-WB002	DB7P,DD1B,DM0S,0T DEEP CRYSTAL BLUE MC,42M	06/2015 - 08/2018	1
69227-WB003	DB7P,DD1B,DM0S,0T METEOR GRAY MC,42A	06/2015 - 08/2018	1
69227-WB006	DB7P,DD1B,DM0S,0T JET BLACK MC,41W	06/2015 - 08/2018	1
69227-WB001	DB7P,DD1B,DM0S,0T DYNAMIC BLUE MC,44J	06/2015 - 08/2018	1
69227-WB004	DB7P,DD1B,DM0S,0T ARCTIC WHITE CLE,A4D	06/2015 - 08/2018	1
69227-WB007	DB7P,DD1B,DM0S,0T ZEAL RED MC,41G	06/2015 - 08/2018	1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-WB018	DB7P,DD1B,DM0S,0T ARCTIC WHITE CLE,A4D	06/2015 - 08/2018	1
69227-WB016	DB7P,DD1B,DM0S,0T DEEP CRYSTAL BLUE MC,42M	06/2015 - 08/2018	1
69227-WB015	DB7P,DD1B,DM0S,0T DYNAMIC BLUE MC,44J	06/2015 - 08/2018	1
69227-WB021	DB7P,DD1B,DM0S,0T ZEAL RED MC,41G	06/2015 - 08/2018	1
69227-WB017	DB7P,DD1B,DM0S,0T METEOR GRAY MC,42A	06/2015 - 08/2018	1
69227-WB020	DB7P,DD1B,DM0S,0T JET BLACK MC,41W	06/2015 - 08/2018	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-WB002	DB7P,DD1B,DM0S,0T DEEP CRYSTAL BLUE MC,42M	06/2015 - 08/2018	1
69210-WB004	DB7P,DD1B,DM0S,0T ARCTIC WHITE CLE,A4D	06/2015 - 08/2018	1
69210-WB006	DB7P,DD1B,DM0S,0T JET BLACK MC,41W	06/2015 - 08/2018	1
69210-WB029	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T SONIC SILVER M,45P	09/2016 - 12/2999	1
69210-WB007	DB7P,DD1B,DM0S,0T ZEAL RED MC,41G	06/2015 - 08/2018	1
69210-WB001	DB7P,DD1B,DM0S,0T DYNAMIC BLUE MC,44J	06/2015 - 08/2018	1
69210-WB003	DB7P,DD1B,DM0S,0T METEOR GRAY MC,42A	06/2015 - 08/2018	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-WB008	DB7P,DD1B,DM0S,0T DYNAMIC BLUE MC,44J	06/2015 - 08/2018	1
69210-WB009	DB7P,DD1B,DM0S,0T DEEP CRYSTAL BLUE MC,42M	06/2015 - 08/2018	1
69210-WB010	DB7P,DD1B,DM0S,0T METEOR GRAY MC,42A	06/2015 - 08/2018	1
69210-WB014	DB7P,DD1B,DM0S,0T ZEAL RED MC,41G	06/2015 - 08/2018	1
69210-WB011	DB7P,DD1B,DM0S,0T ARCTIC WHITE CLE,A4D	06/2015 - 08/2018	1
69210-WB013	DB7P,DD1B,DM0S,0T JET BLACK MC,41W	06/2015 - 08/2018	1
69210-WB030	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W SONIC SILVER M,45P	09/2016 - 12/2999	1
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69241-WB001	DB7P,DD1B,DM0S,0T RH	06/2015 - 08/2018	1
69241-WB002	DB7P,DD1B,DM0S,0T LH	06/2015 - 08/2018	1
69330 - LOCK ASSY, REAR DOOR, RH
69050-WB002	DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T..MXC,PUE	06/2015 - 12/2999	1
69340 - LOCK ASSY, REAR DOOR, LH
69060-WB002	DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T..MXC,PUE	06/2015 - 12/2999	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-WB001	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	2
Common parts
90118-WB133
90118-WB364
90118-WB590
90118-WB612
90118-WB686
90118-WB694
Linked diagrams
6705
6707

DB7P-NAL (2016)

(1506-1808)
