DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1506-1808)

Click highlighted areas on diagram

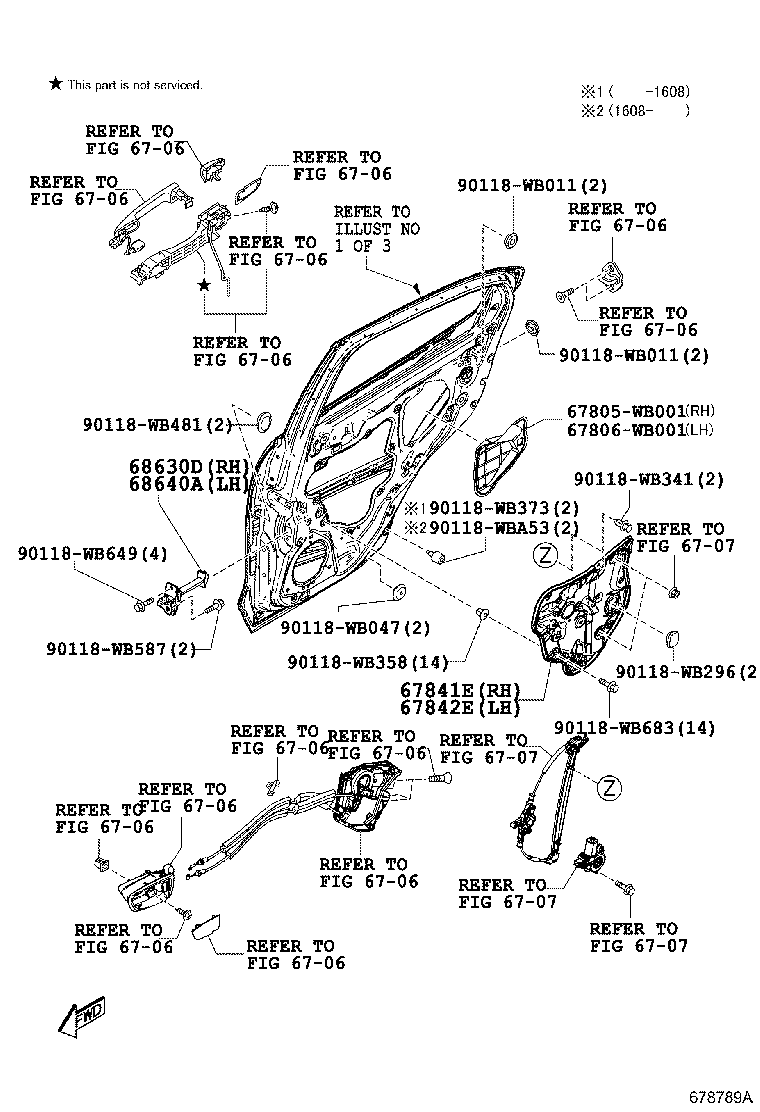

DOOR PANEL

diagram 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 6706 6707 6707 6707 6707 67805WB001 67806WB001 67841E 67842E 68630D 68640A 90118WB011 90118WB011 90118WB047 90118WB296 90118WB341 90118WB358 90118WB373 90118WB481 90118WB587 90118WB649 90118WB683 90118WBA53
Part # Description Qty Price
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-WB002

DB7P,DD1B,DM0S,0T

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-WB002

DB7P,DD1B,DM0S,0T

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-WB001

DB7P,DD1B,DM0S,0T

 1
68640A - CHECK ASSY, REAR DOOR, LH
68630-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
67805-WB001
67806-WB001
90118-WB011
90118-WB047
90118-WB296
90118-WB341
90118-WB358
90118-WB373
90118-WB481
90118-WB587
90118-WB649
90118-WB683
90118-WBA53
Linked diagrams
6706
6707

ILLUST NO. 3 OF 3(1506-1808)

Click highlighted areas on diagram

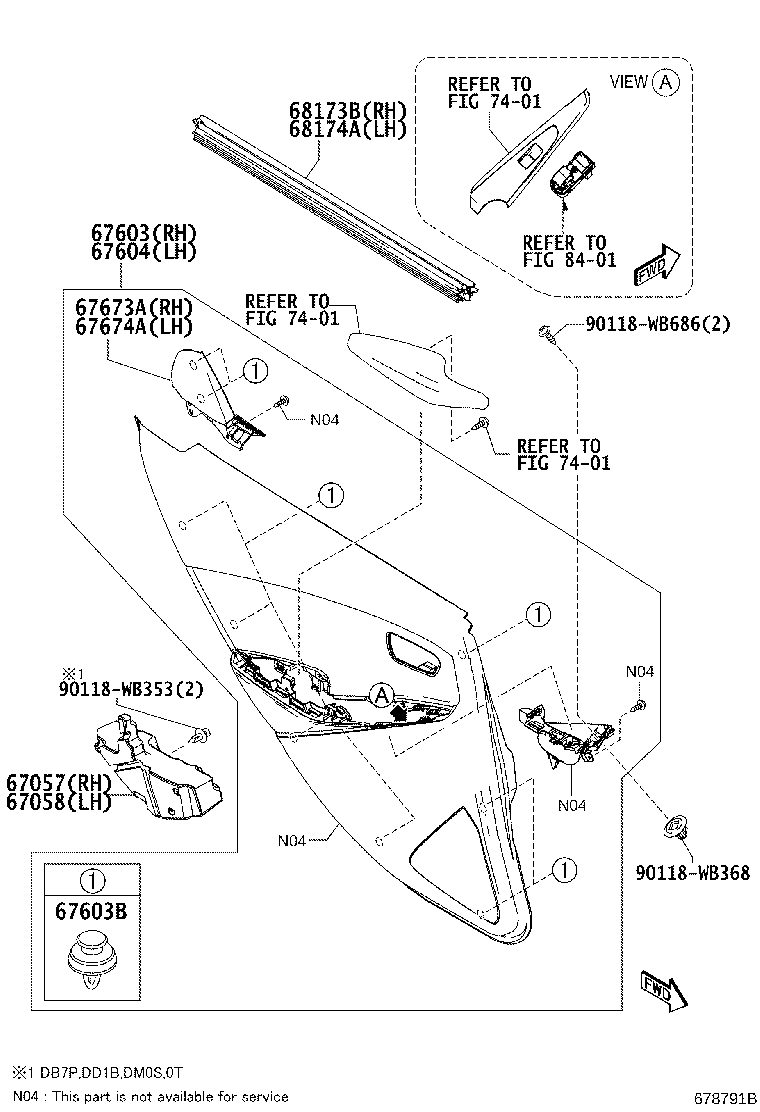

DOOR TRIM

diagram 67057 67058 67603 67603B 67604 67673A 67674A 68173B 68174A 7401 7401 7401 8401 90118WB353 90118WB368 90118WB686
Part # Description Qty Price
67057 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
67057-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 1
67058 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
67058-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-WB002

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90118-WB361

DB7P,DD1B,DM0S,0T

 18
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-WB002

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-WB002

DB7P,DD1B,DM0S,0T

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-WB002

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB353
90118-WB368
90118-WB686
Linked diagrams
7401
8401
