DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

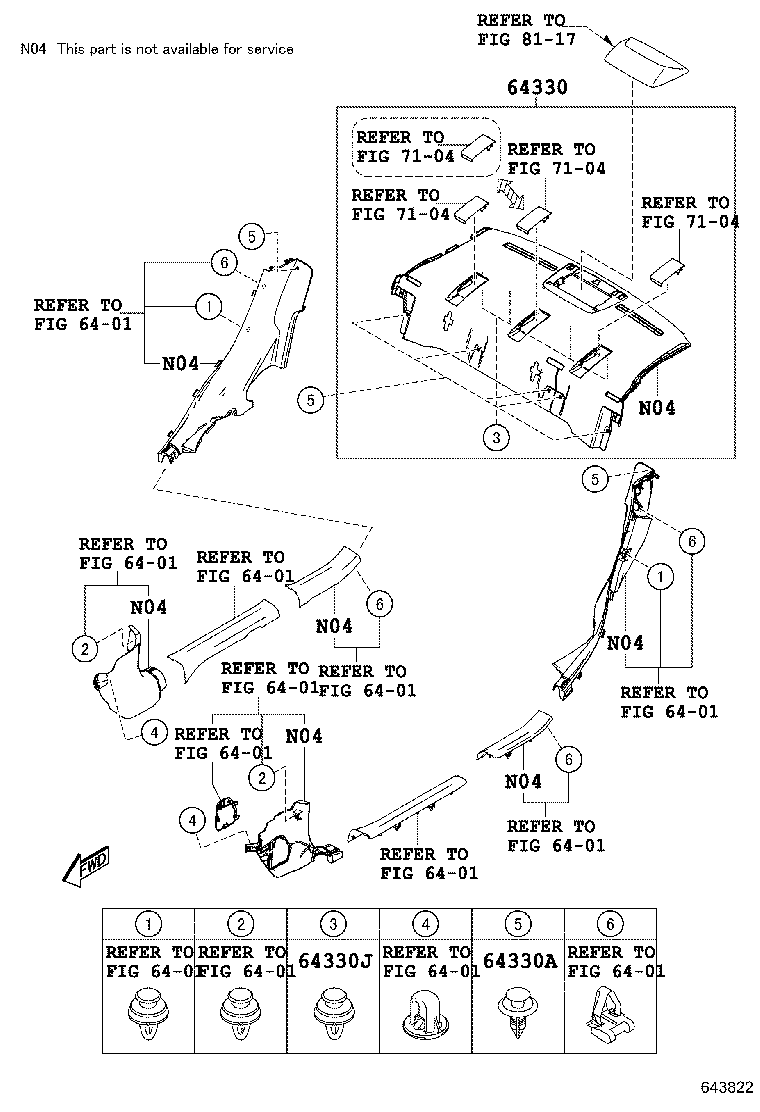

ILLUST NO. 1 OF 4(1506-1908)

Click highlighted areas on diagram

diagram 6401 6401 6401 6401 6401 6401 6401 6401 6401 6401 6401 6401 6401 64330 64330A 64330J 7104 7104 7104 7104 8117
Part # Description Qty Price
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-WB005

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

BLACK,TRIM10,20,30,40,70,80

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90118-WB353

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 5
64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90118-WB361

DB7P,DD1B,DM0S,0T

 4
Linked diagrams
6401
7104
8117

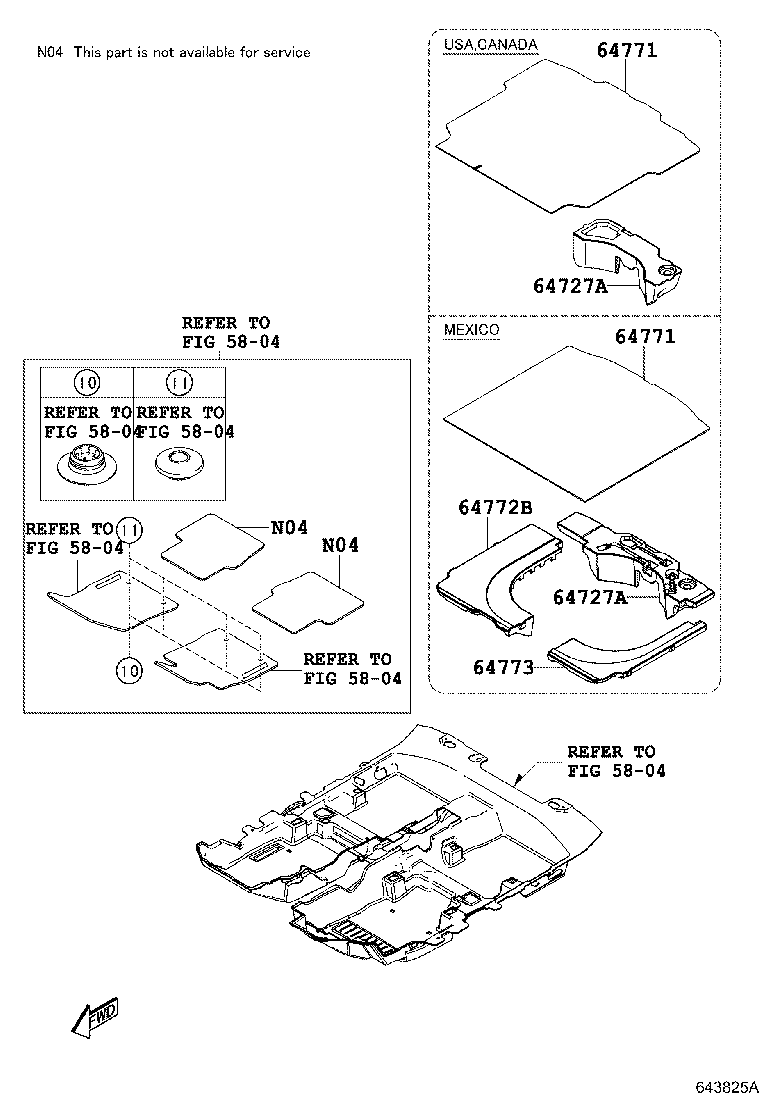

ILLUST NO. 4 OF 4(1506-1908)

Click highlighted areas on diagram

diagram 5804 5804 5804 5804 5804 5804 64727A 64727A 64771 64771 64772B 64773
Part # Description Qty Price
64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER
64727-WB003

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER
64727-WB003

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
64771 - COVER, SPARE WHEEL
64771-WB003

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

BLACK,TRIM10,20,30,40,70,80

 1
64771 - COVER, SPARE WHEEL
64771-WB003

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

BLACK,TRIM10,20,30,40,70,80

 1
Linked diagrams
5804
