DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

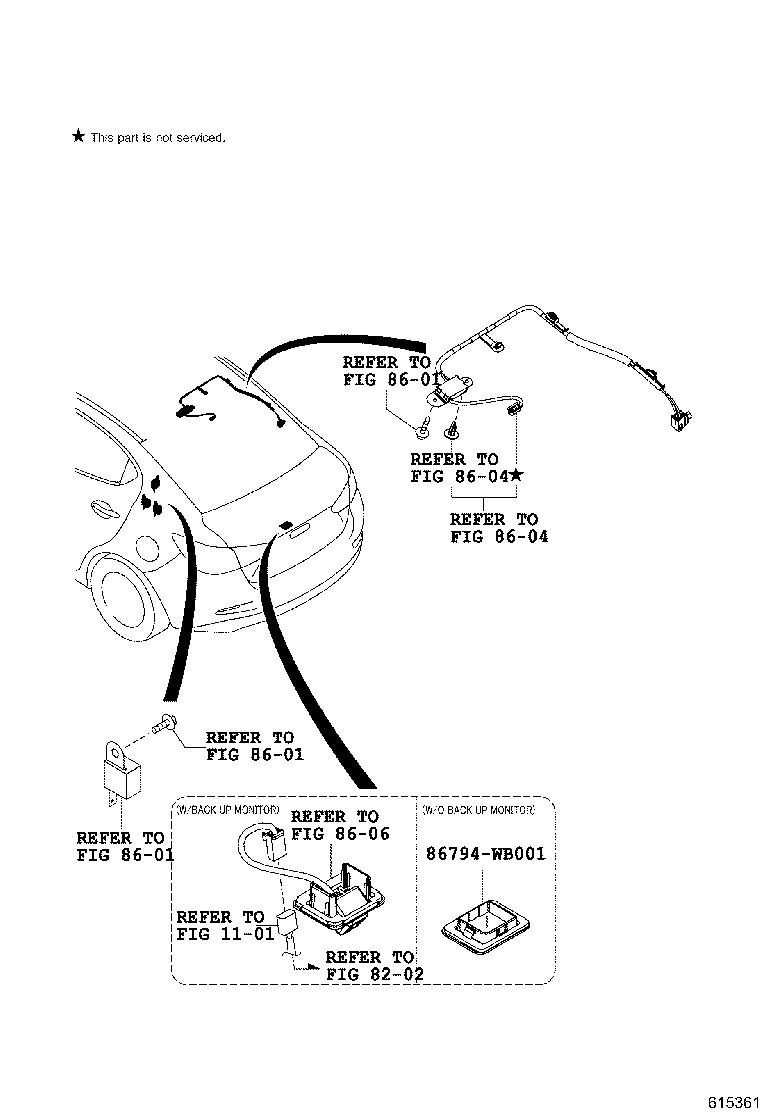

ILLUST NO. 2 OF 2(1506-1808)

Click highlighted areas on diagram

diagram 1101 8202 8601 8601 8601 8604 8604 8606 86794WB001
Part # Description Qty Price
Common parts
86794-WB001
Linked diagrams
1101
8202
8601
8604
8606

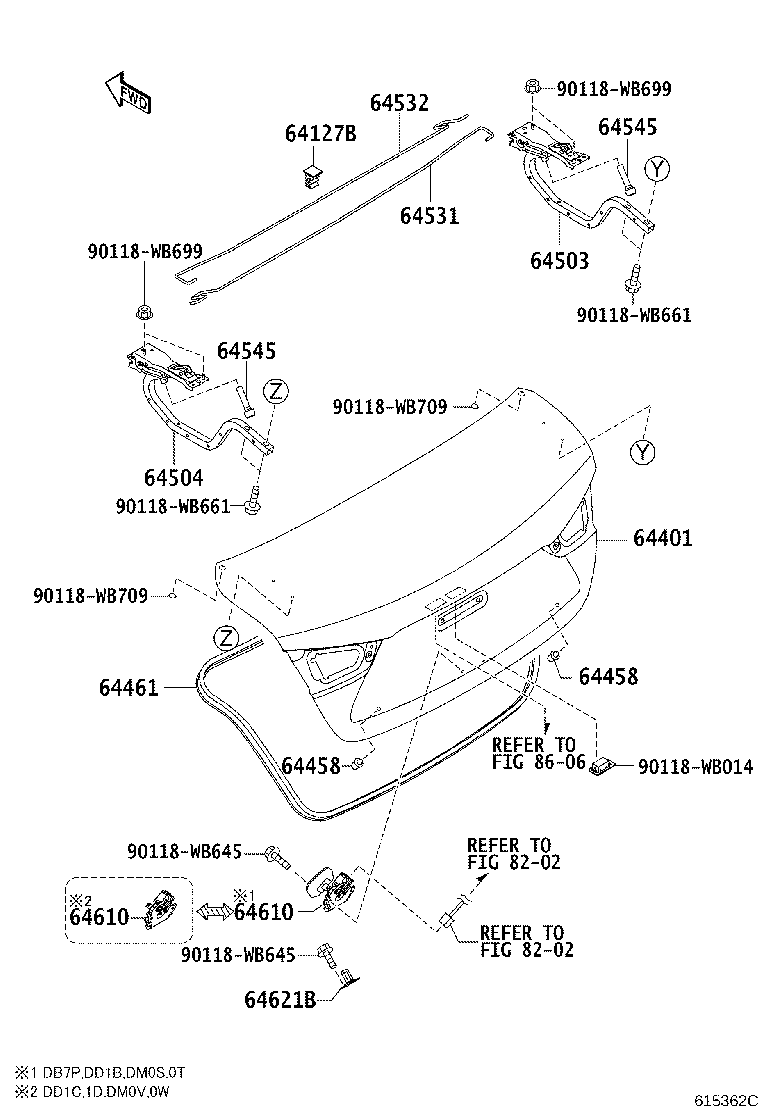

ILLUST NO. 1 OF 2(1506-1808)

Click highlighted areas on diagram

diagram 64127B 64401 64458 64458 64461 64503 64504 64531 64532 64545 64545 64610 64610 64621B 8202 8202 8606 90118WB014 90118WB645 90118WB645 90118WB661 90118WB661 90118WB699 90118WB699 90118WB709 90118WB709
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-WB002

DB7P,DD1B,DM0S,0T

 1
64458 - COVER, LUGGAGE DOOR STOPPER CUSHION, LH
90118-WB057

DB7P,DD1B,DM0S,0T

 2
64458 - COVER, LUGGAGE DOOR STOPPER CUSHION, LH
90118-WB057

DB7P,DD1B,DM0S,0T

 2
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-WB001

DB7P,DD1B

 1
64503-WB002

DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64504-WB001

DB7P,DD1B

 1
64504-WB002

DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-WB003

DB7P,DD1B,DM0S,0T

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-WB003

DB7P,DD1B,DM0S,0T

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90118-WB894

DB7P,DD1B,DM0S,0T

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90118-WB894

DB7P,DD1B,DM0S,0T

 2
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-WB001

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-WB001

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB014
90118-WB645
90118-WB661
90118-WB699
90118-WB709
Linked diagrams
8202
8606
