DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(1506-1808)

Click highlighted areas on diagram

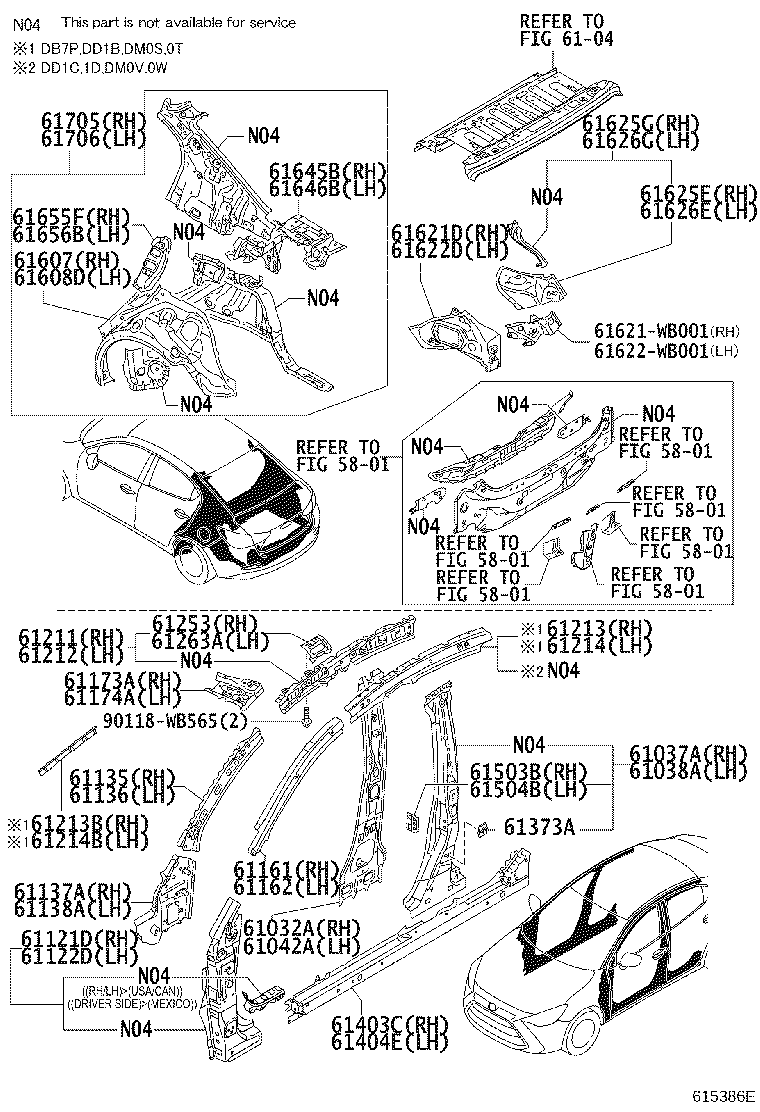

INNER PANEL

diagram 5801 5801 5801 5801 5801 5801 5801 61032A 61037A 61038A 6104 61042A 61121D 61122D 61135 61136 61137A 61138A 61161 61162 61173A 61174A 61211 61212 61213 61213B 61214 61214B 61253 61263A 61373A 61403C 61404E 61503B 61504B 61607 61608D 61621D 61621WB001 61622D 61622WB001 61625E 61625G 61626E 61626G 61645B 61646B 61655F 61656B 61705 61706 90118WB565
Part # Description Qty Price
61032A - PILLAR SUB-ASSY, NO.1 INNER, RH
61037-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61032-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61042-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61042A - PILLAR SUB-ASSY, NO.1 INNER, LH
61038-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61121D - PANEL, COWL SIDE, RH
61121-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61122D - PANEL, COWL SIDE, LH
61122-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61135-WB002

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61136-WB002

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-WB001

DB7P,DD1B,DM0S,0T

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-WB001

DB7P,DD1B,DM0S,0T

 1
61173A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
61173-WB001

DB7P,DD1B,DM0S,0T

 1
61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61174-WB001

DB7P,DD1B,DM0S,0T

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-WB001

DB7P,DD1B,DM0S,0T

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-WB001

DB7P,DD1B,DM0S,0T

 1
61213 - RAIL, ROOF SIDE, OUTER REAR RH
61213-WB002

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61214 - RAIL, ROOF SIDE, OUTER REAR LH
61214-WB002

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61214-WB001

DB7P,DD1B,DM0S,0T

 1
61253 - PILLAR, NO.2 INNER, RH
61253-WB001

DB7P,DD1B,DM0S,0T

 1
61263A - PILLAR, NO.2 INNER, LH
61263-WB001

DB7P,DD1B,DM0S,0T

 1
61373A - REINFORCE, CENTER PILLAR LOWER HINGE, NO.1 RH
61373-WB001

DB7P,DD1B,DM0S,0T

 2
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61315-WB001

DB7P,DD1B,DM0S,0T

 2
61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61315-WB001

DB7P,DD1B,DM0S,0T

 2
61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61607-WB001

DB7P,DD1B,DM0S,0T

 1
61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-WB001

DB7P,DD1B,DM0S,0T

 1
61621D - TROUGH, BACK DOOR OPENING, RH
64201-WB001

DB7P,DD1B,DM0S,0T

 1
61625E - EXTENSION, QUARTER PANEL, INNER REAR RH
61625-WB002

DB7P,DD1B,DM0S,0T

 1
61625G - EXTENSION, QUARTER PANEL, REAR RH
61033-WB002

DB7P,DD1B,DM0S,0T

 1
61626E - EXTENSION, QUARTER PANEL, INNER REAR LH
61626-WB002

DB7P,DD1B,DM0S,0T

 1
61626G - EXTENSION, QUARTER PANEL, REAR LH
61034-WB002

DB7P,DD1B,DM0S,0T

 1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-WB001

DB7P,DD1B,DM0S,0T

 1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-WB001

DB7P,DD1B,DM0S,0T

 1
61655F - BRACKET, BACK DOOR STAY, UPPER RH
61655-WB001

DB7P,DD1B,DM0S,0T

 1
61656B - BRACKET, BACK DOOR STAY, UPR LH
61656-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
61621-WB001
61622-WB001
90118-WB565
Linked diagrams
5801
6104
