DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

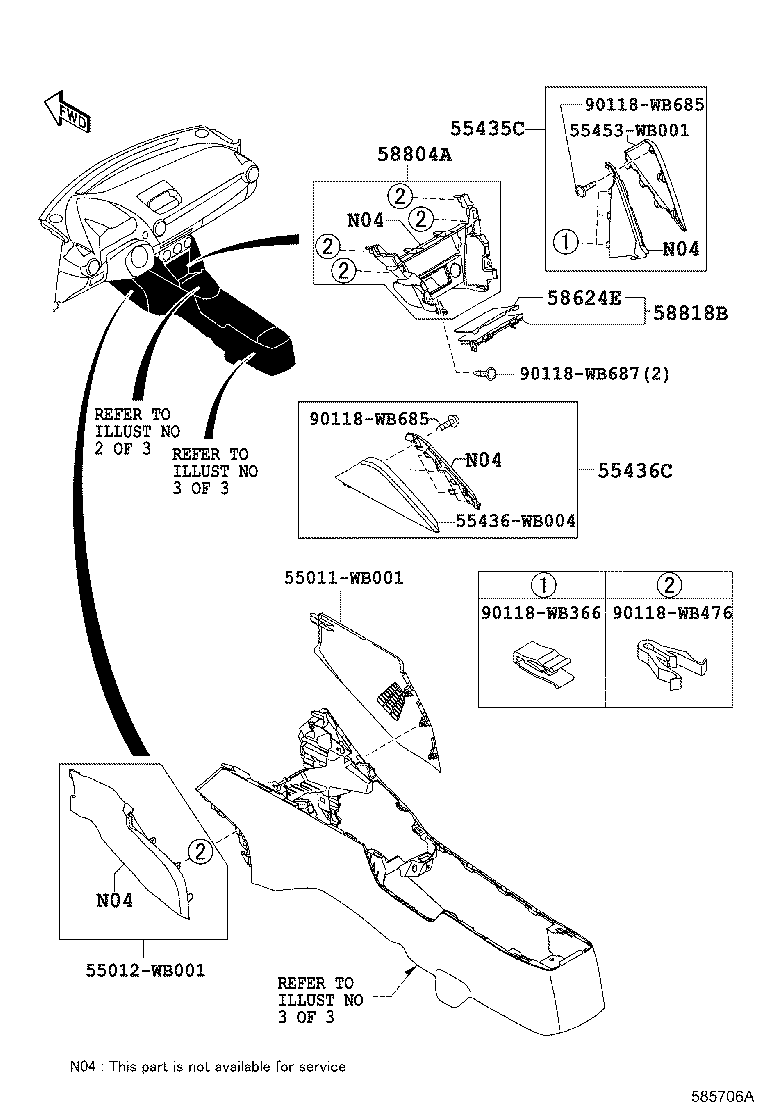

ILLUST NO. 1 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 55011WB001 55012WB001 55435C 55436C 55436WB004 55453WB001 58624E 58804A 58818B 90118WB366 90118WB476 90118WB685 90118WB685 90118WB687
Part # Description Qty Price
55435C - PANEL, INSTRUMENT PANEL FINISH, END RH
55435-WB003

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
55436C - PANEL, INSTRUMENT PANEL FINISH, END LH
55436-WB003

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
58624E - PLATE, MAT SET, NO.4 A
58624-WB002

DB7P,DD1B,DM0S,0T..PUE

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-WB002

DB7P,DD1B,DM0S,0T..PUE

BLACK,TRIM70,80

 1
58818B - COVER, CONSOLE BOX, UPPER
58818-WB002

DB7P,DD1B,DM0S,0T..PUE

 1
Common parts
55011-WB001
55012-WB001
55436-WB004
55453-WB001
90118-WB366
90118-WB476
90118-WB685
90118-WB687

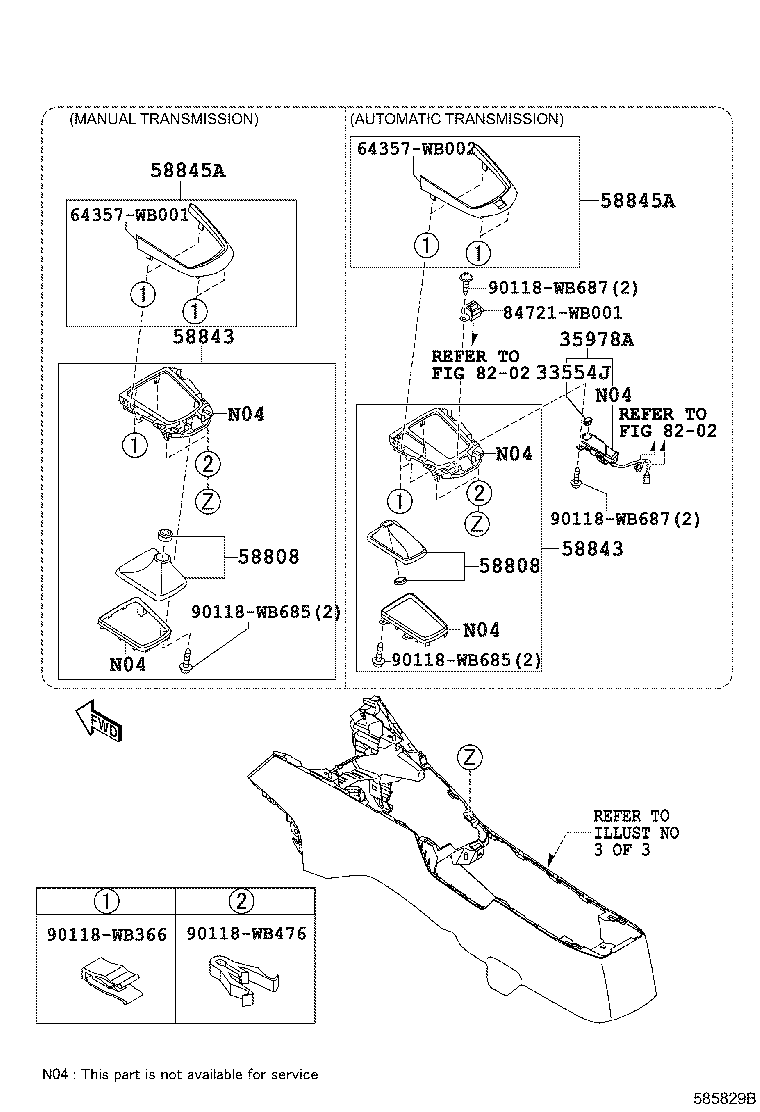

ILLUST NO. 2 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 33554J 35978A 58808 58808 58843 58843 58845A 58845A 64357WB001 64357WB002 8202 8202 84721WB001 90118WB366 90118WB476 90118WB685 90118WB685 90118WB687 90118WB687
Part # Description Qty Price
33554J - COVER, SHIFT LOCK RELEASE BUTTON
33554-WB001

DAEA1,DAEC1,DAEE1,DB7P,DD1D,F5,F9,DM0T,0W

 1
58845A - FRAME, CONSOLE, NO.1
58845-WB004

DB7P,DM0T..(PUE,USA)..(A,B,D,F,G,K)

 1
58845-WB002

DM0T..B,C,E;DB7P..C,D,E,H,J,L

 1
58845A - FRAME, CONSOLE, NO.1
58845-WB004

DB7P,DM0T..(PUE,USA)..(A,B,D,F,G,K)

 1
58845-WB002

DM0T..B,C,E;DB7P..C,D,E,H,J,L

 1
Common parts
64357-WB001
64357-WB002
84721-WB001
90118-WB366
90118-WB476
90118-WB685
90118-WB687
Linked diagrams
8202

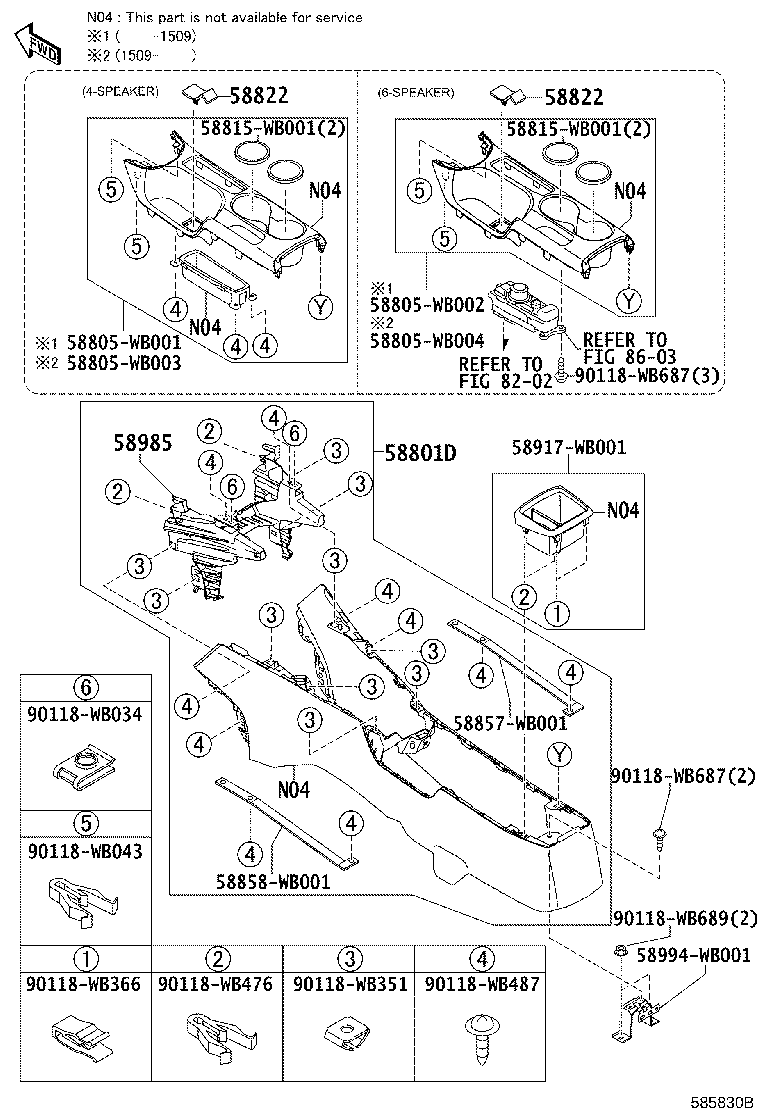

ILLUST NO. 3 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 58801D 58805WB001 58805WB002 58805WB003 58805WB004 58815WB001 58815WB001 58822 58822 58857WB001 58858WB001 58917WB001 58985 58994WB001 8202 8603 90118WB034 90118WB043 90118WB351 90118WB366 90118WB476 90118WB487 90118WB687 90118WB687 90118WB689
Part # Description Qty Price
58801D - BOX ASSY, CONSOLE
58910-WB002

DB7P,DD1B,DM0S,0T..PUE

BLACK,TRIM70,80

 1
58822 - PANEL, CONSOLE, SIDE
58822-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
58822 - PANEL, CONSOLE, SIDE
58822-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
58985 - RETAINER, CONSOLE BOX
58985-WB002

DB7P,DD1B,DM0S,0T..PUE

 1
Common parts
58805-WB001
58805-WB002
58805-WB003
58805-WB004
58815-WB001
58857-WB001
58858-WB001
58917-WB001
58994-WB001
90118-WB034
90118-WB043
90118-WB351
90118-WB366
90118-WB476
90118-WB487
90118-WB687
90118-WB689
Linked diagrams
8202
8603
