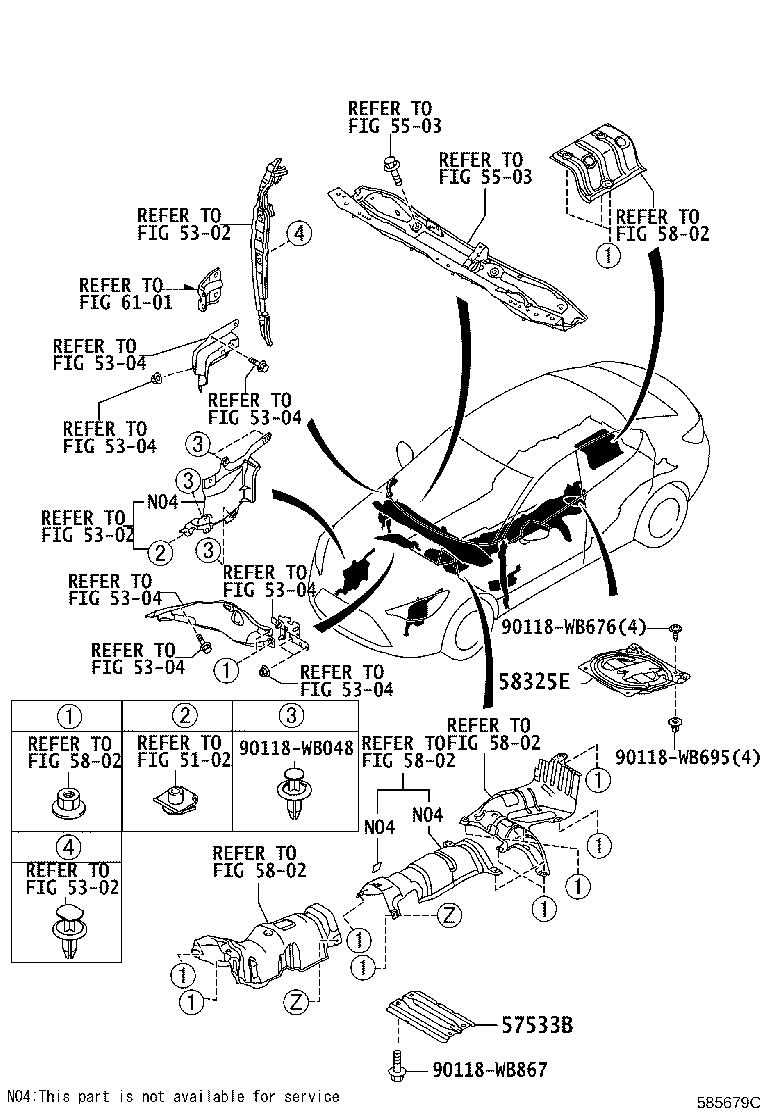

DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 6(1506-1908)

Click highlighted areas on diagram

diagram 5102 5302 5302 5302 5304 5304 5304 5304 5304 5304 5304 5503 5503 57533B 5802 5802 5802 5802 5802 58325E 6101 90118WB048 90118WB676 90118WB695 90118WB867
Part # Description Qty Price
57533B - BRACE, FRONT FLOOR, CENTER
57533-WB001

DB7P,DD1B

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB048
90118-WB676
90118-WB695
90118-WB867
Linked diagrams
5102
5302
5304
5503
5802
6101

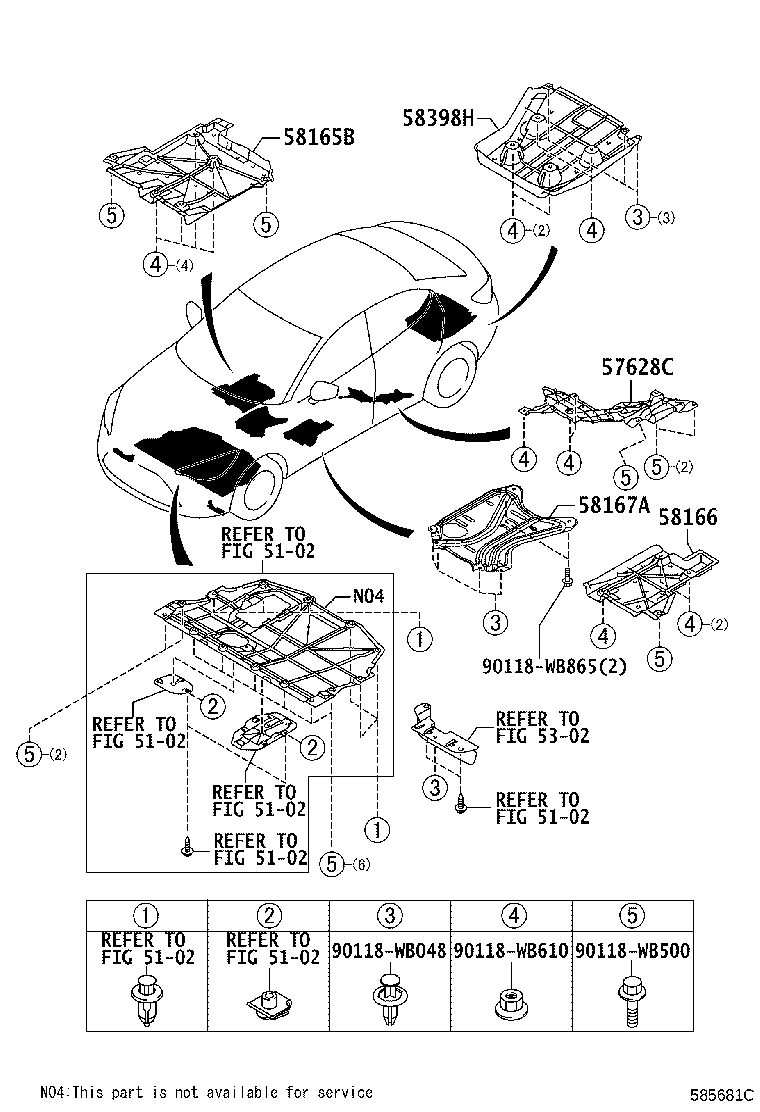

ILLUST NO. 5 OF 6(1506-1908)

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 5102 5302 57628C 58165B 58166 58167A 58398H 90118WB048 90118WB500 90118WB610 90118WB865
Part # Description Qty Price
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-WB001

DB7P,DD1B,DM0S,0T

 1
58165B - COVER, FRONT FLOOR, RH
58165-WB001

DB7P,DD1B,DM0S,0T

 1
58166 - COVER, FRONT FLOOR, LH
58166-WB001

DB7P,DD1B,DM0S,0T

 1
58167A - COVER, FRONT FLOOR, CENTER
58167-WB001

DB7P,DD1B,DM0S,0T

 1
58398H - COVER, FLOOR UNDER, NO.1
58398-WB002

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB048
90118-WB500
90118-WB610
90118-WB865
Linked diagrams
5102
5302

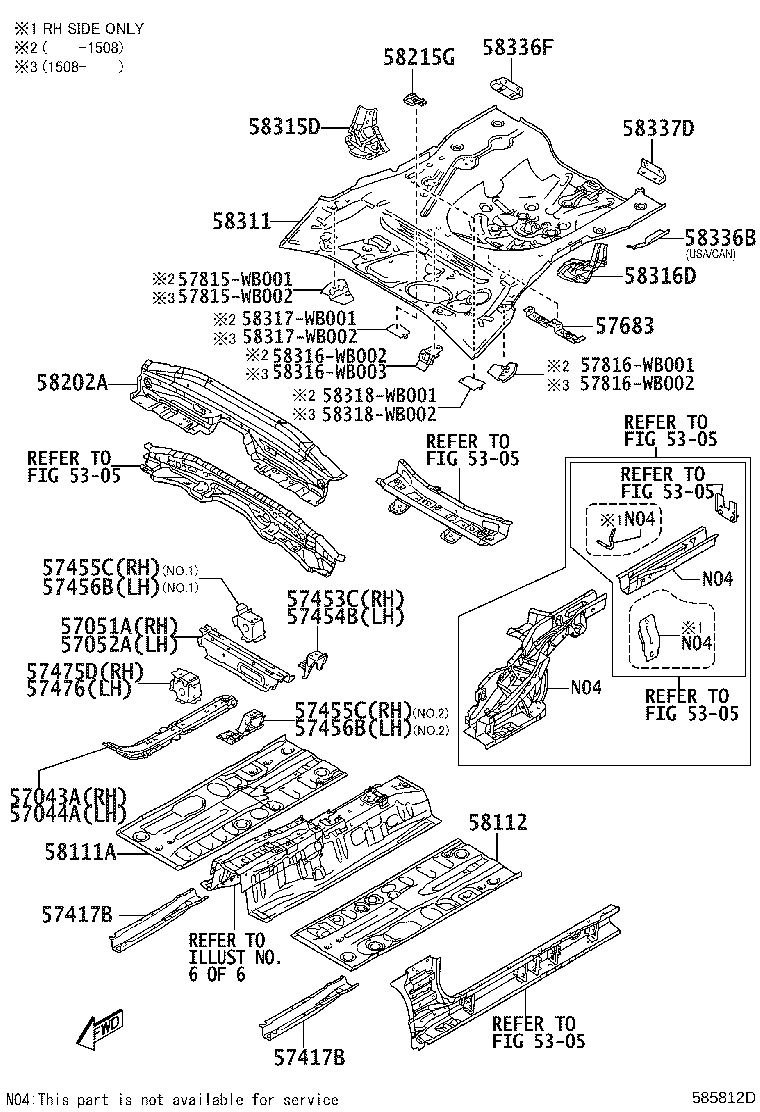

ILLUST NO. 3 OF 6(1506-1808)

Click highlighted areas on diagram

diagram 5305 5305 5305 5305 5305 5305 57043A 57044A 57051A 57052A 57417B 57417B 57453C 57454B 57455C 57455C 57456B 57456B 57475D 57476 57683 57815WB001 57815WB002 57816WB001 57816WB002 58111A 58112 58202A 58215G 58311 58315D 58316D 58316WB002 58316WB003 58317WB001 58317WB002 58318WB001 58318WB002 58336B 58336F 58337D
Part # Description Qty Price
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-WB004

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
57052-WB001

DB7P,DD1B

 1
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-WB001

DB7P,DD1B,DM0S,0T

 2
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-WB001

DB7P,DD1B,DM0S,0T

 2
57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH
57453-WB001

DB7P,DD1B,DM0S,0T

 1
57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH
57454-WB001

DB7P,DD1B,DM0S,0T

 1
57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH
57475-WB001

DB7P,DD1B,DM0S,0T

 1
57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH
57476-WB001

DB7P,DD1B,DM0S,0T

 1
57683 - BRACKET, FUEL TANK, FRONT
57683-WB001

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
58111A - PAN, FRONT FLOOR, RH
58111-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
58112 - RETAINER, SEAT RAIL, REAR
58112-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT
58202-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
58215G - BRACKET, REAR SEAT MOUNTING, NO.1
58215-WB001

DB7P,DD1B,DM0S,0T

 2
58311 - PAN, REAR FLOOR
58311-WB001

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-WB001

DB7P,DD1B,DM0S,0T

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-WB001

DB7P,DD1B,DM0S,0T

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58338-WB001

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
58336F - REINFORCEMENT, REAR FLOOR PAN, RH
58336-WB001

DB7P,DD1B,DM0S,0T

 1
58337D - REINFORCEMENT, REAR FLOOR PAN, LH
58337-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
57815-WB001
57815-WB002
57816-WB001
57816-WB002
58316-WB002
58316-WB003
58317-WB001
58317-WB002
58318-WB001
58318-WB002
Linked diagrams
5305
