DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1506-1808)

Click highlighted areas on diagram

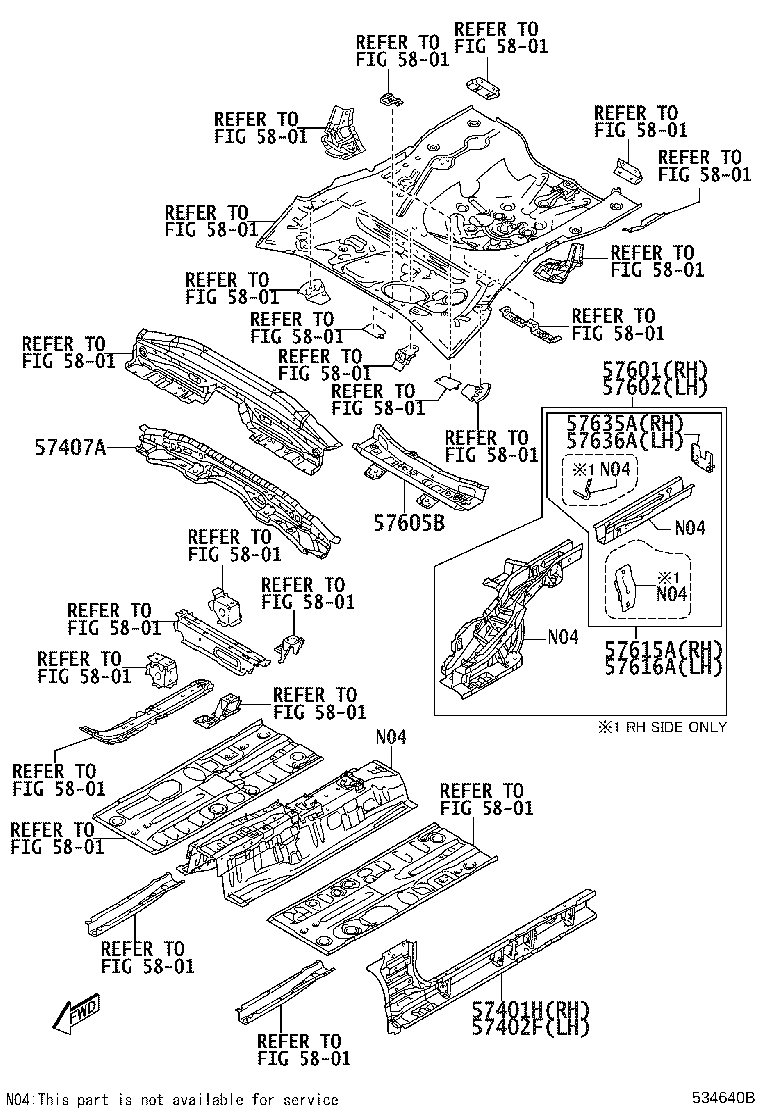

diagram 57401H 57402F 57407A 57601 57602 57605B 57615A 57616A 57635A 57636A 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801
Part # Description Qty Price
57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-WB001

DB7P,DD1B,DM0S,0T

 1
57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-WB001

DB7P,DD1B,DM0S,0T

 1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-WB001

DB7P,DD1B,DM0S,0T

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-WB001

DB7P,DD1B

 1
57601-WB003

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-WB005

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-WB001

DB7P,DD1B,DM0S,0T

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-WB001

DB7P,DD1B,DM0S,0T

 1
57635A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH
57635-WB001

DB7P,DD1B,DM0S,0T

 1
57636A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
57636-WB001

DB7P,DD1B,DM0S,0T

 1
Linked diagrams
5801

ILLUST NO. 1 OF 2(1506-1908)

Click highlighted areas on diagram

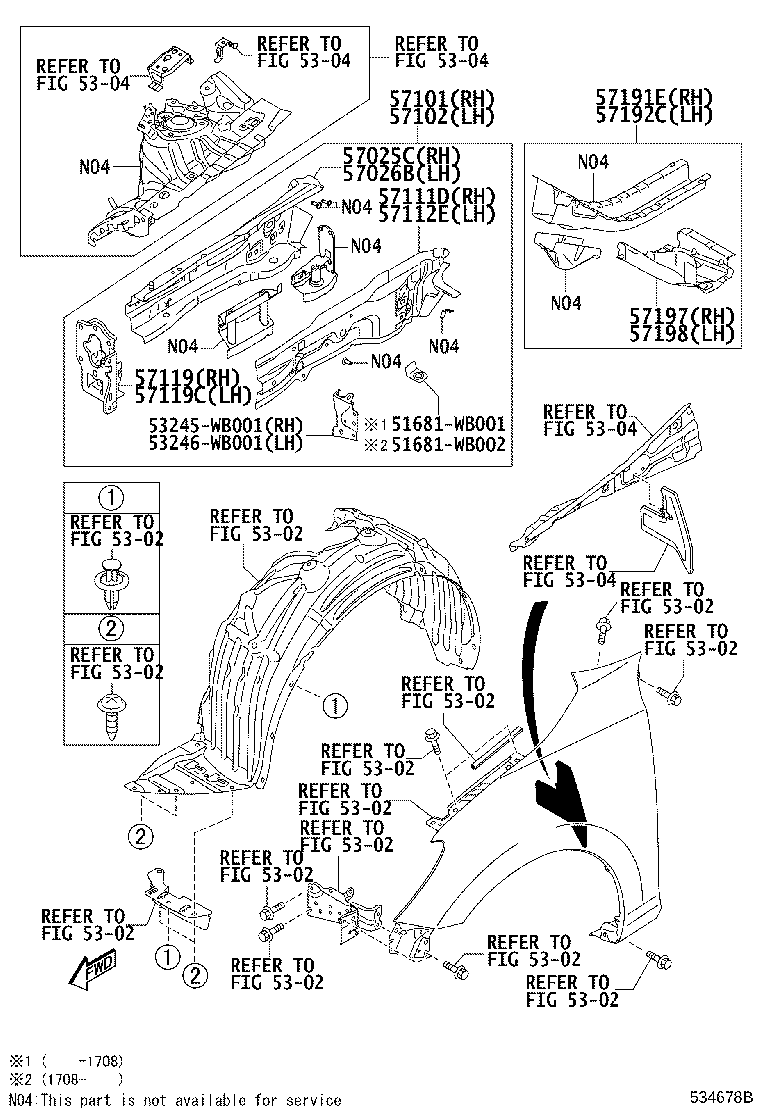

diagram 51681WB001 51681WB002 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5304 5304 5304 5304 5304 53245WB001 53246WB001 57025C 57026B 57101 57102 57111D 57112E 57119 57119C 57191E 57192C 57197 57198
Part # Description Qty Price
57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-WB001

DB7P,DD1B,DM0S,0T

 1
57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-WB001

DB7P,DD1B,DM0S,0T

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-WB001

DB7P,DD1B

 1
57101-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-WB001

DB7P,DD1B

 1
57102-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 1
57111D - MEMBER, FRONT SIDE, INNER RH
57111-WB001

DB7P,DD1B,DM0S,0T

 1
57112E - MEMBER, FRONT SIDE, INNER LH
57112-WB001

DB7P,DD1B,DM0S,0T

 1
57119 - PLATE, FRONT SIDE MEMBER, FRONT
57119-WB001

DB7P,DD1B,DM0S,0T

 1
57119C - PLATE, FRONT SIDE MEMBER, FRONT
57129-WB001

DB7P,DD1B,DM0S,0T

 1
57191E - MEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH
57191-WB001

DB7P,DD1B,DM0S,0T

 1
57192C - MEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH
57192-WB001

DB7P,DD1B,DM0S,0T

 1
57197 - BOX, TORQUE, FRONT RH
57197-WB001

DB7P,DD1B,DM0S,0T

 1
57198 - BOX, TORQUE, FRONT LH
57198-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
51681-WB001
51681-WB002
53245-WB001
53246-WB001
Linked diagrams
5302
5304
