DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

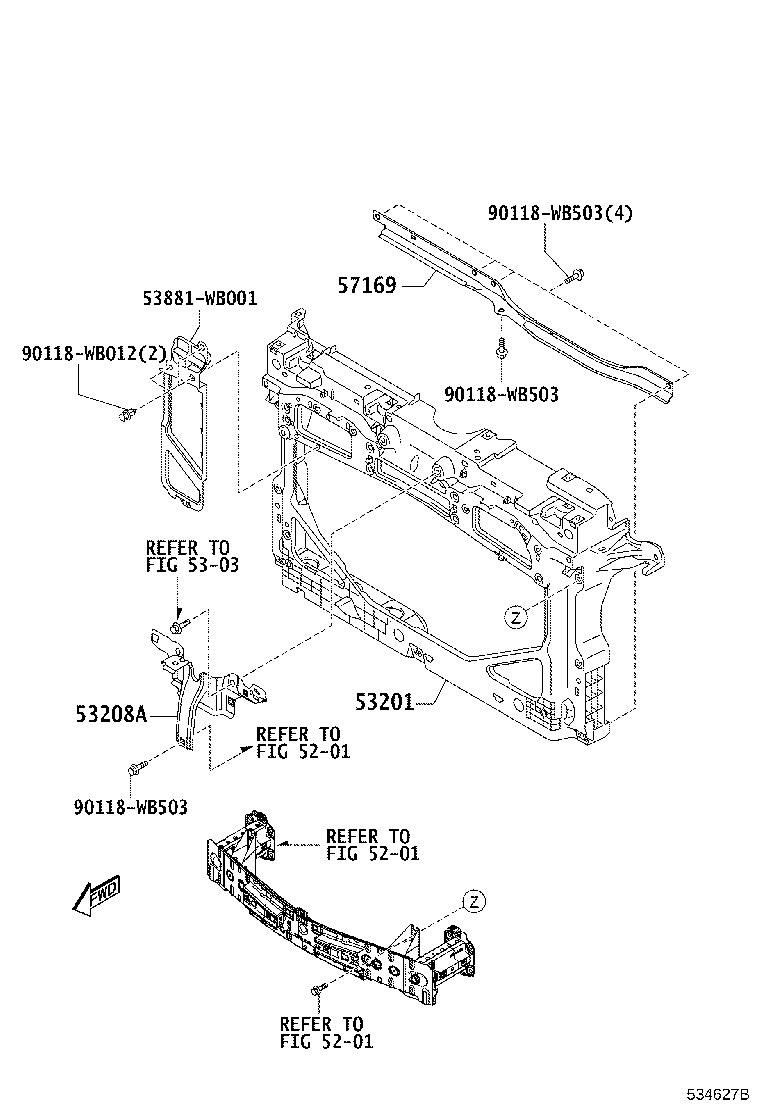

ILLUST NO. 1 OF 5(1506-1808)

Click highlighted areas on diagram

diagram 5201 5201 5201 5303 53201 53208A 53881WB001 57169 90118WB012 90118WB503 90118WB503 90118WB503
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-WB001

DB7P,DD1B

 1
53201-WB003

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-WB001

DB7P,DD1B,DM0S,0T

 1
57169 - MEMBER, FRONT FLOOR, FRONT RH
57169-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
53881-WB001
90118-WB012
90118-WB503
Linked diagrams
5201
5303

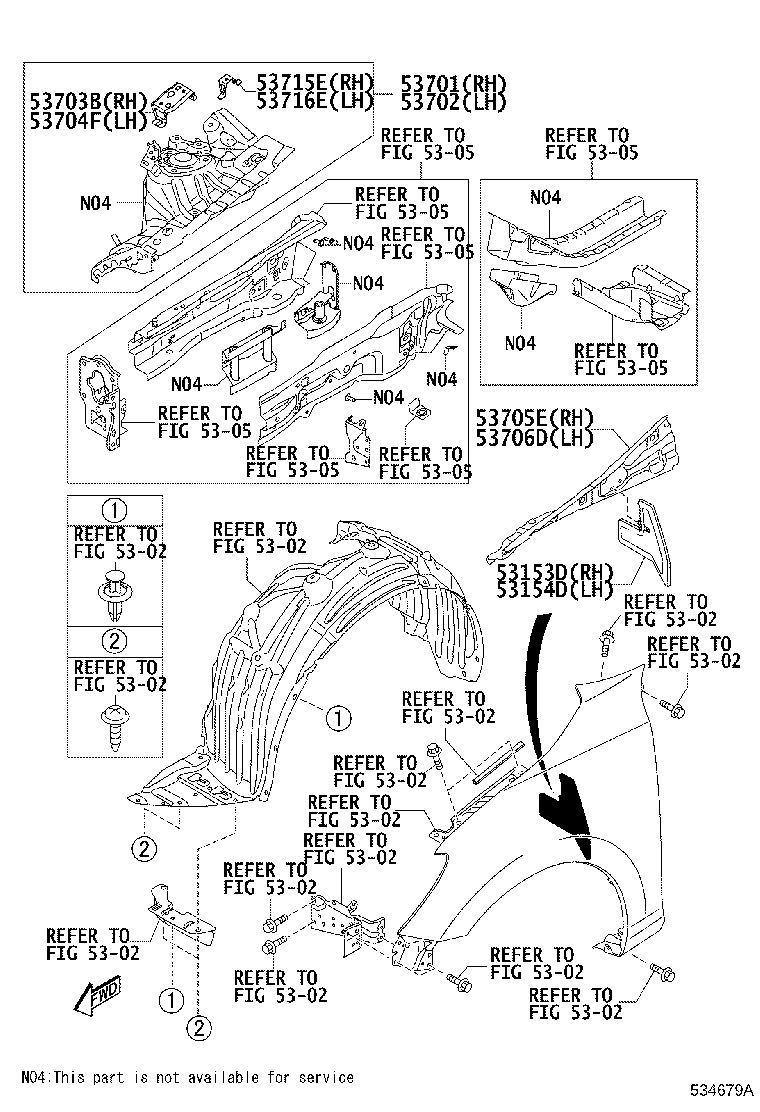

ILLUST NO. 2 OF 5(1506-1908)

Click highlighted areas on diagram

diagram 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5302 5305 5305 5305 5305 5305 5305 5305 5305 53153D 53154D 53701 53702 53703B 53704F 53705E 53706D 53715E 53716E
Part # Description Qty Price
53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-WB001

DB7P,DD1B,DM0S,0T

 2
53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53153-WB001

DB7P,DD1B,DM0S,0T

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-WB001

DB7P,DD1B,DM0S,0T

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-WB001

DB7P,DD1B,DM0S,0T

 1
53703B - RETAINER SUB-ASSY, FENDER APRON, RH
53703-WB001

DB7P,DD1B,DM0S,0T

 1
53704F - RETAINER SUB-ASSY, FENDER APRON, LH
53704-WB001

DB7P,DD1B,DM0S,0T

 1
53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53705-WB001

DB7P,DD1B,DM0S,0T

 1
53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53706-WB001

DB7P,DD1B,DM0S,0T

 1
53715E - EXTENSION, FRONT FENDER APRON, REAR RH
53715-WB001

DB7P,DD1B,DM0S,0T

 1
53716E - EXTENSION, FRONT FENDER APRON, REAR LH
53716-WB001

DB7P,DD1B,DM0S,0T

 1
Linked diagrams
5302
5305

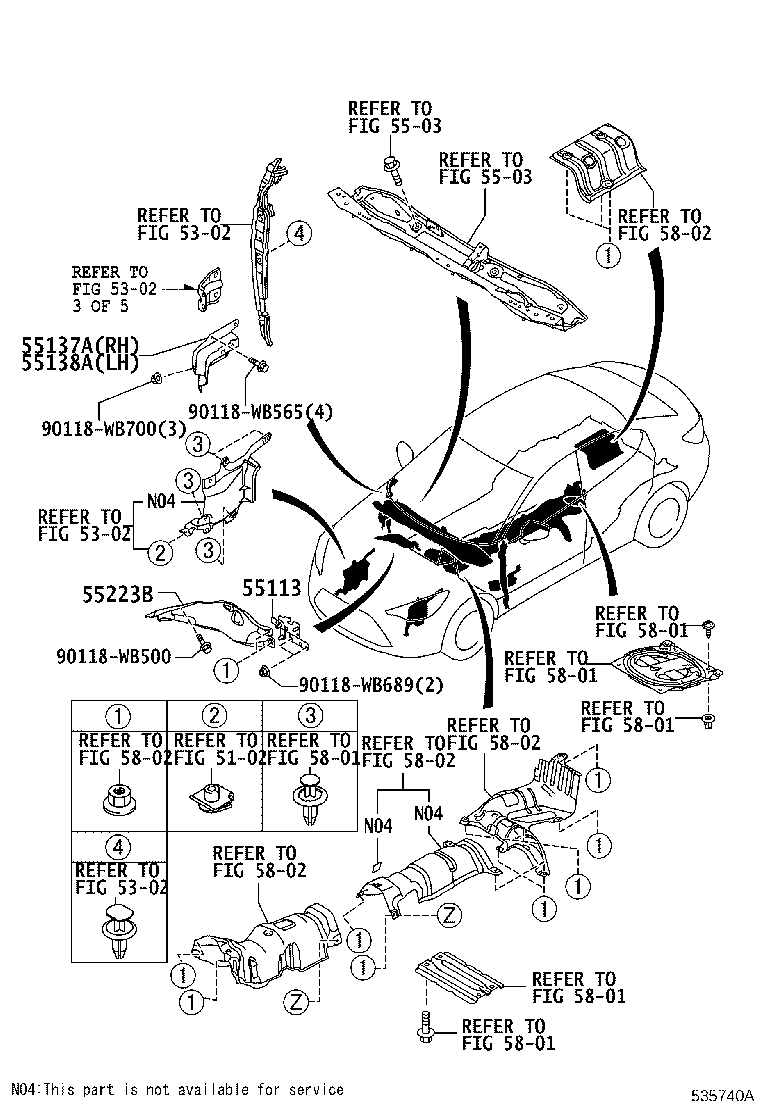

ILLUST NO. 4 OF 5(1506-1908)

Click highlighted areas on diagram

diagram 5102 5302 5302 5302 5503 5503 55113 55137A 55138A 55223B 5801 5801 5801 5801 5801 5801 5802 5802 5802 5802 5802 90118WB500 90118WB565 90118WB689 90118WB700
Part # Description Qty Price
55113 - PLATE, CLUTCH PEDAL SUPPORT MOUNTING
55113-WB001

DB7P,DD1B,DM0S,0T

 1
55137A - BRACE, DASH TO FRAME, RH
55137-WB001

DB7P,DD1B,DM0S,0T

 1
55138A - BRACE, DASH TO FRAME, LH
55138-WB001

DB7P,DD1B,DM0S,0T

 1
55223B - INSULATOR, DASH PANEL HEAT, NO.1
55223-WB002

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB500
90118-WB565
90118-WB689
90118-WB700
Linked diagrams
5102
5302
5503
5801
5802
