DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

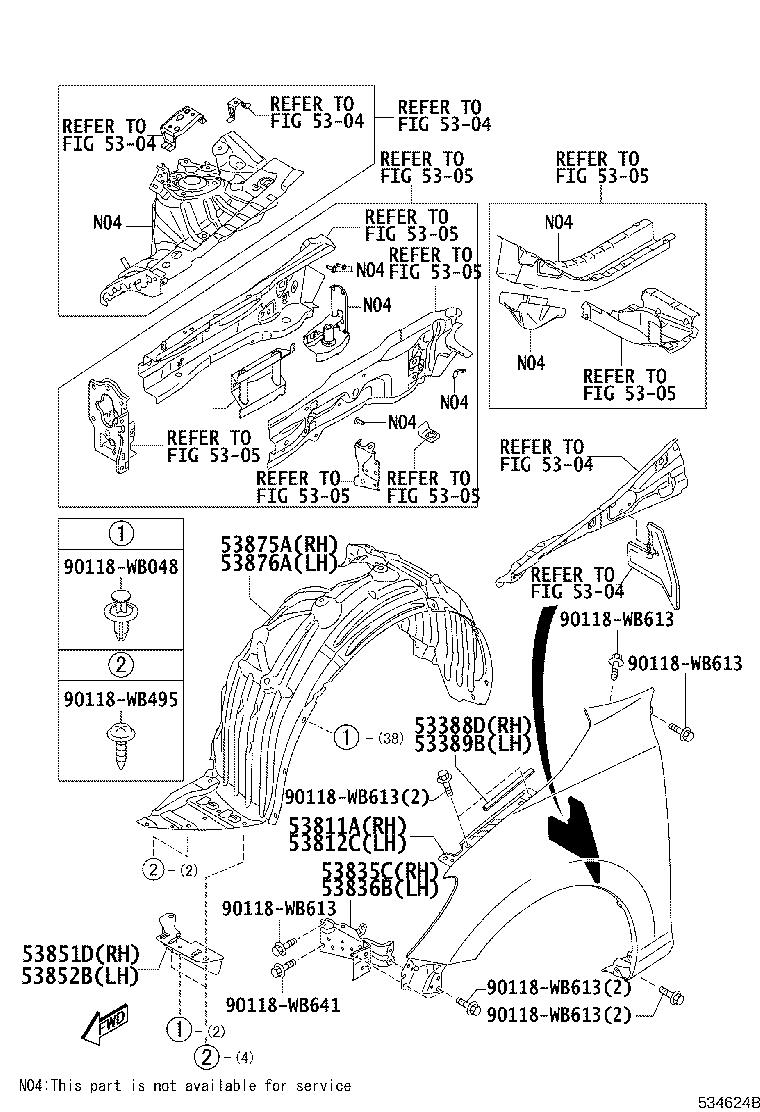

ILLUST NO. 2 OF 3(1506-1908)

Click highlighted areas on diagram

diagram 5304 5304 5304 5304 5304 5305 5305 5305 5305 5305 5305 5305 5305 53388D 53389B 53811A 53812C 53835C 53836B 53851D 53852B 53875A 53876A 90118WB048 90118WB495 90118WB613 90118WB613 90118WB613 90118WB613 90118WB613 90118WB613 90118WB641
Part # Description Qty Price
53388D - SEAL, HOOD TO FRONT FENDER, RH
53389-WB001

DB7P,DD1B,DM0S,0T

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-WB001

DB7P,DD1B,DM0S,0T

 1
53811A - PANEL, FRONT FENDER, RH
53811-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

WITHOUT(R-DOT LABEL)

 1
53811-WB002

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

WITH(R-DOT LABEL)

 1
53812C - PANEL, FRONT FENDER, LH
53812-WB002

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

WITH(R-DOT LABEL)

 1
53812-WB001

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

WITHOUT(R-DOT LABEL)

 1
53835C - BRACKET, FRONT SIDE PANEL, RH
53813-WB001

DB7P,DD1B,DM0S,0T

 1
53836B - BRACKET, FRONT SIDE PANEL, LH
53814-WB001

DB7P,DD1B,DM0S,0T

 1
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-WB001

DB7P,DD1B,DM0S,0T

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-WB001

DB7P,DD1B,DM0S,0T

 1
53875A - LINER, FRONT FENDER, RH
53875-WB001

DB7P,DD1B,DM0S,0T

 1
53876A - LINER, FRONT FENDER, LH
53876-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB048
90118-WB495
90118-WB613
90118-WB641
Linked diagrams
5304
5305

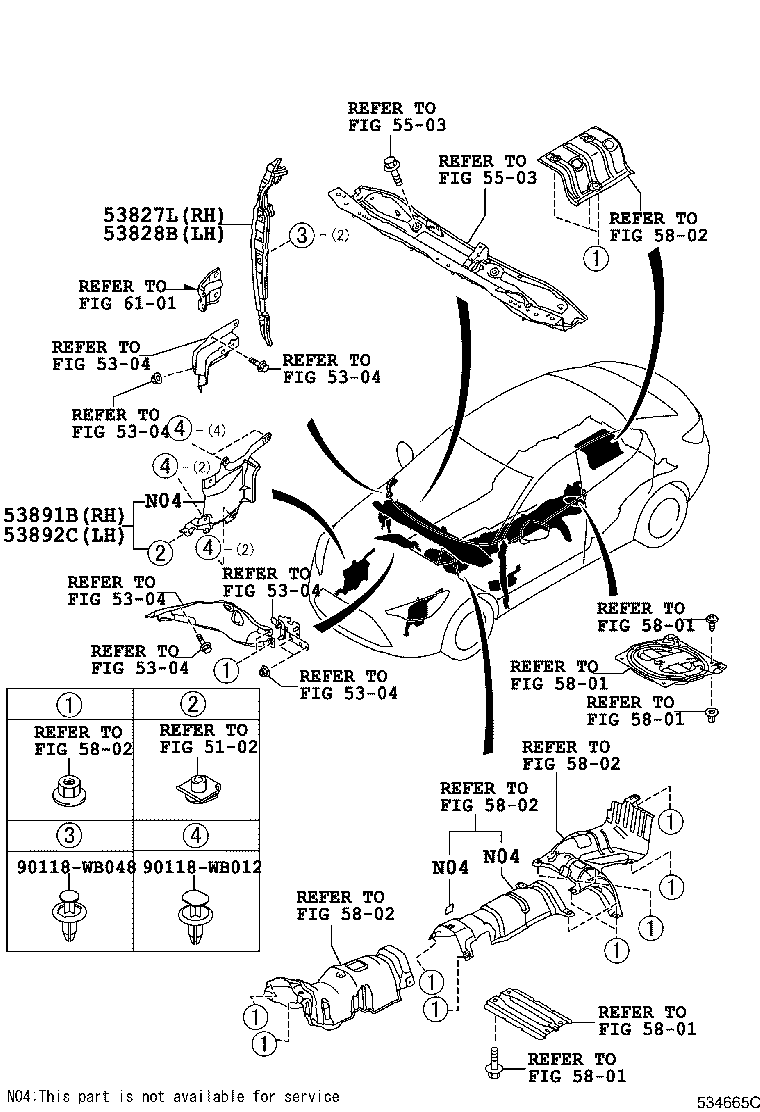

ILLUST NO. 3 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 5102 5304 5304 5304 5304 5304 5304 5304 53827L 53828B 53891B 53892C 5503 5503 5801 5801 5801 5801 5801 5802 5802 5802 5802 5802 6101 90118WB012 90118WB048
Part # Description Qty Price
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-WB001

DB7P,DD1B,DM0S,0T

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-WB001

DB7P,DD1B,DM0S,0T

 1
53891B - SEAL, FRONT FENDER SPLASH SHIELD, FRONT RH
53891-WB001

DB7P,DD1B,DM0S,0T

 1
53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
53892-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB012
90118-WB048
Linked diagrams
5102
5304
5503
5801
5802
