DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1808)

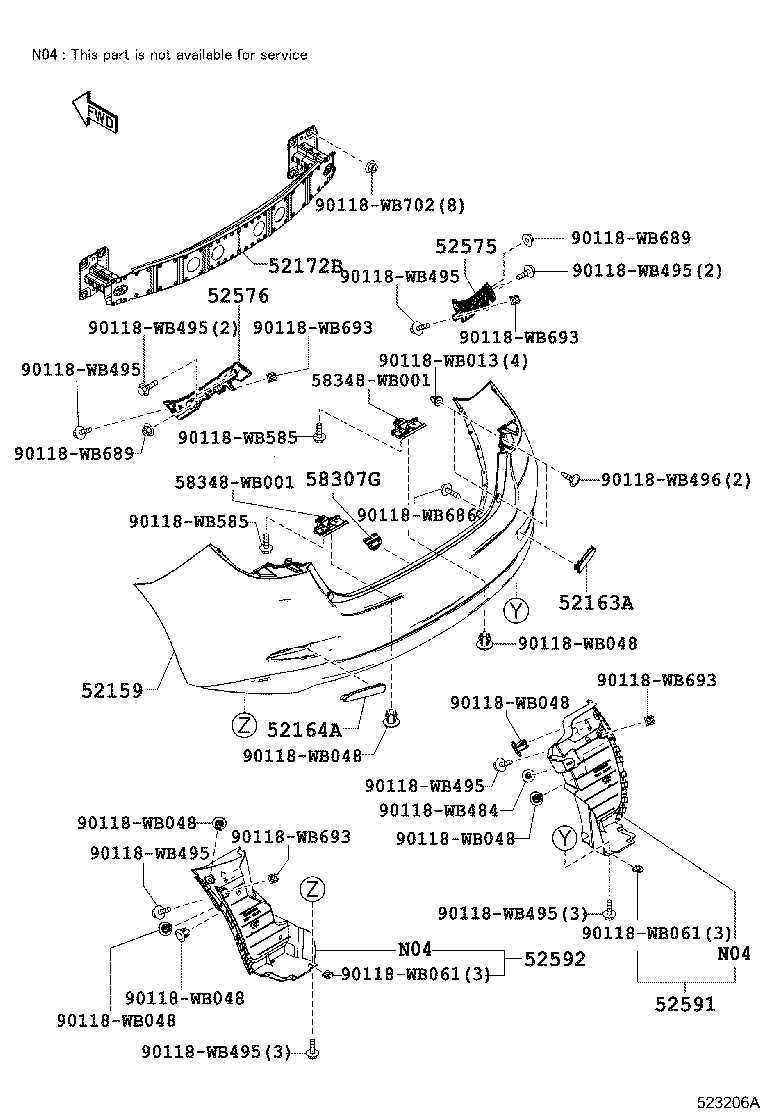

Click highlighted areas on diagram

diagram 52159 52163A 52164A 52172B 52575 52576 52591 52592 58307G 58348WB001 58348WB001 90118WB013 90118WB048 90118WB048 90118WB048 90118WB048 90118WB048 90118WB048 90118WB048 90118WB061 90118WB061 90118WB484 90118WB495 90118WB495 90118WB495 90118WB495 90118WB495 90118WB495 90118WB495 90118WB495 90118WB496 90118WB585 90118WB585 90118WB686 90118WB689 90118WB689 90118WB693 90118WB693 90118WB693 90118WB693 90118WB702
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-WB003

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
52159-WB001

DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

MATERIAL (PAINT TO MATCH),41G ,41W ,42A ,42M ,44J ,45P ,47A ,A4D

 1
52163A - PLATE, REAR BUMPER, RH
52163-WB002

DB7P,DD1B,DM0S,0T

 1
52164A - PLATE, REAR BUMPER, LH
52164-WB002

DB7P,DD1B,DM0S,0T

 1
52172B - REINFORCEMENT, REAR BUMPER, NO.2
52172-WB001

DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-WB001

DB7P,DD1B,DM0S,0T

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-WB001

DB7P,DD1B,DM0S,0T

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-WB001

DB7P,DD1B,DM0S,0T

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-WB001

DB7P,DD1B,DM0S,0T

 1
58307G - RETAINER SUB-ASSY, BACK DOOR LOCK STRIKER
58309-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
58348-WB001
90118-WB013
90118-WB048
90118-WB061
90118-WB484
90118-WB495
90118-WB496
90118-WB585
90118-WB686
90118-WB689
90118-WB693
90118-WB702
