DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

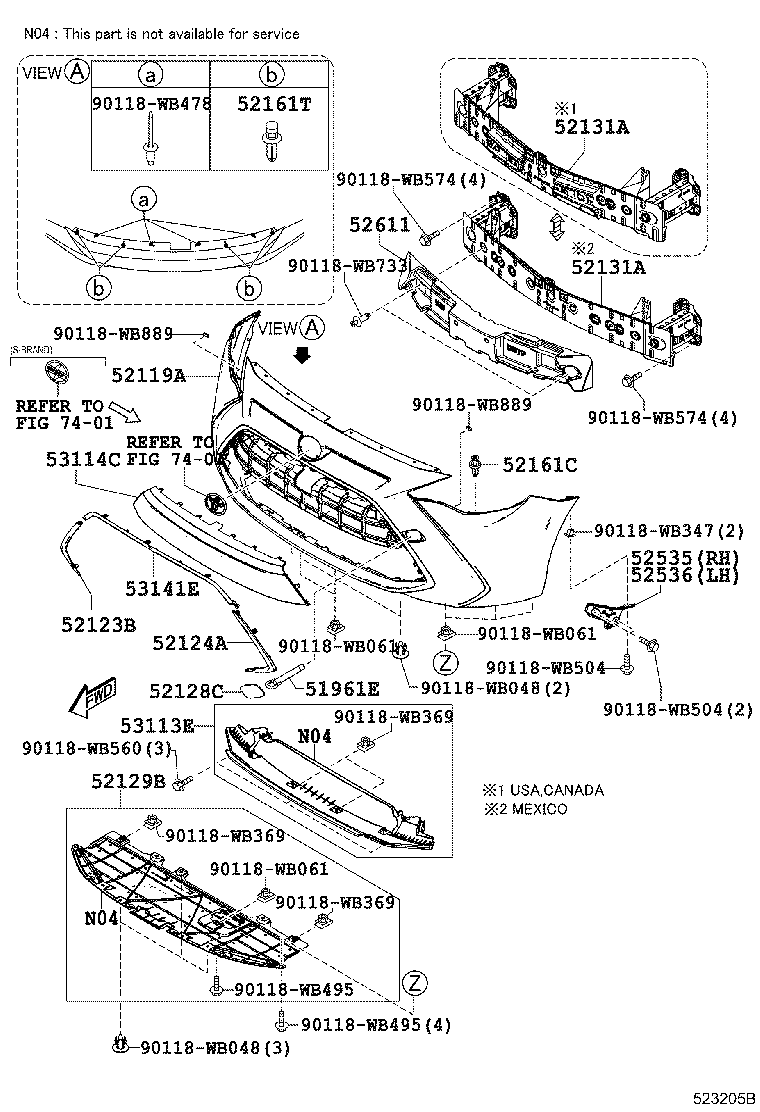

ILLUST NO. 1 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 51961E 52119A 52123B 52124A 52128C 52129B 52131A 52131A 52161C 52161T 52535 52536 52611 53113E 53114C 53141E 7401 7401 90118WB048 90118WB048 90118WB061 90118WB061 90118WB061 90118WB347 90118WB369 90118WB369 90118WB369 90118WB478 90118WB495 90118WB495 90118WB504 90118WB504 90118WB560 90118WB574 90118WB574 90118WB733 90118WB889 90118WB889
Part # Description Qty Price
51961E - HOOK, FRONT
51961-WB001

DB7P,DD1B,DM0S,0T

 1
52119A - COVER, FRONT BUMPER
52119-WB005

DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

WITH(R-DOT LABEL)

 1
52119-WB006

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

WITHOUT(R-DOT LABEL)

 1
52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH
53123-WB001

DB7P,DD1B,DM0S,0T

 1
52124A - PLATE, FRONT BUMPER REINFORCEMENT
53124-WB001

DB7P,DD1B,DM0S,0T

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

MATERIAL (PAINT TO MATCH),41G ,41W ,42A ,42M ,44J ,45P ,A4D

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-WB001

DB7P,DD1B,DM0S,0T

 1
52161C - PIECE, FRONT BUMPER
52161-WB001

DB7P,DD1B,DM0S,0T

 2
52161T - PIECE, FRONT BUMPER
90118-WB477

DB7P,DD1B,DM0S,0T

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-WB002

DB7P,DD1B,DM0S,0T

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-WB002

DB7P,DD1B,DM0S,0T

 1
53113E - GRILLE, RADIATOR, LOWER NO.2
53113-WB001

DB7P,DD1B,DM0S,0T

 1
53114C - GRILLE, RADIATOR, INNER
53114-WB003

DB7P,DD1B,DM0S,0T

 1
53141E - COVER, RADIATOR, NO.1
53141-WB002

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB048
90118-WB061
90118-WB347
90118-WB369
90118-WB478
90118-WB495
90118-WB504
90118-WB560
90118-WB574
90118-WB733
90118-WB889
Linked diagrams
7401

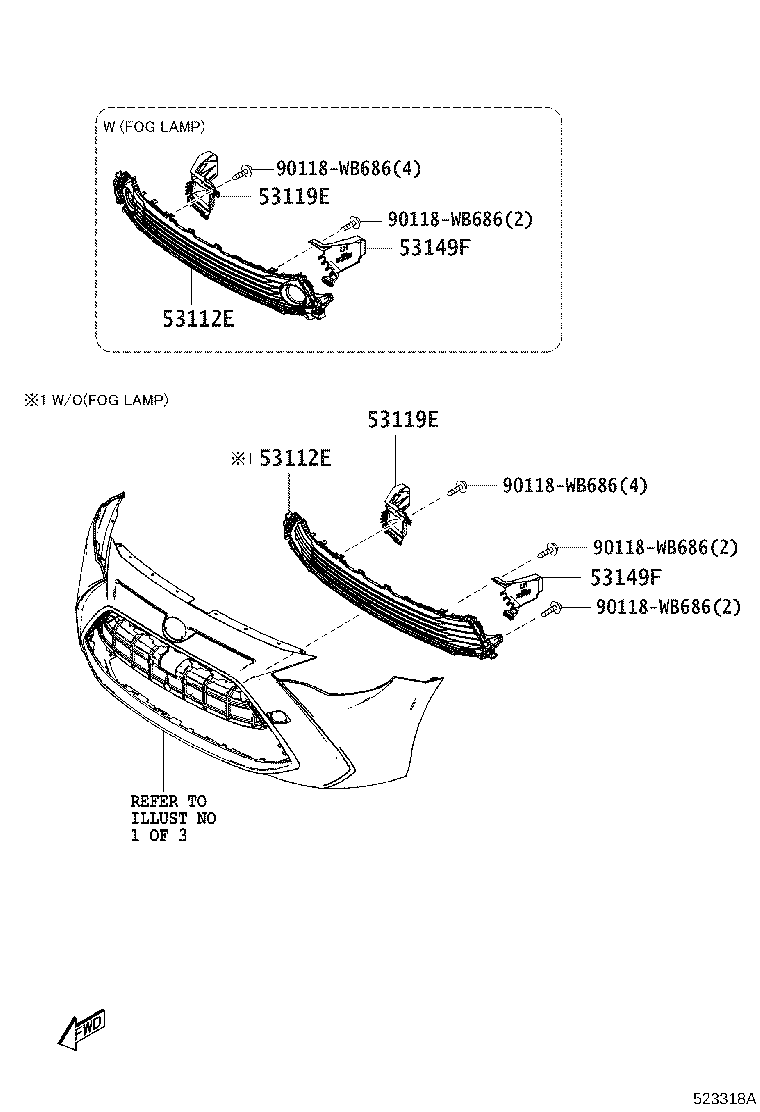

ILLUST NO. 2 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 53112E 53112E 53119E 53119E 53149F 53149F 90118WB686 90118WB686 90118WB686 90118WB686 90118WB686
Part # Description Qty Price
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-WB005

DB7P,DD1B,DM0S,0T..BASE

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-WB005

DB7P,DD1B,DM0S,0T..BASE

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-WB001

DB7P,DD1B,DM0S,0T

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-WB001

DB7P,DD1B,DM0S,0T

 1
53149F - PROTECTOR, RADIATOR GRILLE, LH
53149-WB001

DB7P,DD1B,DM0S,0T

 1
53149F - PROTECTOR, RADIATOR GRILLE, LH
53149-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB686

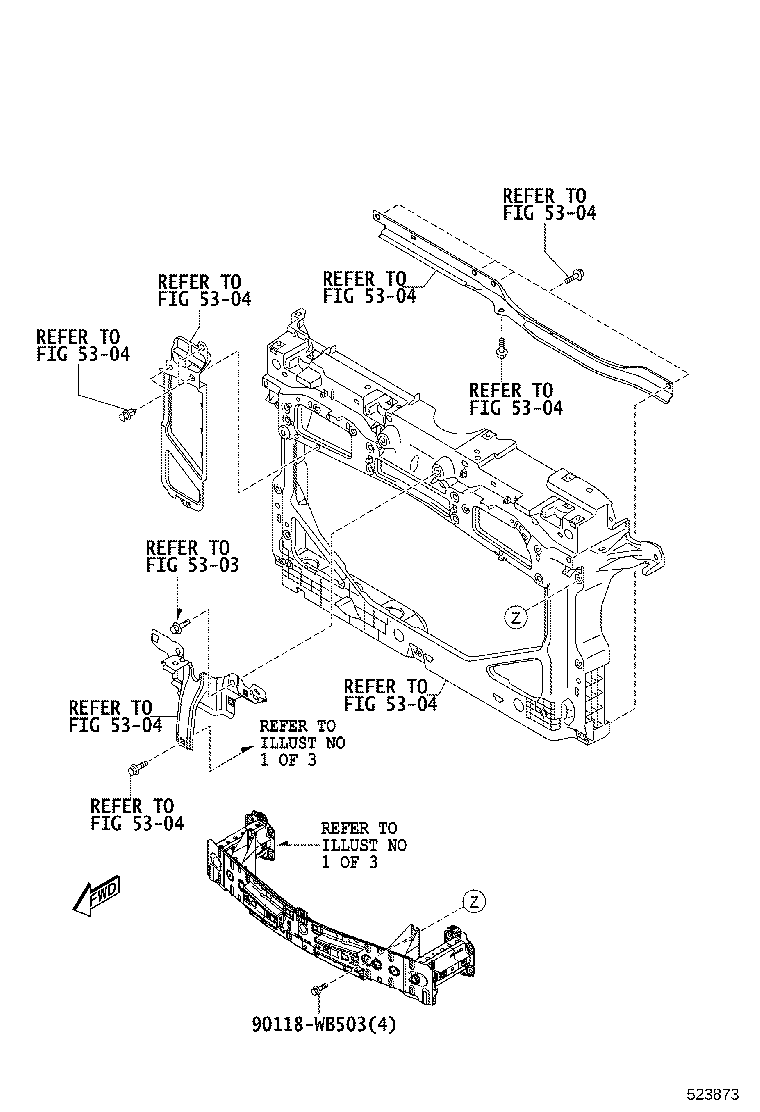

ILLUST NO. 3 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 5303 5304 5304 5304 5304 5304 5304 5304 5304 90118WB503
Part # Description Qty Price
Common parts
90118-WB503
Linked diagrams
5303
5304
