DB7P-NAL (2016)
Toyota Scion Ia/Yaris R/Ia

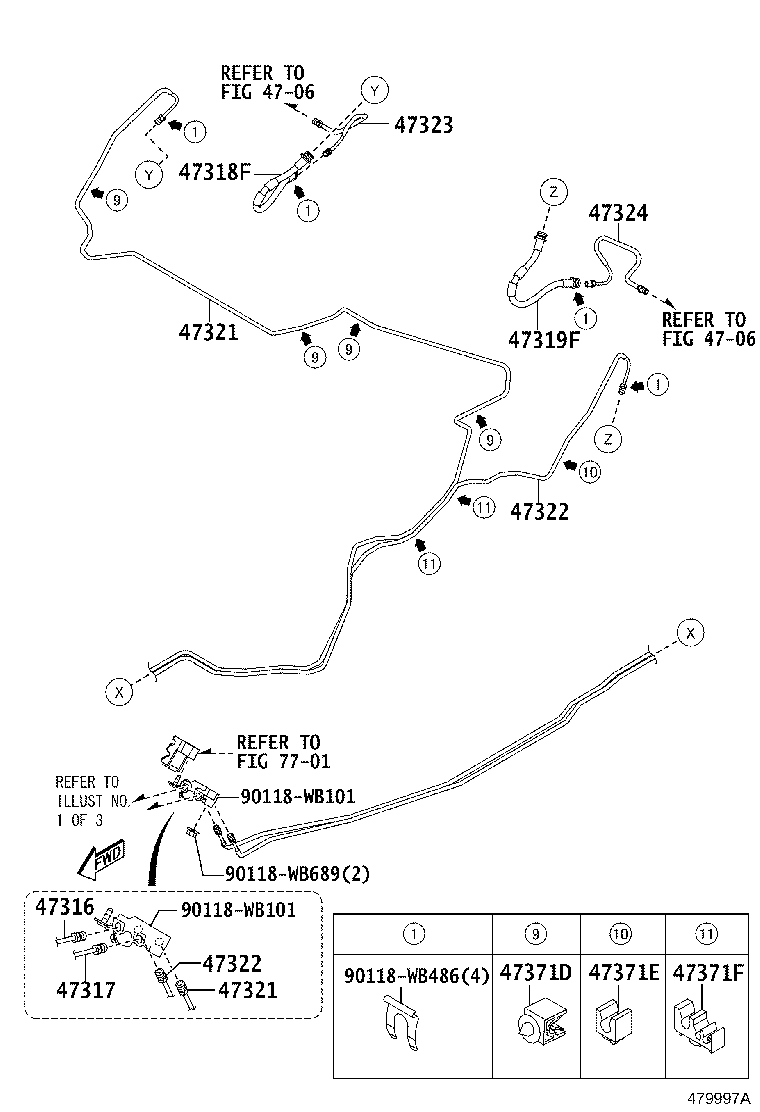

ILLUST NO. 2 OF 3(1506-1808)
REAR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47316-WB001 |
DB7P,DD1B |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47317-WB001 |
DB7P,DD1B |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90118-WB079 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90118-WB079 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90118-WB401 |
DB7P,DD1B,DM0S,0T |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90118-WB093 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90118-WB345 |
DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T |
2 | ||
| Common parts | ||||
| 90118-WB101 | ||||
| 90118-WB486 | ||||
| 90118-WB689 | ||||
| Linked diagrams | ||||
| 4706 | ||||
| 7701 | ||||

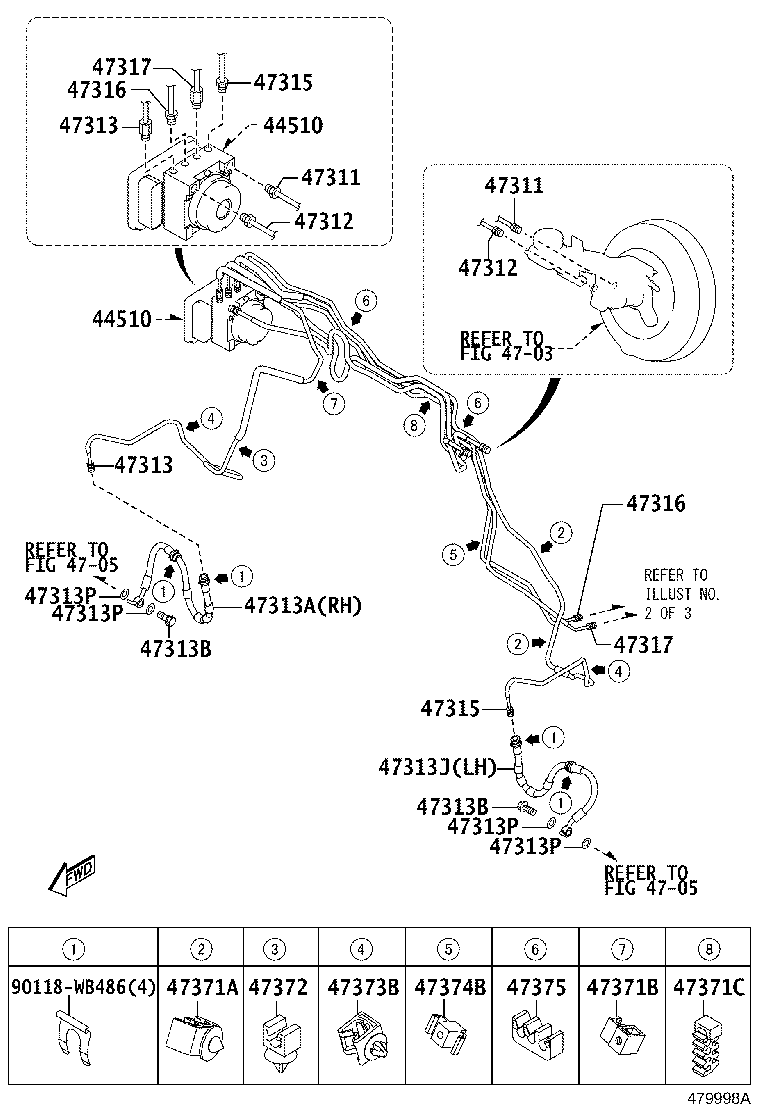

ILLUST NO. 1 OF 3(1506-1808)
FRONT SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-WB001 |
DB7P,DD1B |
1 | ||
| 47311-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-WB001 |
DB7P,DD1B |
1 | ||
| 47311-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-WB001 |
DB7P,DD1B |
1 | ||
| 47312-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-WB001 |
DB7P,DD1B |
1 | ||
| 47312-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47313-WB001 |
DB7P,DD1B |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47313-WB001 |
DB7P,DD1B |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 47330-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90118-WB029 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90118-WB029 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 47340-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90118-WB665 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90118-WB665 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90118-WB665 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90118-WB665 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47315-WB001 |
DB7P,DD1B |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47315-WB001 |
DB7P,DD1B |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47316-WB001 |
DB7P,DD1B |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47316-WB001 |
DB7P,DD1B |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47317-WB001 |
DB7P,DD1B |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 47317-WB001 |
DB7P,DD1B |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90118-WB099 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90118-WB070 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90118-WB072 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90118-WB355 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90118-WB004 |
DB7P,DD1B,DM0S,0T |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90118-WB071 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90118-WB136 |
DB7P,DD1B,DM0S,0T |
2 | ||
| Common parts | ||||
| 90118-WB486 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4705 | ||||

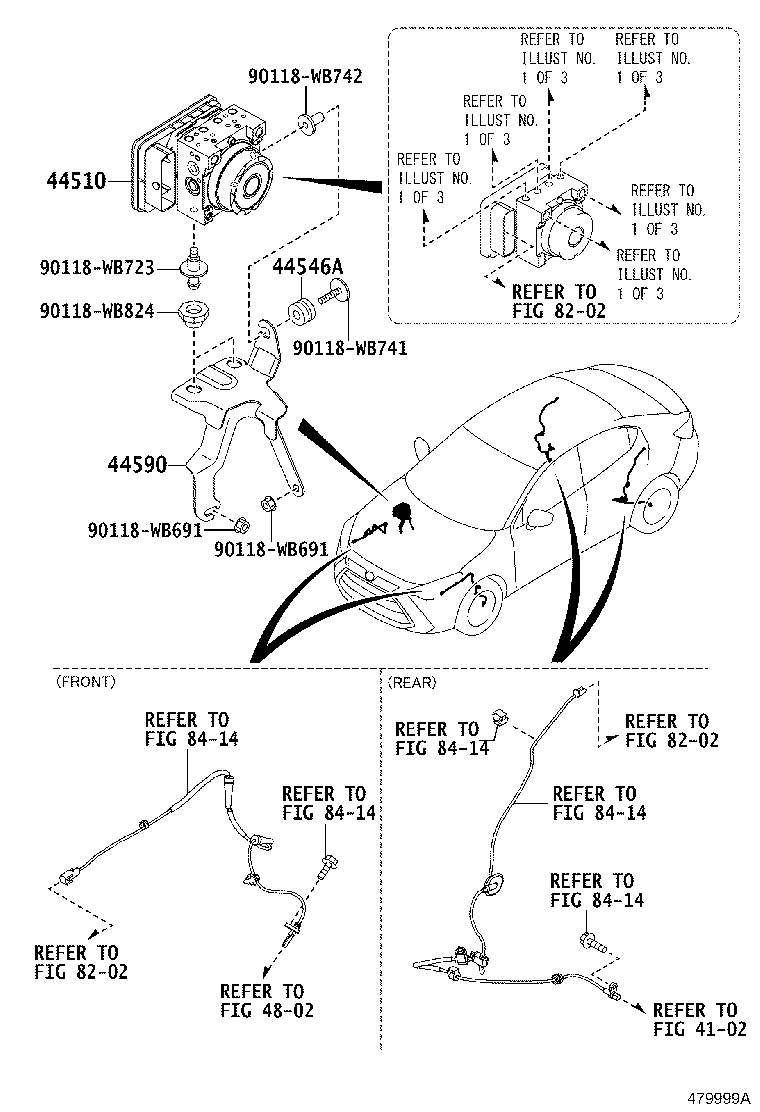

ILLUST NO. 3 OF 3(1506-1808)DB7P,DD1B,DM0S,0T ; (1808- )DDF# ;(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-WB001 |
DB7P,DD1B |
1 | ||
| 44590-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB691 | ||||
| 90118-WB723 | ||||
| 90118-WB741 | ||||
| 90118-WB742 | ||||
| 90118-WB824 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 4802 | ||||
| 8202 | ||||
| 8414 | ||||
