DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

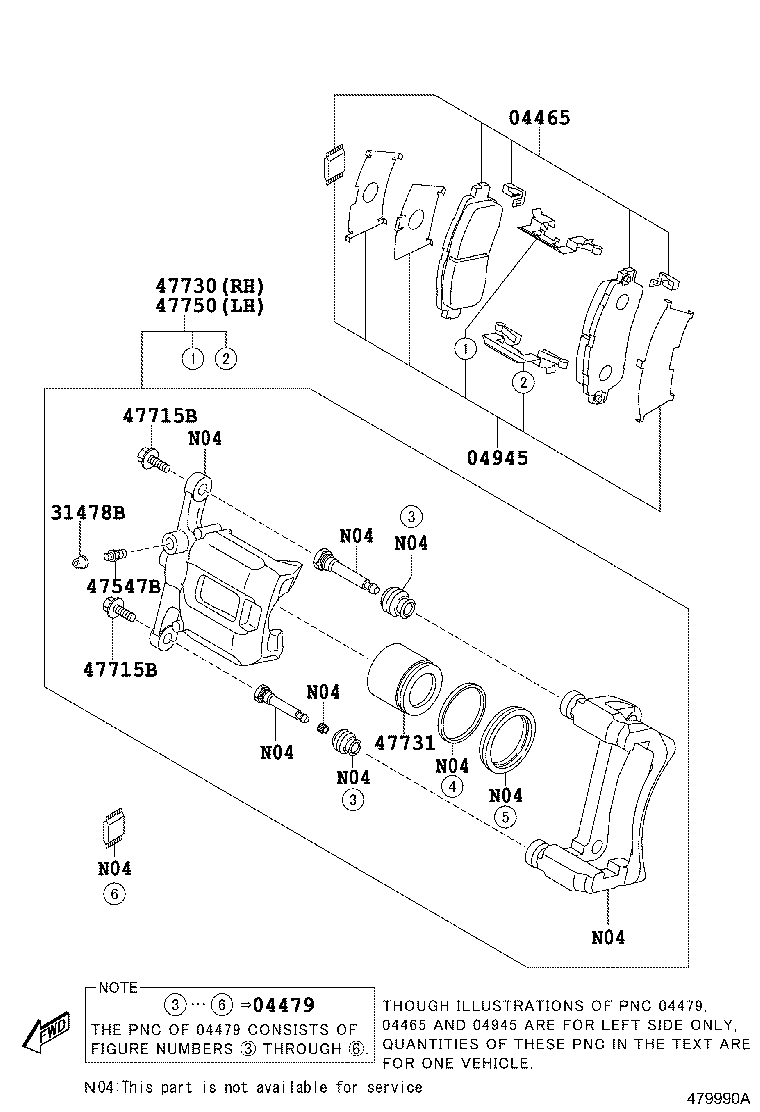

ILLUST NO. 1 OF 2(1506-1808)

Click highlighted areas on diagram

diagram 04465 04479 04945 31478B 47547B 47715B 47715B 47730 47731 47750
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-WB001

DB7P,DD1B,DM0S,0T

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-WB001

DB7P,DD1B,DM0S,0T

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-WB004

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-WB002

DB7P,DD1B,DM0S,0T

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-WB001

DB7P,DD1B,DM0S,0T

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90118-WB073

DB7P,DD1B,DM0S,0T

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90118-WB073

DB7P,DD1B,DM0S,0T

 4
47731 - PISTON, FRONT DISC BRAKE
47731-WB001

DB7P,DD1B,DM0S,0T

 2
