DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1808)

Click highlighted areas on diagram

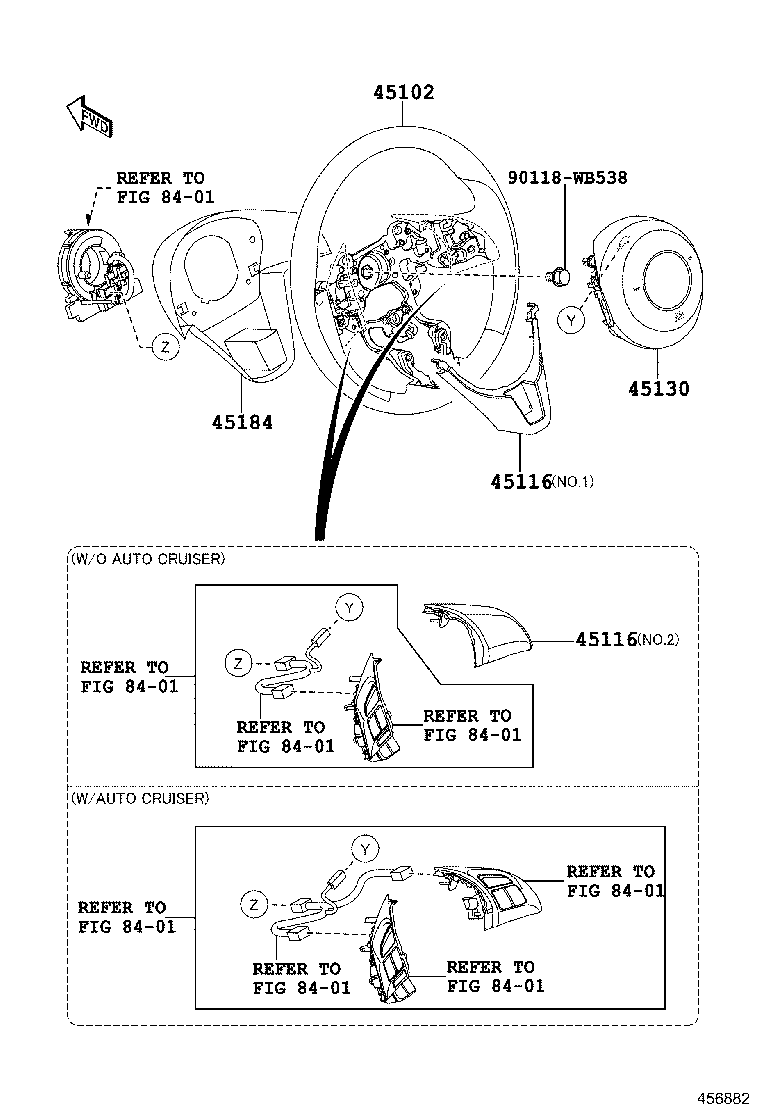

diagram 45102 45116 45116 45130 45184 8401 8401 8401 8401 8401 8401 8401 8401 90118WB538
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-WB001

DD1B;DM0T..A,B,C,E;DB7P,DM0S..A,B,C,D,E,G,H,J,L

BLACK,TRIM70,80

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-WB001

DB7P,DD1B,DM0S,0T..PUE

BLACK,TRIM70,80,NO.2

 1
45116-WB003

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80,NO.1

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-WB001

DB7P,DD1B,DM0S,0T..PUE

BLACK,TRIM70,80,NO.2

 1
45116-WB003

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80,NO.1

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
Common parts
90118-WB538
Linked diagrams
8401
