DB7P-NAL (2016)
Toyota Scion Ia/Yaris R/Ia

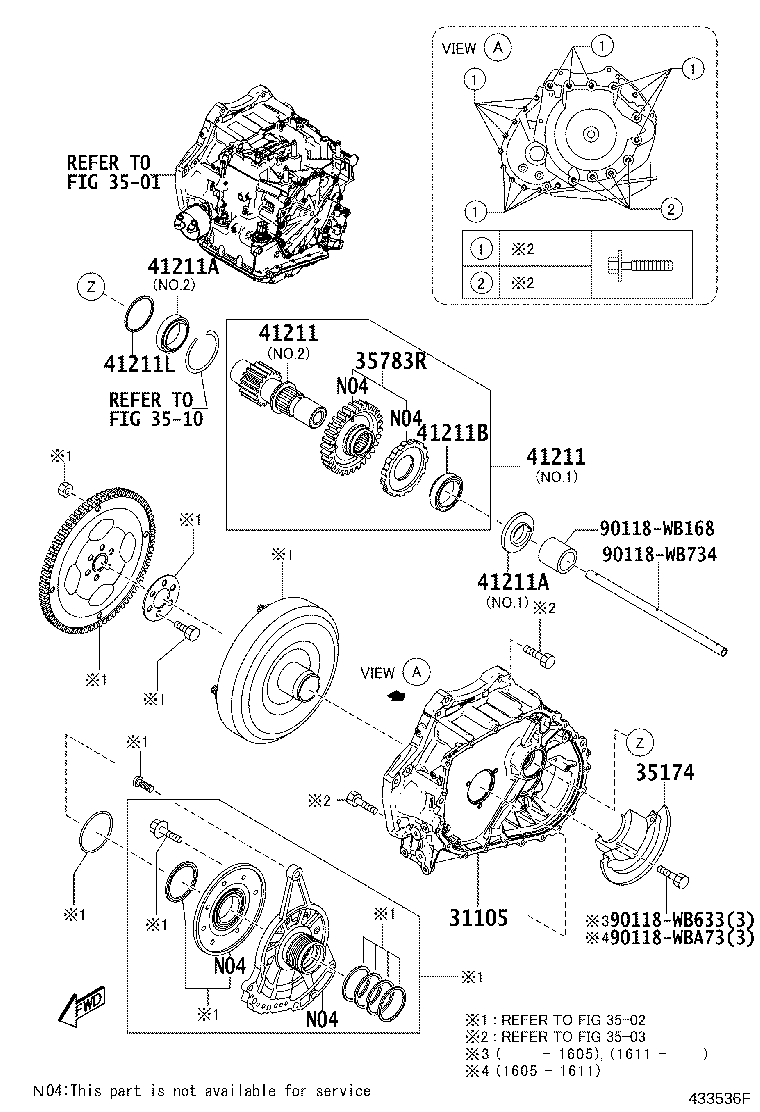

ILLUST NO. 2 OF 2(1506-1708)DB7P,DD1D
6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35174 - SEPARATOR, TRANSAXLE HOUSING OIL | ||||
| 35174-WB001 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T |
1 | ||
| 35783R - GEAR, COUNTER DRIVEN | ||||
| 35783-WB001 |
DAEA1,DAEC1,DAEE1,DB7P,DD1D,F5,F9,DM0T,0W |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-WB004 |
DAEA1,DAEC1,DB7P,DDF5,DM0T NO.2 |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-WB004 |
DAEA1,DAEC1,DB7P,DDF5,DM0T NO.2 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90118-WB172 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T NO.2 |
1 | ||
| 90118-WB852 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T NO.1 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90118-WB172 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T NO.2 |
1 | ||
| 90118-WB852 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T NO.1 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90118-WB167 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90118-WB230 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.50 |
1 | ||
| 90118-WB232 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.60 |
1 | ||
| 90118-WB231 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.55 |
1 | ||
| 90118-WB235 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.75 |
1 | ||
| 90118-WB233 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.65 |
1 | ||
| 90118-WB242 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.10 |
1 | ||
| 90118-WB238 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.90 |
1 | ||
| 90118-WB246 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.30 |
1 | ||
| 90118-WB234 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.70 |
1 | ||
| 90118-WB247 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.35 |
1 | ||
| 90118-WB236 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.80 |
1 | ||
| 90118-WB249 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.45 |
1 | ||
| 90118-WB239 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.95 |
1 | ||
| 90118-WB245 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.25 |
1 | ||
| 90118-WB237 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=0.85 |
1 | ||
| 90118-WB240 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.00 |
1 | ||
| 90118-WB243 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.15 |
1 | ||
| 90118-WB248 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.40 |
1 | ||
| 90118-WB241 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.05 |
1 | ||
| 90118-WB244 |
DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T T=1.20 |
1 | ||
| Common parts | ||||
| 90118-WB168 | ||||
| 90118-WB633 | ||||
| 90118-WB734 | ||||
| 90118-WBA73 | ||||
| Linked diagrams | ||||
| 3501 | ||||
| 3510 | ||||
