DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1908)DB7P,DD1D,F5,F9,DM0T,0W

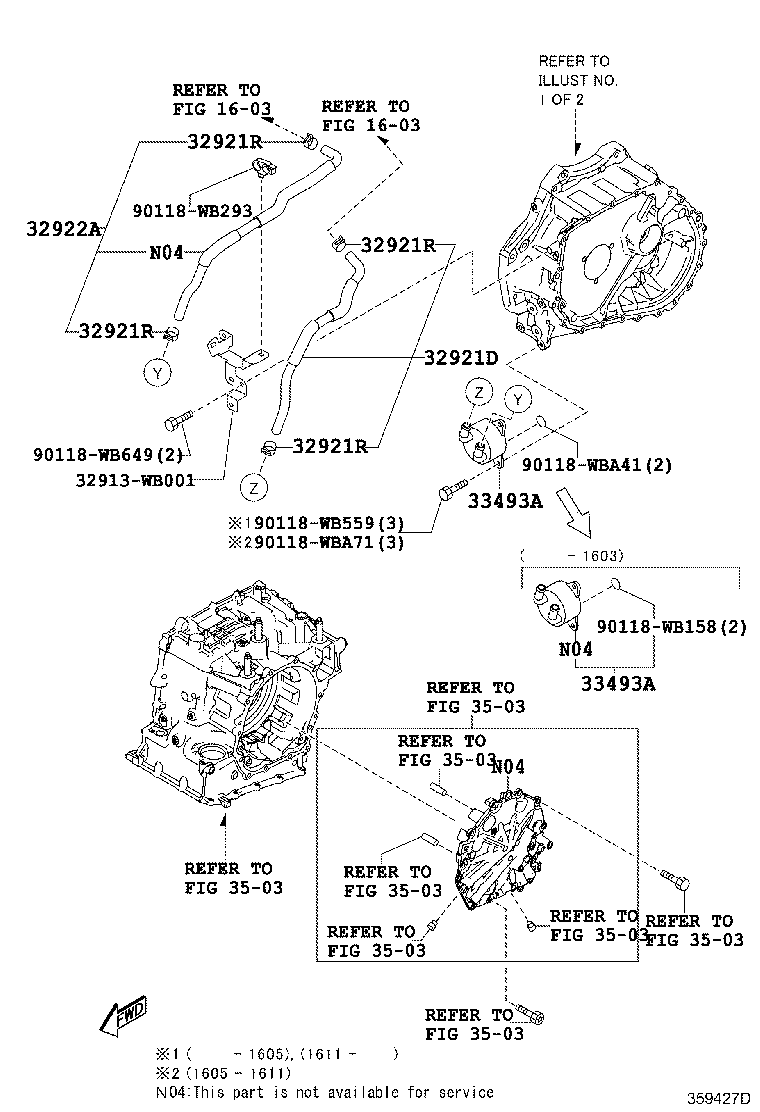

Click highlighted areas on diagram

diagram 1603 1603 32913WB001 32921D 32921R 32921R 32921R 32921R 32922A 33493A 33493A 3503 3503 3503 3503 3503 3503 3503 3503 90118WB158 90118WB293 90118WB559 90118WB649 90118WBA41 90118WBA71
Part # Description Qty Price
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90118-WB409

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

NO.2

 2
90118-WB492

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

NO.1

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90118-WB409

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

NO.2

 2
90118-WB492

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

NO.1

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90118-WB409

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

NO.2

 2
90118-WB492

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

NO.1

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90118-WB409

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

NO.2

 2
90118-WB492

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

NO.1

 2
33493A - COOLER, TRANSMISSION OIL
33493-WB002

DAEA1,DAEC1,DAEE1,DB7P,DD1D,F5,F9,DM0T,0W

 1
33493A - COOLER, TRANSMISSION OIL
33493-WB002

DAEA1,DAEC1,DAEE1,DB7P,DD1D,F5,F9,DM0T,0W

 1
Common parts
32913-WB001
90118-WB158
90118-WB293
90118-WB559
90118-WB649
90118-WBA41
90118-WBA71
Linked diagrams
1603
3503
