DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1708)DB7P,DD1D

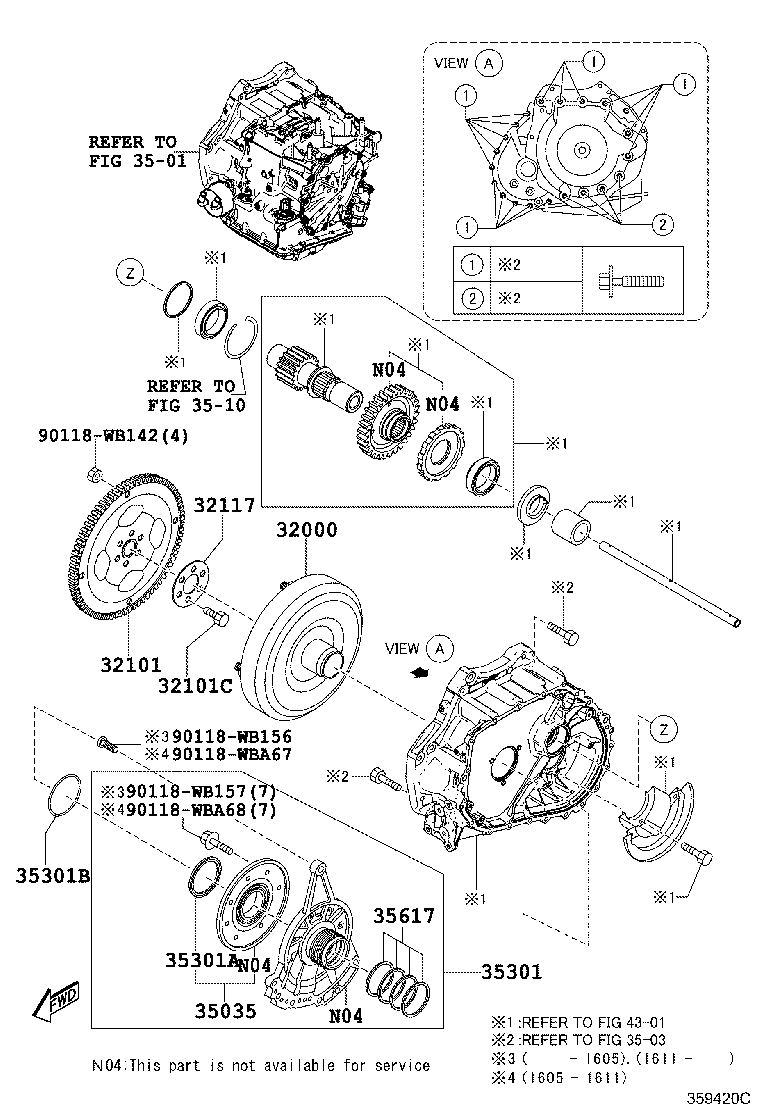

Click highlighted areas on diagram

diagram 32000 32101 32101C 32117 3501 35035 3510 35301 35301A 35301B 35617 90118WB142 90118WB156 90118WB157 90118WBA67 90118WBA68
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-WB001

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-WB003

DAEA1,DAEC1,DAEE1,DB7P,DD1D,F5,F9,DM0T,0W

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90118-WB536

DAEA1,DAEC1,DAEE1,DB7P,DM0T

 6
32117 - SPACER, DRIVE PLATE, REAR
32117-WB001

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90118-WB148

DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90118-WB149

DAEA1,DAEC1,DAEE1,DB7P,DD1D,F5,F9,DM0T,0W

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35613-WB001

DAEA1,DAEC1,DAEE1,DB7P,DD1D,F5,F9,DM0T,0W

 4
Common parts
90118-WB142
90118-WB156
90118-WB157
90118-WBA67
90118-WBA68
Linked diagrams
3501
3510
