DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

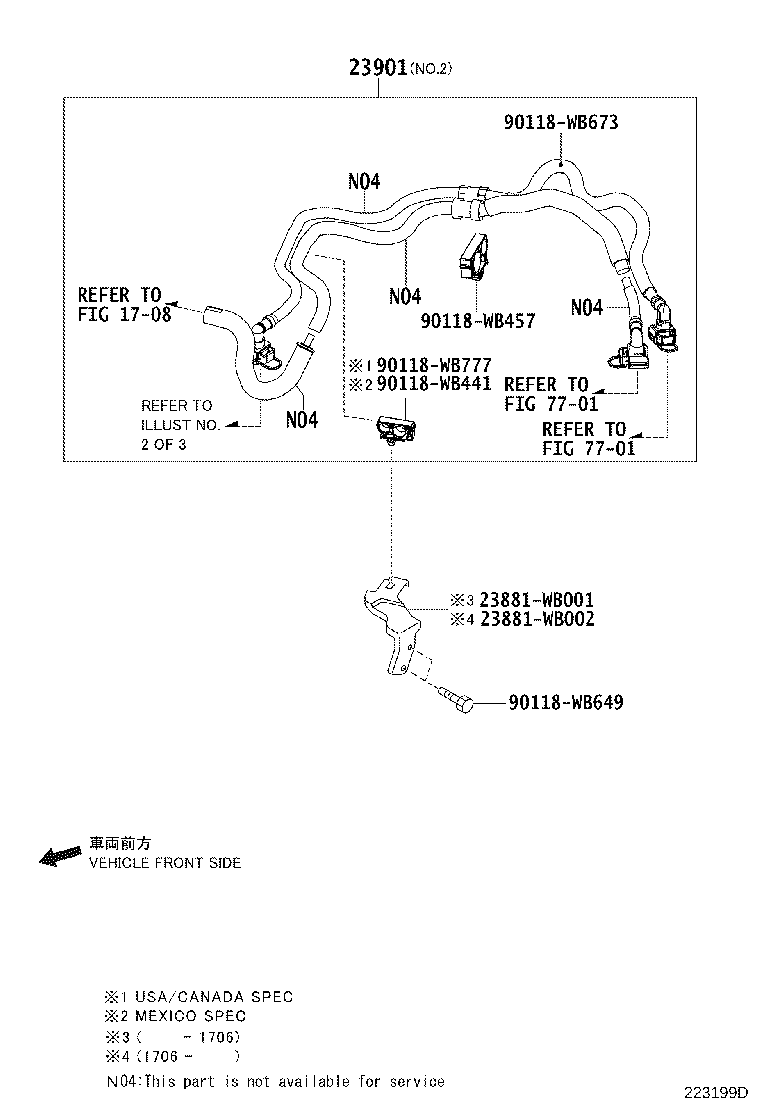

ILLUST NO. 1 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 1708 23881WB001 23881WB002 23901 7701 7701 90118WB441 90118WB457 90118WB649 90118WB673 90118WB777
Part # Description Qty Price
23901 - TUBE SUB-ASSY, FUEL
23901-WB002

P5..DB7P,DD1B,DM0S,0T

NO.2

 1
23901-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

NO.1

 1
Common parts
23881-WB001
23881-WB002
90118-WB441
90118-WB457
90118-WB649
90118-WB673
90118-WB777
Linked diagrams
1708
7701

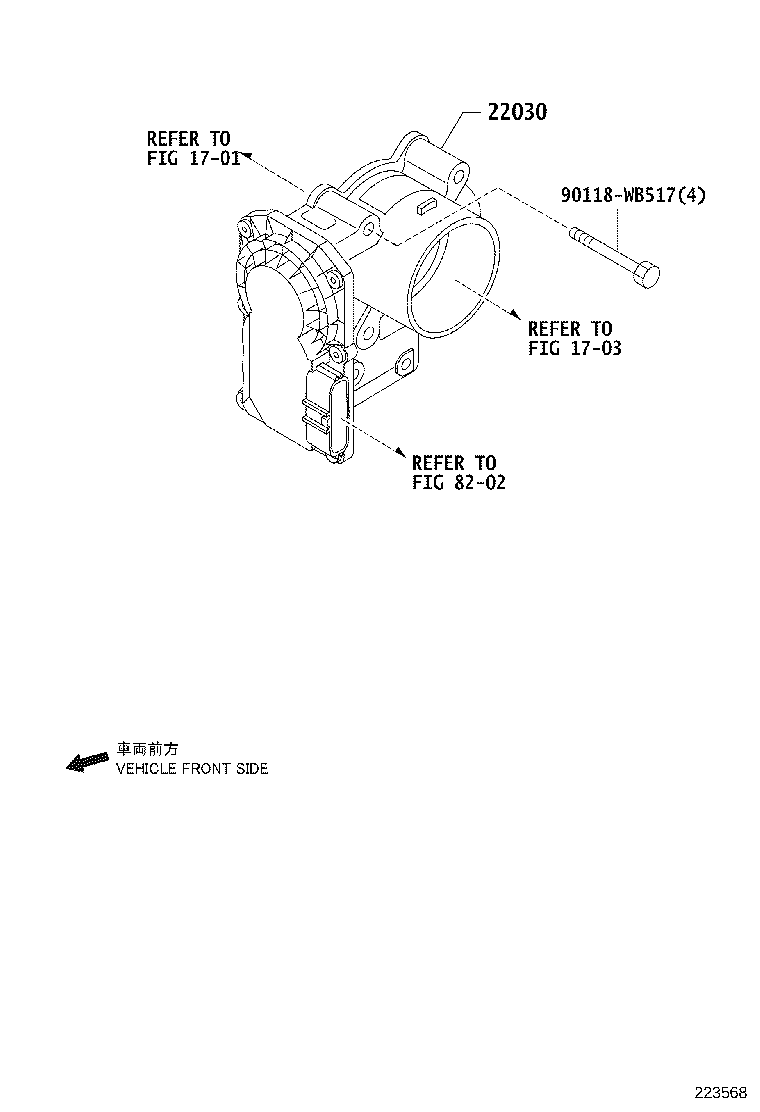

ILLUST NO. 3 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 1701 1703 22030 8202 90118WB517
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-WB001

P5..DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB517
Linked diagrams
1701
1703
8202
