DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

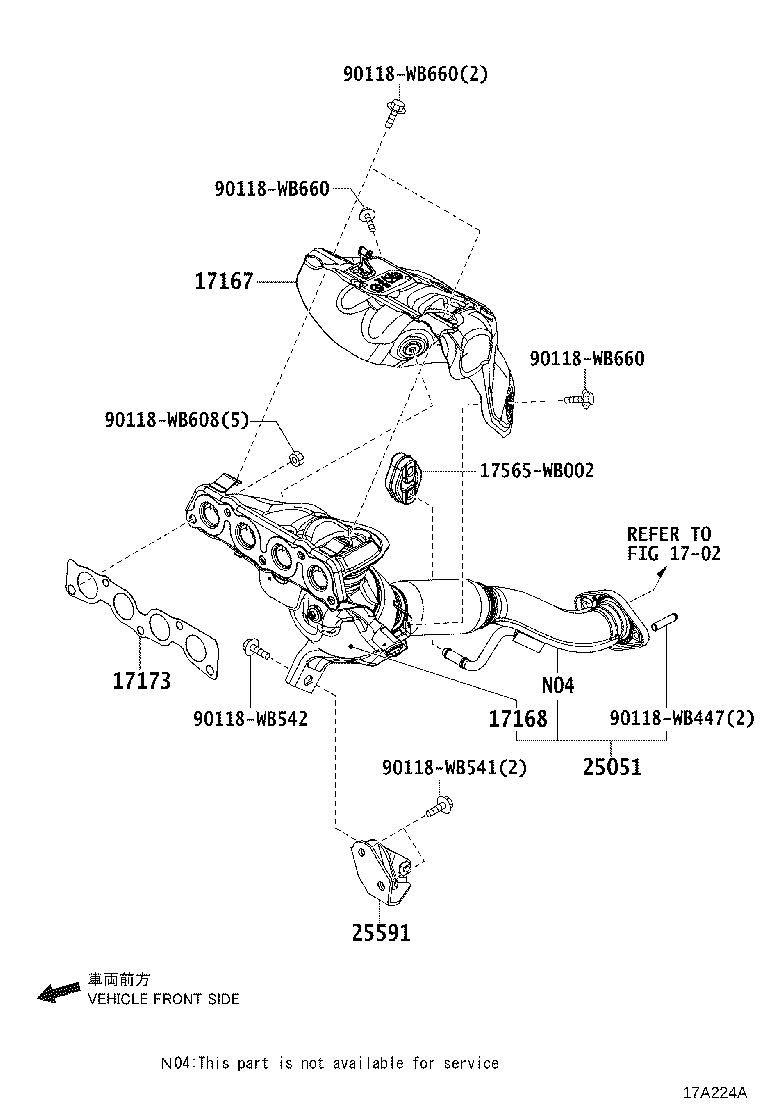

ILLUST NO. 3 OF 3(1506-1808)

Click highlighted areas on diagram

diagram 1702 17167 17168 17173 17565WB002 25051 25591 90118WB447 90118WB541 90118WB542 90118WB608 90118WB660 90118WB660 90118WB660
Part # Description Qty Price
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-WB001

P5..DB7P,DD1B,DM0S,0T

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
Common parts
17565-WB002
90118-WB447
90118-WB541
90118-WB542
90118-WB608
90118-WB660
Linked diagrams
1702
