DB7P-NAL (2016)
Toyota Scion Ia/Yaris R/Ia

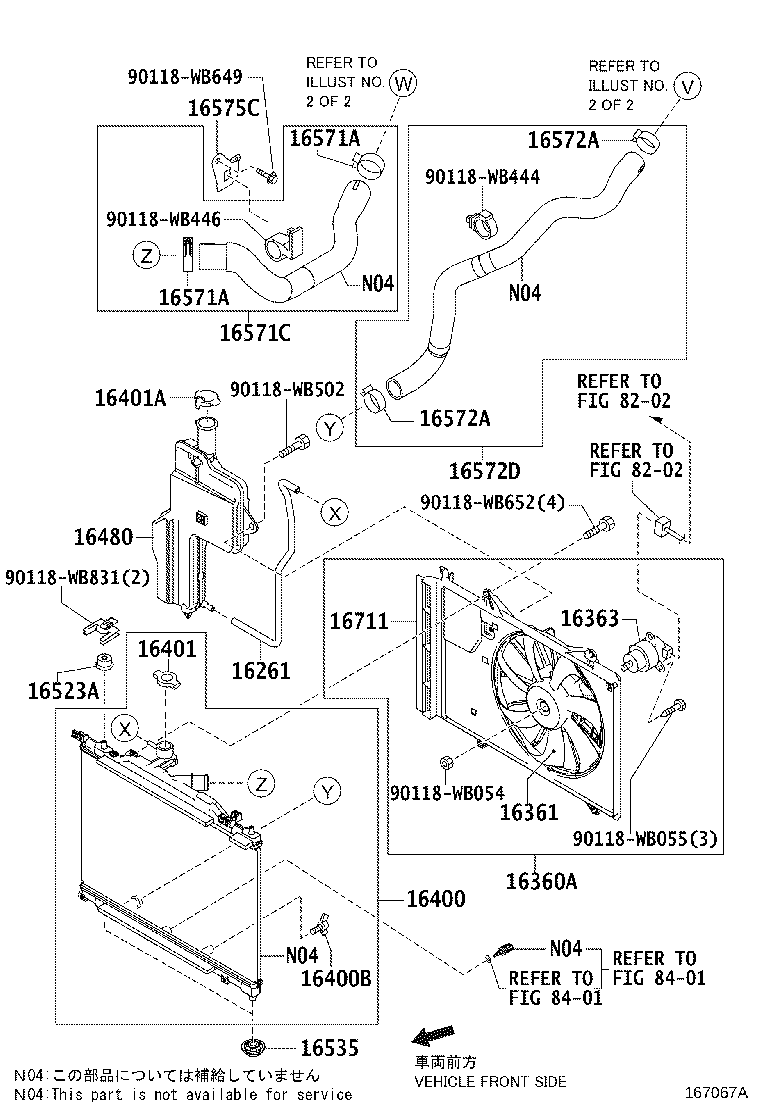

ILLUST NO. 1 OF 2(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16361 - FAN | ||||
| 16361-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-WB001 |
P5..DB7P,DD1B,DM0S,0T |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16405-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16480 - RESERVE TANK ASSY, RADIATOR W/O CAP | ||||
| 16480-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90118-WBB09 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
2 | ||
| 90118-WB466 |
P5..DB7P,DD1B |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90118-WB435 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90118-WB435 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90118-WB435 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90118-WB435 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
2 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-WB001 |
P5..DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB054 | ||||
| 90118-WB055 | ||||
| 90118-WB444 | ||||
| 90118-WB446 | ||||
| 90118-WB502 | ||||
| 90118-WB649 | ||||
| 90118-WB652 | ||||
| 90118-WB831 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

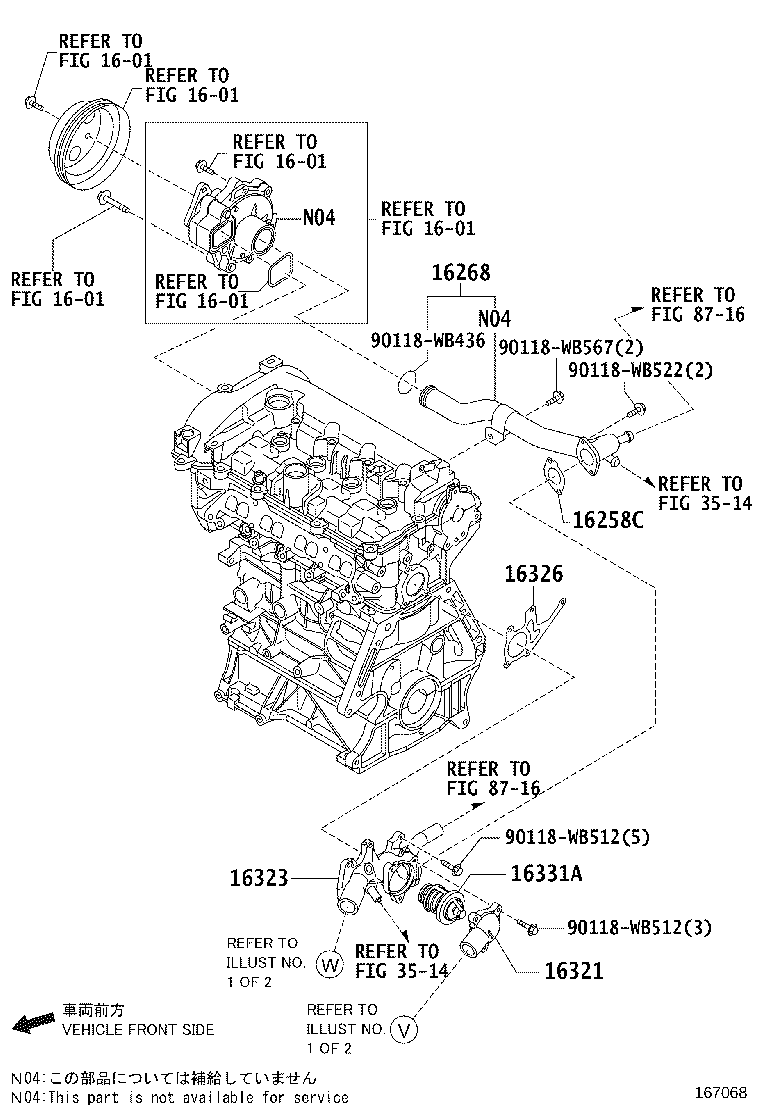

ILLUST NO. 2 OF 2(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-WB002 |
P5..DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-WB001 |
P5..DAEA1,DAEC1,DAEE1,DB7P,DDF5,9,DM0T |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90118-WB459 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB436 | ||||
| 90118-WB512 | ||||
| 90118-WB522 | ||||
| 90118-WB567 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 3514 | ||||
| 8716 | ||||
