DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1808)

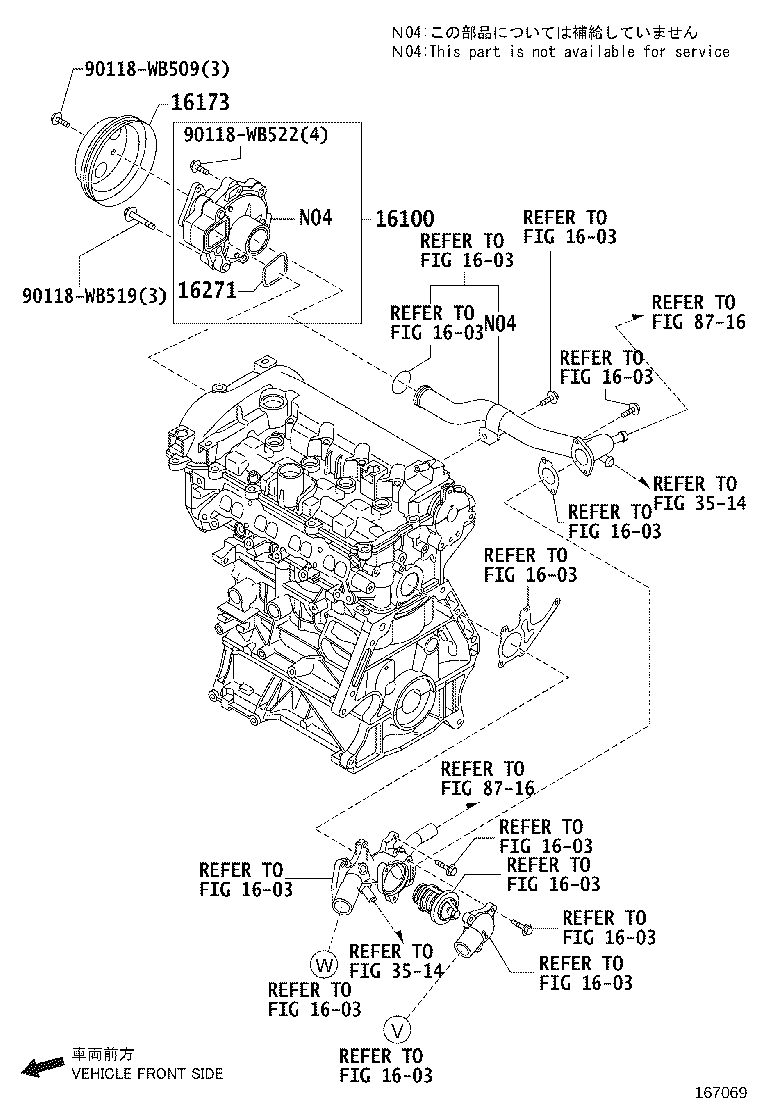

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 16100 16173 16271 3514 3514 8716 8716 90118WB509 90118WB519 90118WB522
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
16173 - PULLEY, WATER PUMP
16173-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
16271 - GASKET, WATER PUMP
16271-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
Common parts
90118-WB509
90118-WB519
90118-WB522
Linked diagrams
1603
3514
8716
