DB7P-NAL (2016)
Toyota Scion Ia/Yaris R/Ia
Production
Aug 2016
-
Aug 2017
Engine
P5 1500
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

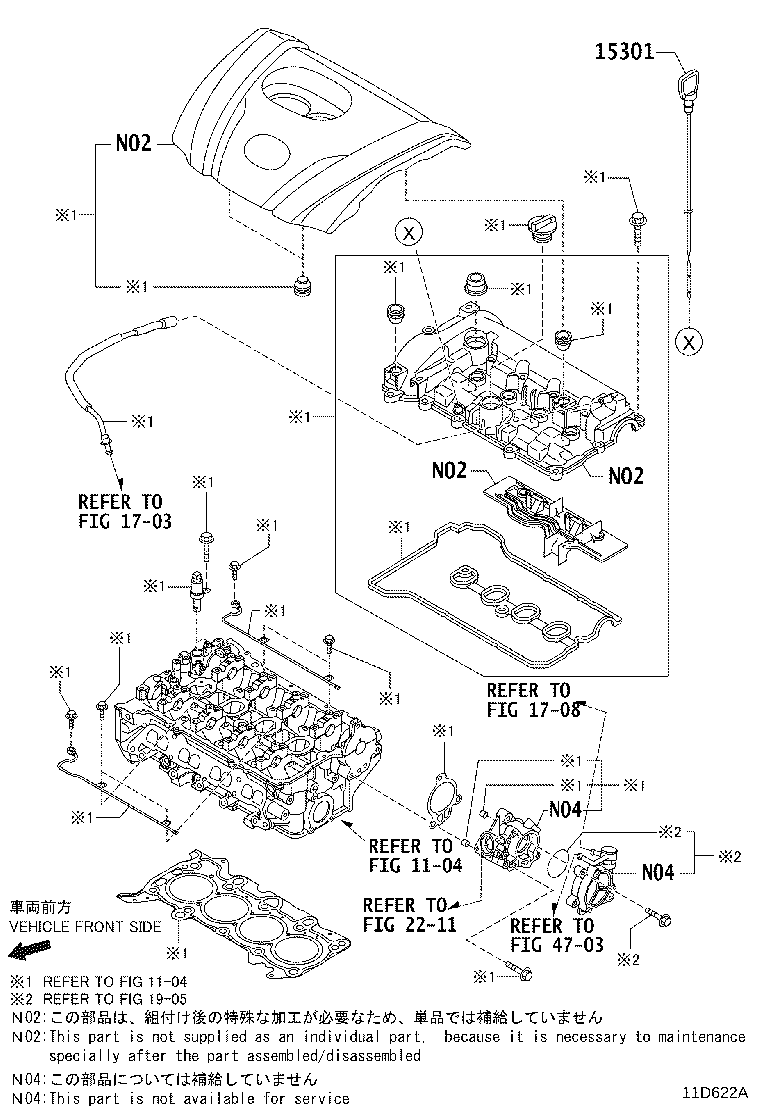

ILLUST NO. 1 OF 5(1506-1908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-WB001 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||
| 1703 | ||||
| 1708 | ||||
| 2211 | ||||
| 4703 | ||||

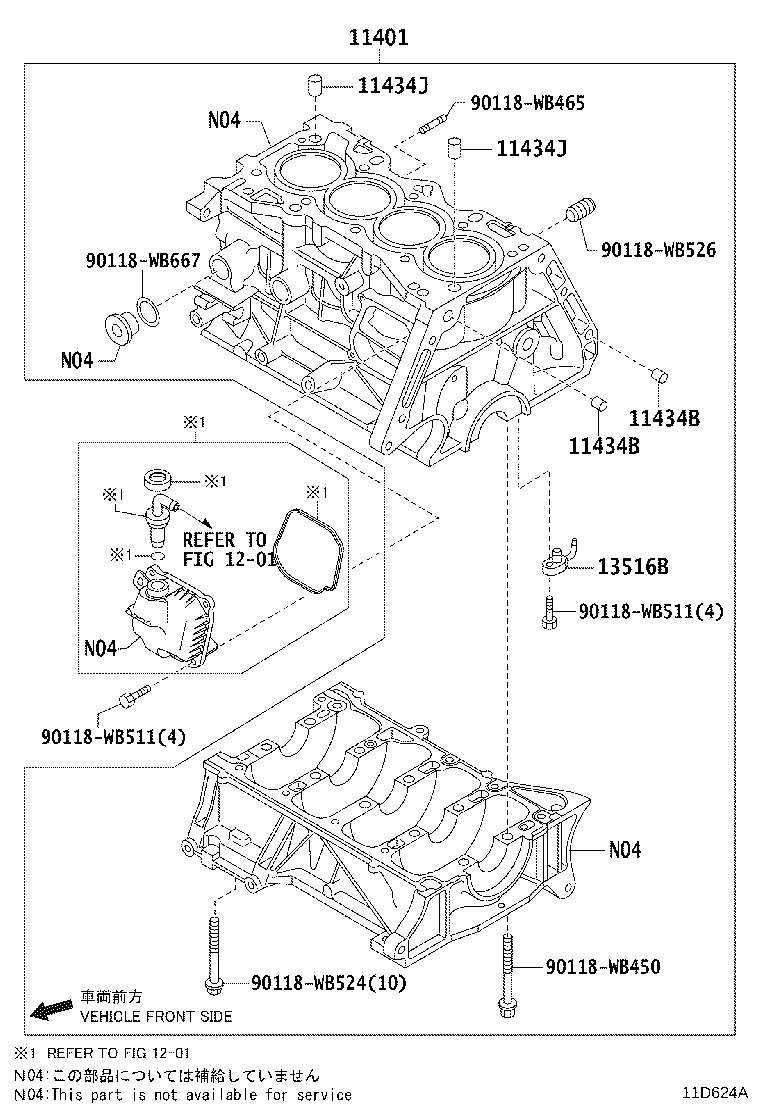

ILLUST NO. 3 OF 5(1506-1908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-WB001 |
P5..DB7P,DD1B,DM0S,0T |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90118-WB410 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90118-WB410 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90118-WB624 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90118-WB624 |
P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 13516B - JET, OIL | ||||
| 15708-WB001 |
P5..DB7P,DD1B,F#,DM0S,0T |
4 | ||
| Common parts | ||||
| 90118-WB450 | ||||
| 90118-WB465 | ||||
| 90118-WB511 | ||||
| 90118-WB524 | ||||
| 90118-WB526 | ||||
| 90118-WB667 | ||||
| Linked diagrams | ||||
| 1201 | ||||
