DB7P-NAL (2016)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2016 - Aug 2017
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

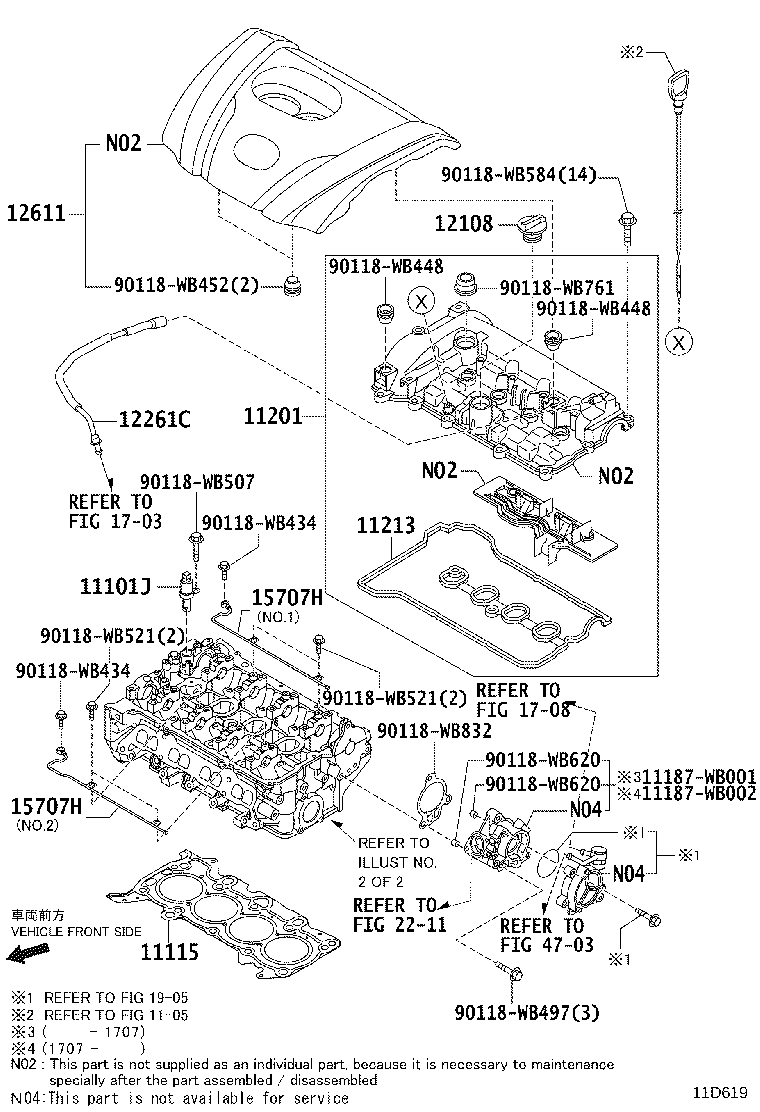

ILLUST NO. 1 OF 3(1506-1908)

Click highlighted areas on diagram

diagram 11101J 11115 11187WB001 11187WB002 11201 11213 12108 12261C 12611 15707H 15707H 1703 1708 2211 4703 90118WB434 90118WB434 90118WB448 90118WB448 90118WB452 90118WB497 90118WB507 90118WB521 90118WB521 90118WB584 90118WB620 90118WB620 90118WB761 90118WB832
Part # Description Qty Price
11115 - GASKET, CYLINDER HEAD
11115-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-WB002

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

WITH(R-DOT LABEL)

 1
11201-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

WITHOUT(R-DOT LABEL)

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T

 1
12261C - HOSE, VENTILATION
12229-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
12611 - COVER, ENGINE, NO.1
11212-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
15707H - PIPE SUB-ASSY, OIL
15707-WB002

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

NO.2

 1
15707-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

NO.1

 1
15707H - PIPE SUB-ASSY, OIL
15707-WB002

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

NO.2

 1
15707-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

NO.1

 1
Common parts
11187-WB001
11187-WB002
90118-WB434
90118-WB448
90118-WB452
90118-WB497
90118-WB507
90118-WB521
90118-WB584
90118-WB620
90118-WB761
90118-WB832
Linked diagrams
1703
1708
2211
4703

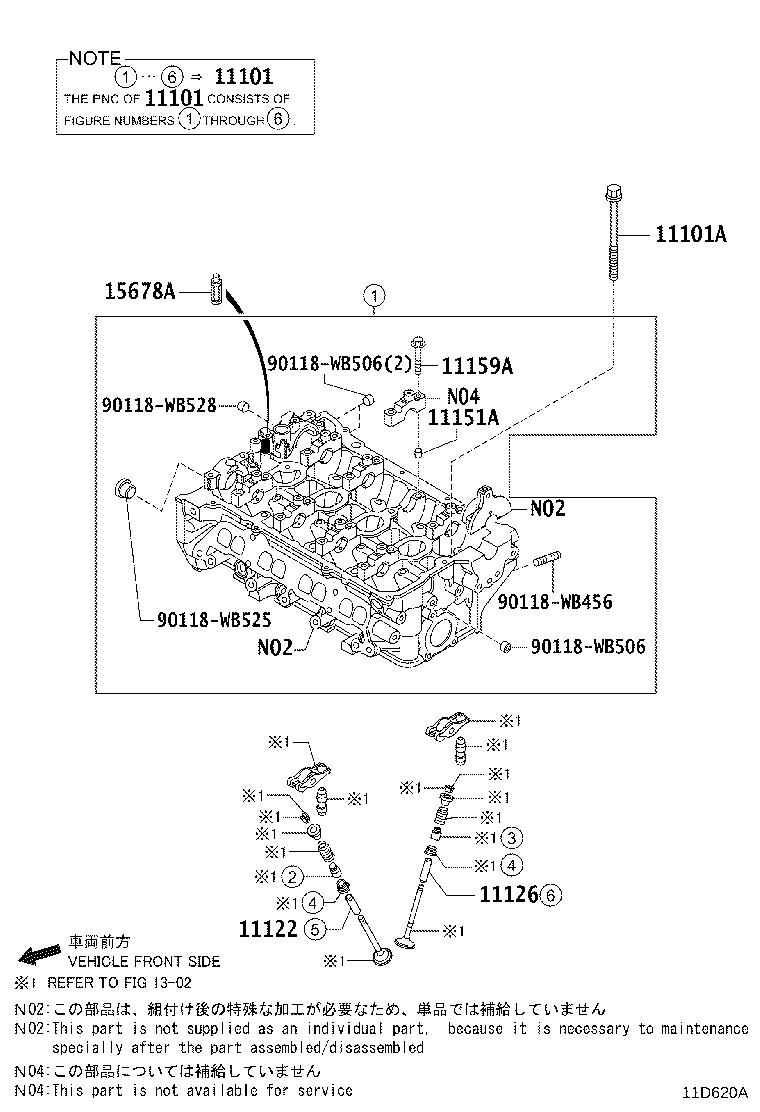

ILLUST NO. 2 OF 3(1506-2005)

Click highlighted areas on diagram

diagram 11101 11101 11101A 11122 11126 11151A 11159A 15678A 90118WB456 90118WB506 90118WB506 90118WB525 90118WB528
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
11101 - HEAD SUB-ASSY, CYLINDER
11101-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90118-WB451

P5..DB7P,DD1B

 10
90118-WBB03

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 10
11122 - BUSH, INTAKE VALVE GUIDE
11122-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-WB002

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

STD

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90118-WB619

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,DM0#

 22
15678A - FILTER, OIL CONTROL VALVE
15678-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
Common parts
90118-WB456
90118-WB506
90118-WB525
90118-WB528
