DB7P-NAE (2015)

Toyota Scion Ia/Yaris R/Ia

Production Jun 2015 - Aug 2016
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1506-1908)

Click highlighted areas on diagram

VISOR, ASSIST GRIP

diagram 6402 6701 74310 74320 74348 74348 74610A 74612 74612 74631C 7503 7503 8106 8106 8106 8106 8202 8202 86466WB001 86466WB002 8701 8701 8701 8701 8701 8701 8701 8701 90118WB336 90118WB336 90118WB688 90118WB688
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-WB001

DB7P,DD1B,DM0S,0T..PUE,USA

TINTED TOP,TRIM70,80

 1
74320 - VISOR ASSY, LH
74320-WB001

DB7P,DD1B,DM0S,0T..PUE,USA

TINTED TOP,TRIM70,80

 1
74348 - HOLDER, VISOR
74348-WB001

DB7P,DD1B

TINTED TOP,TRIM70,80

 2
74348-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

TINTED TOP,TRIM10,20,30,40,70,80

 2
74348 - HOLDER, VISOR
74348-WB001

DB7P,DD1B

TINTED TOP,TRIM70,80

 2
74348-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

TINTED TOP,TRIM10,20,30,40,70,80

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-WB001

DB7P,DD1B,F#,DM0S,0T

TINTED TOP,TRIM10,20,30,40,70,80

 1
74612 - COVER, ASSIST GRIP
74612-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

TINTED TOP,TRIM10,20,30,40,70,80

 2
74612 - COVER, ASSIST GRIP
74612-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

TINTED TOP,TRIM10,20,30,40,70,80

 2
74631C - HOOK, COAT
74631-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

TINTED TOP,TRIM10,20,30,40,70,80

 2
74631-WB001

DB7P,DD1B,DM0S,0T

TINTED TOP,TRIM70,80

 2
Common parts
86466-WB001
86466-WB002
90118-WB336
90118-WB688
Linked diagrams
6402
6701
7503
8106
8202
8701

ILLUST NO. 2 OF 3(1506- )

Click highlighted areas on diagram

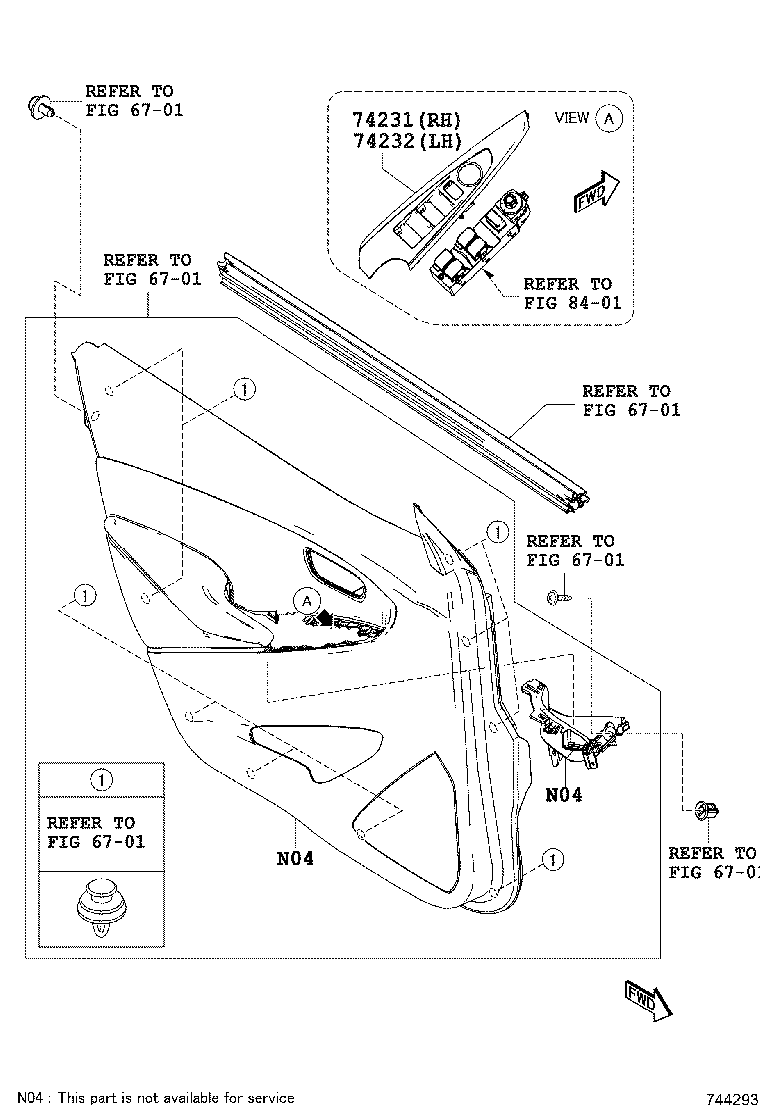

FRONT DOOR ARMREST

diagram 6701 6701 6701 6701 6701 6701 74231 74232 8401
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
74231-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

BLACK,TRIM10,20,30,40,70,80

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

BLACK,TRIM10,20,30,40,70,80

 1
74232-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
Linked diagrams
6701
8401

ILLUST NO. 3 OF 3(1506- )

Click highlighted areas on diagram

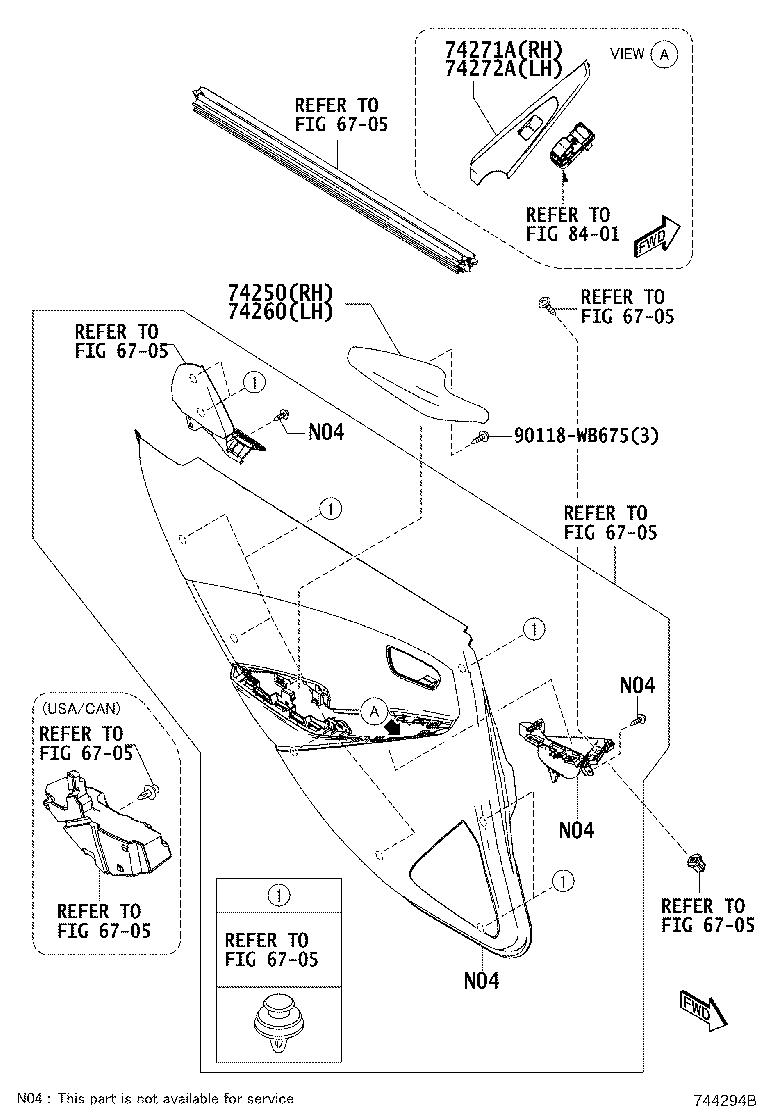

REAR DOOR ARMREST

diagram 6705 6705 6705 6705 6705 6705 6705 6705 74250 74260 74271A 74272A 8401 90118WB675 90118WB675
Part # Description Qty Price
74250 - ARMREST ASSY, REAR RH
74250-WB003

DD1D..HI;DD1B..CND,USA;DB7P..B,C,D,F,G,H,J,K

BLACK,TRIM70

 1
74250-WB004

DB7P,DD1#..BASE..(MXC,PUE)

GRAY,TRIM80

 1
74260 - ARMREST ASSY, REAR LH
74260-WB003

DD1D..HI;DD1B..CND,USA;DB7P..B,C,D,F,G,H,J,K

BLACK,TRIM70

 1
74260-WB004

DB7P,DD1#..BASE..(MXC,PUE)

GRAY,TRIM80

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

BLACK,TRIM10,20,30,40,70,80

 1
74271-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

BLACK,TRIM10,20,30,40,70,80

 1
74272-WB001

DB7P,DD1B,DM0S,0T

BLACK,TRIM70,80

 1
Common parts
90118-WB675
Linked diagrams
6705
8401
