DB7P-NAE (2015)

Toyota Scion Ia/Yaris R/Ia

Production Jun 2015 - Aug 2016
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

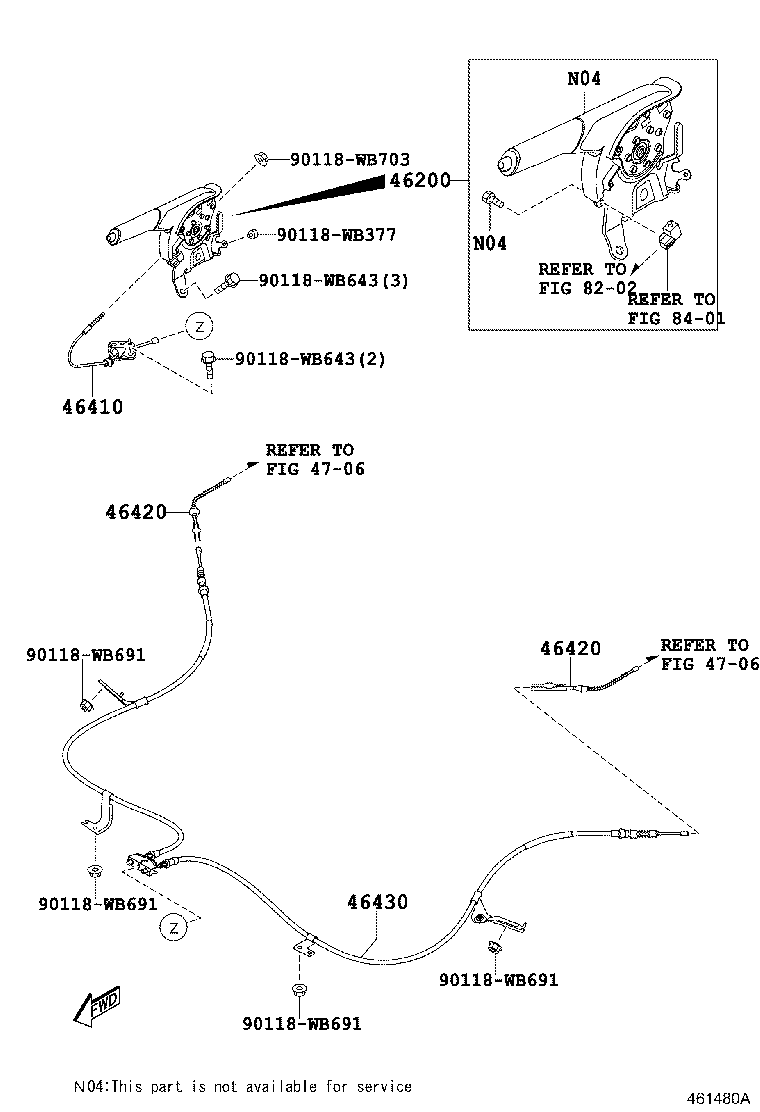

Click highlighted areas on diagram

diagram 46200 46410 46420 46420 46430 4706 4706 8202 8401 90118WB377 90118WB643 90118WB643 90118WB691 90118WB691 90118WB691 90118WB691 90118WB703
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46201-WB001

DDF5..A,B,D,F,G;DB7P..B,C,D,E,G,H,J,L;DAEC1,DM0T..A,B,C,E,F;DADW1,DAEA1,DAEB1,DAED1,DAEE1,DD1B,F4,F8,F9,DM0S..BASE,ENTRY

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46440-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 2
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46440-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46420-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
46420-WB001

DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB377
90118-WB643
90118-WB691
90118-WB703
Linked diagrams
4706
8202
8401
