DB7P-NAD (2015)
Toyota Scion Ia/Yaris R/Ia
ILLUST NO. 1 OF 2(1506-1808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-WB005 |
DB7P,DD1B |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-WB001 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 87223 - PAD, AIR DUCT | ||||
| 87429-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 87287A - DAMPER, HEATER AIR | ||||
| 87287-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-WB002 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 88501-WB001 |
DB7P,DD1B |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90118-WB365 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 88660A - SERVO ASSY, AIR CONDITIONER, NO.1 | ||||
| 88660-WB003 |
DB7P,DD1B,DM0S,0T |
1 | ||
| 88660B - SERVO ASSY, AIR CONDITIONER, NO.2 | ||||
| 88660-WB002 |
DB7P,DD1B,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB081 | ||||
| 90118-WB102 | ||||
| 90118-WB391 | ||||
| 90118-WB724 | ||||
| 90118-WB736 | ||||

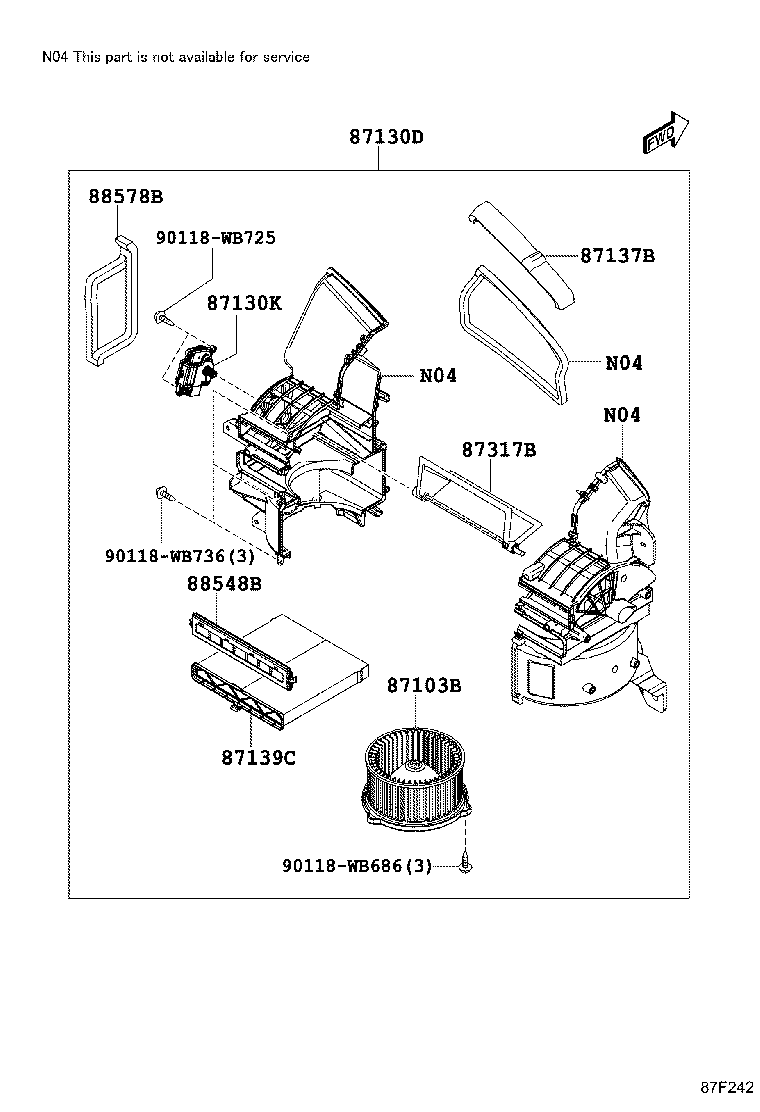

ILLUST NO. 2 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-WB001 |
DB7P,DD1B |
1 | ||
| 87130-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-WB003 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 87317B - DAMPER, HEATER DUCT | ||||
| 87317-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T |
1 | ||
| Common parts | ||||
| 90118-WB686 | ||||
| 90118-WB725 | ||||
| 90118-WB736 | ||||
