DB7P-NAD (2015)

Toyota Scion Ia/Yaris R/Ia

Production Jun 2015 - Aug 2016
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

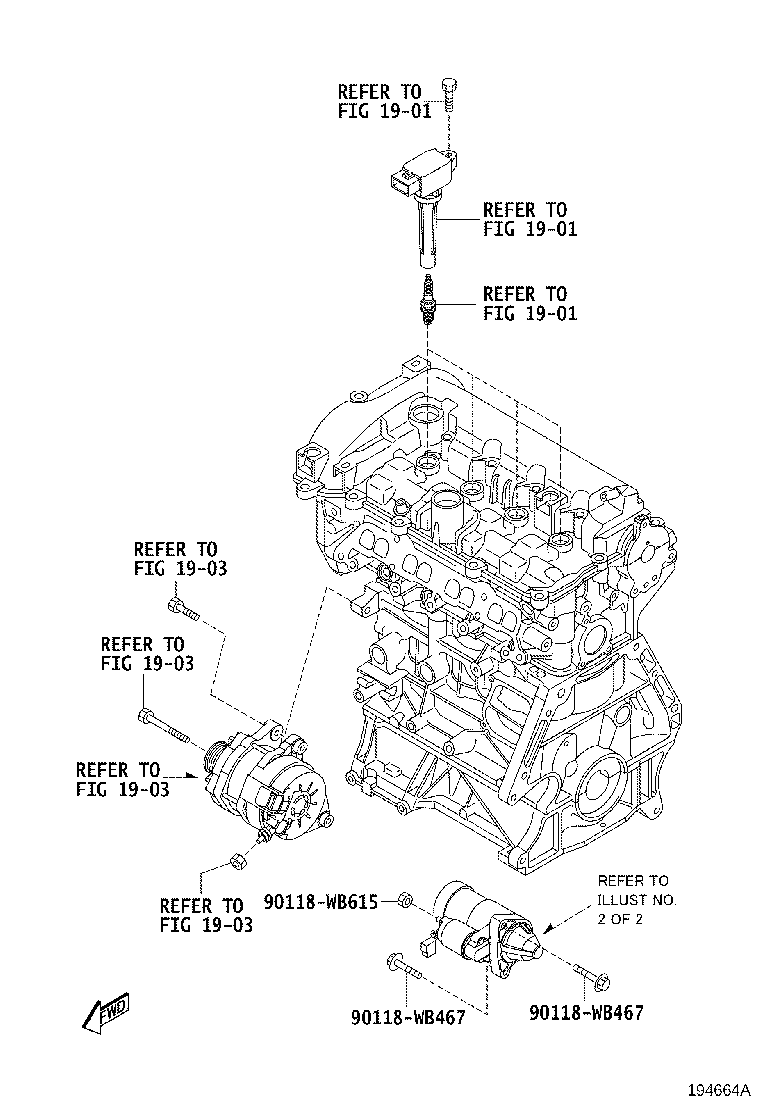

ILLUST NO. 1 OF 2(1506- )

Click highlighted areas on diagram

12V 10KW

diagram 1901 1901 1901 1903 1903 1903 1903 90118WB467 90118WB467 90118WB615
Part # Description Qty Price
Common parts
90118-WB467
90118-WB615
Linked diagrams
1901
1903

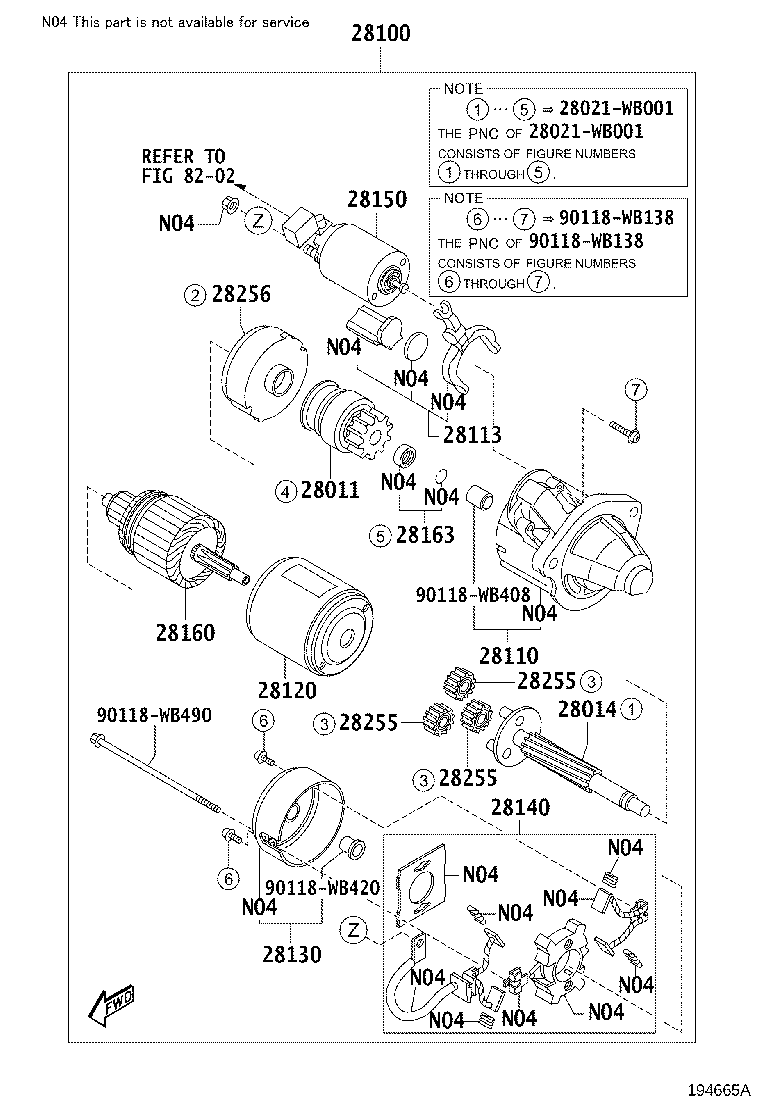

ILLUST NO. 2 OF 2(1506- )

Click highlighted areas on diagram

12V 10KW

diagram 28011 28014 28021WB001 28021WB001 28100 28110 28113 28120 28130 28140 28150 28160 28163 28255 28255 28255 28256 8202 90118WB138 90118WB138 90118WB408 90118WB420 90118WB490
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28100 - STARTER ASSY
28100-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28113 - LEVER, STARTER PINION DRIVE
28113-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28120 - YOKE ASSY, STARTER
28120-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28160 - ARMATURE ASSY, STARTER
28160-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
28255 - GEAR, PLANET
28255-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 3
28255 - GEAR, PLANET
28255-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 3
28255 - GEAR, PLANET
28255-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 3
28256 - GEAR, STARTER INTERNAL
28256-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
Common parts
28021-WB001
90118-WB138
90118-WB408
90118-WB420
90118-WB490
Linked diagrams
8202
