Toyota Scion ia/yaris r/ia DB7P MAT & CARPET

Part #	Description	Period	Qty
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-WB001	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	1
55214-WB001	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	1
55214D - CLIP(FOR DASH PANEL INSULATOR PAD)
90118-WB388	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	1
90118-WB388	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	1
55216C - PAD, DASH PANEL INSULATOR, NO.4
55216-WB001	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	1
55216-WB001	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-WB001	DB7P,DD1B,DM0S,0T BLACK,TRIM70,80	06/2015 - 08/2018	1
58511E - CLIP(FOR FRONT FLOOR MAT)
90118-WB471	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W BLACK,TRIM10,20,30,40,70,80	08/2015 - 12/2999	2
90118-WB471	DB7P,DD1B,DM0S,0T BLACK,TRIM70,80	06/2015 - 08/2018	2
58521B - HOOK, FLOOR CARPET
90118-WB379	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	4
58522D - HOOK, FLOOR CARPET, NO.2
58522-WB001	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	4
58522-WB001	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	4
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-WB001	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	1
58563-WB001	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	1
58565B - CLIP
90118-WB353	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T BLACK,TRIM10,20,30,40,70,80	06/2015 - 12/2999	2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-WB001	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	1
58569-WB001	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	1
58582F - CLIP, NO.2(FOR REAR FLOOR CARPET)
90118-WB371	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	2
90118-WB371	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	2
58595 - MOULDING, FLOOR CARPET, NO.3
58595-WB001	DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T BLACK,TRIM10,20,30,40,70,80,RH:REFER ILLUST.	06/2015 - 12/2999	1
58595-WB002	DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T BLACK,TRIM10,20,30,40,70,80,LH:REFER ILLUST.	06/2015 - 12/2999	1
58595 - MOULDING, FLOOR CARPET, NO.3
58595-WB001	DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T BLACK,TRIM10,20,30,40,70,80,RH:REFER ILLUST.	06/2015 - 12/2999	1
58595-WB002	DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T BLACK,TRIM10,20,30,40,70,80,LH:REFER ILLUST.	06/2015 - 12/2999	1
58694A - PLATE, MAT SET, UPPER
58694-WB002	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	1
58694-WB002	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	1
Linked diagrams
5304
5503
6403

Part #	Description	Period	Qty
58510D - CARPET ASSY, FLOOR, FRONT
58510-WB003	DB7P,DD1B..CND,PUE BLACK,TRIM70,80	06/2015 - 03/2016	1
58510G - CARPET ASSY, FLOOR, FRONT RH
58511-WB003	DD1B..B,E,F;DB7P..CND,PUE BLACK,TRIM70,80	06/2015 - 08/2017	1
58520J - CARPET ASSY, FLOOR, FRONT LH
58512-WB003	DB7P,DD1B..CND,PUE BLACK,TRIM70,80	06/2015 - 08/2017	1
58694B - PLATE, MAT SET, UPPER
58694-WB001	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	4
58694-WB001	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	4
58698C - PLATE, MAT SET, LOWER
58698-WB001	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W	08/2015 - 12/2999	4
58698-WB001	DB7P,DD1B,DM0S,0T	06/2015 - 08/2018	4
Linked diagrams
6403

DB7P-NAC (2015)

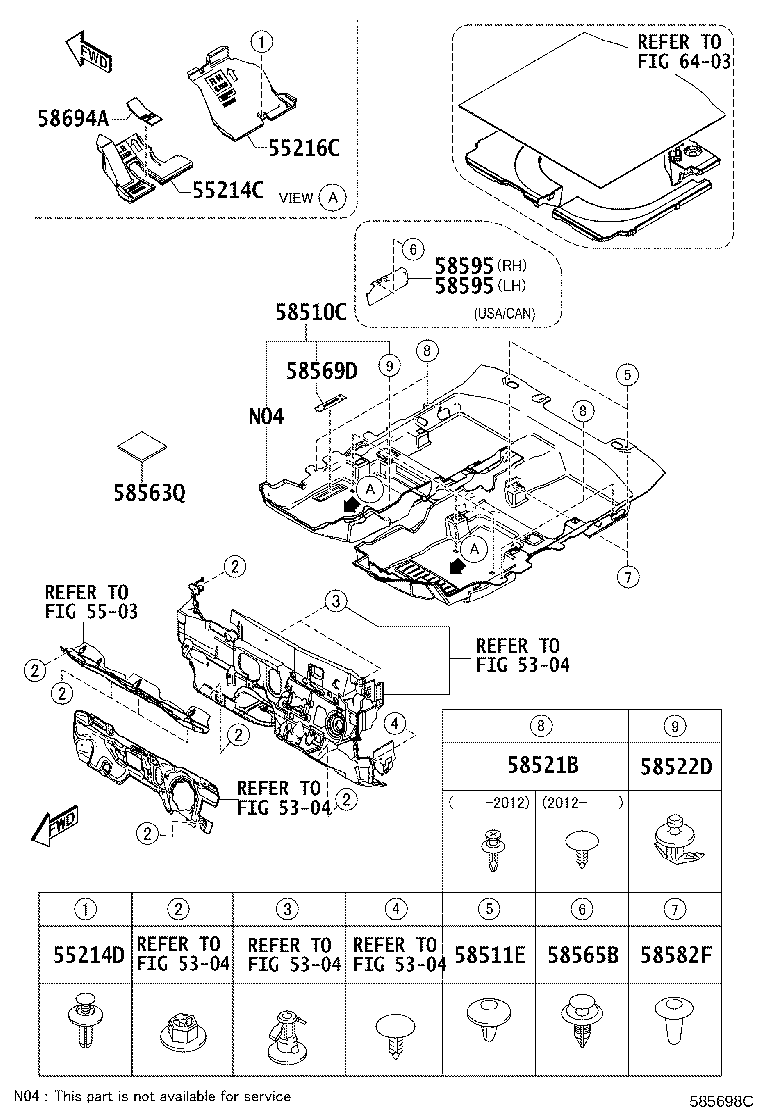

ILLUST NO. 1 OF 2(1506- )

ILLUST NO. 2 OF 2(1506-1908)
