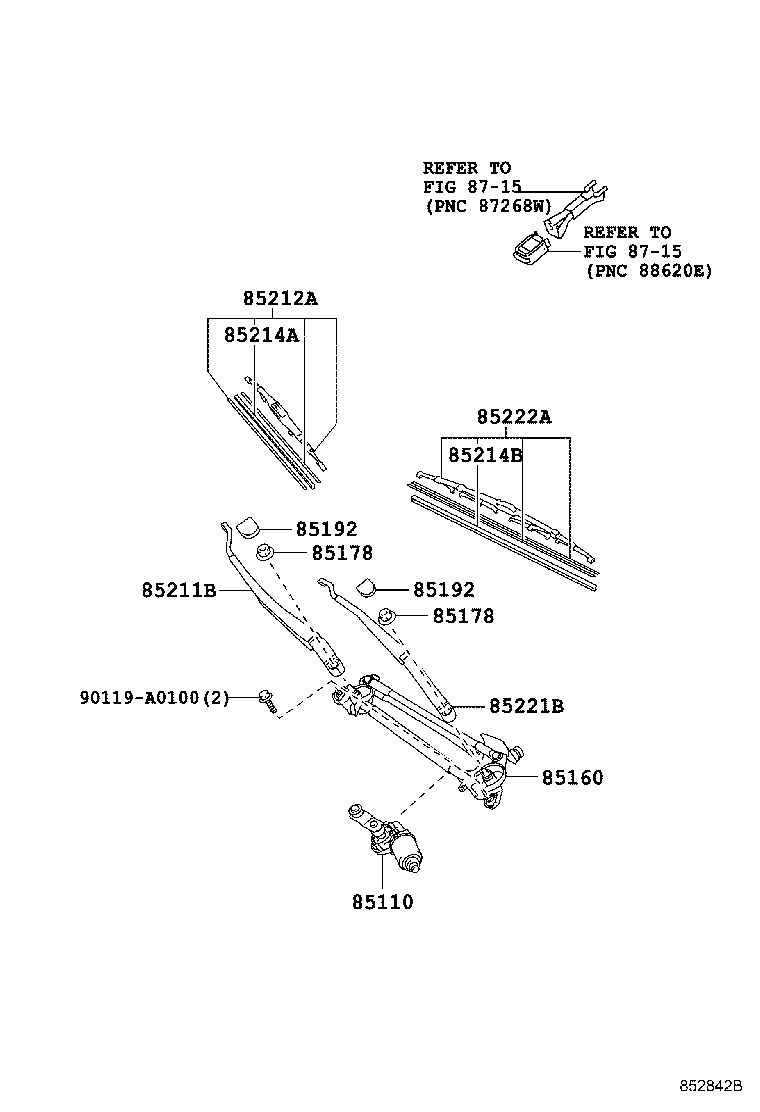

Toyota Rav4 ev QEA38 WINDSHIELD WIPER

Part #	Description	Period	Qty
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0R010	QEA38	04/2012 - 08/2014	1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0R010	QEA38	04/2012 - 12/2999	1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-A0017	QEA38	02/2013 - 12/2999	2
90182-10006	QEA38	04/2012 - 01/2013	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-A0017	QEA38	02/2013 - 12/2999	2
90182-10006	QEA38	04/2012 - 01/2013	2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010	QEA38	04/2012 - 01/2013	2
85292-AA010	QEA38	02/2013 - 12/2999	2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010	QEA38	04/2012 - 01/2013	2
85292-AA010	QEA38	02/2013 - 12/2999	2
85211B - ARM, FRONT WIPER, RH
85211-0R010	QEA38	04/2012 - 12/2999	1
85212A - BLADE, FR WIPER, RH
85212-0R040	QEA38	05/2012 - 12/2999	1
85212-35071	QEA38	04/2012 - 05/2012	1
85214A - RUBBER, WIPER, RH
85214-12301	QEA38	04/2012 - 12/2999	1
85214B - RUBBER, WIPER, LH
85214-50100	QEA38	04/2012 - 12/2999	1
85221B - ARM, FRONT WIPER, LH
85221-0R010	QEA38	04/2012 - 12/2999	1
85222A - BLADE, FR WIPER, LH
85222-0R040	QEA38	05/2012 - 12/2999	1
85222-24080	QEA38	04/2012 - 05/2012	1
Common parts
90119-A0100
Linked diagrams
8715

QEA38L-CNDGSA (2012)
