Toyota Rav4 ev QEA38 BACK DOOR PANEL & GLASS

QEA38L-CNDGSA (2012)

Toyota Rav4 Ev

Production Apr 2012 - Aug 2014

Engine EM

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

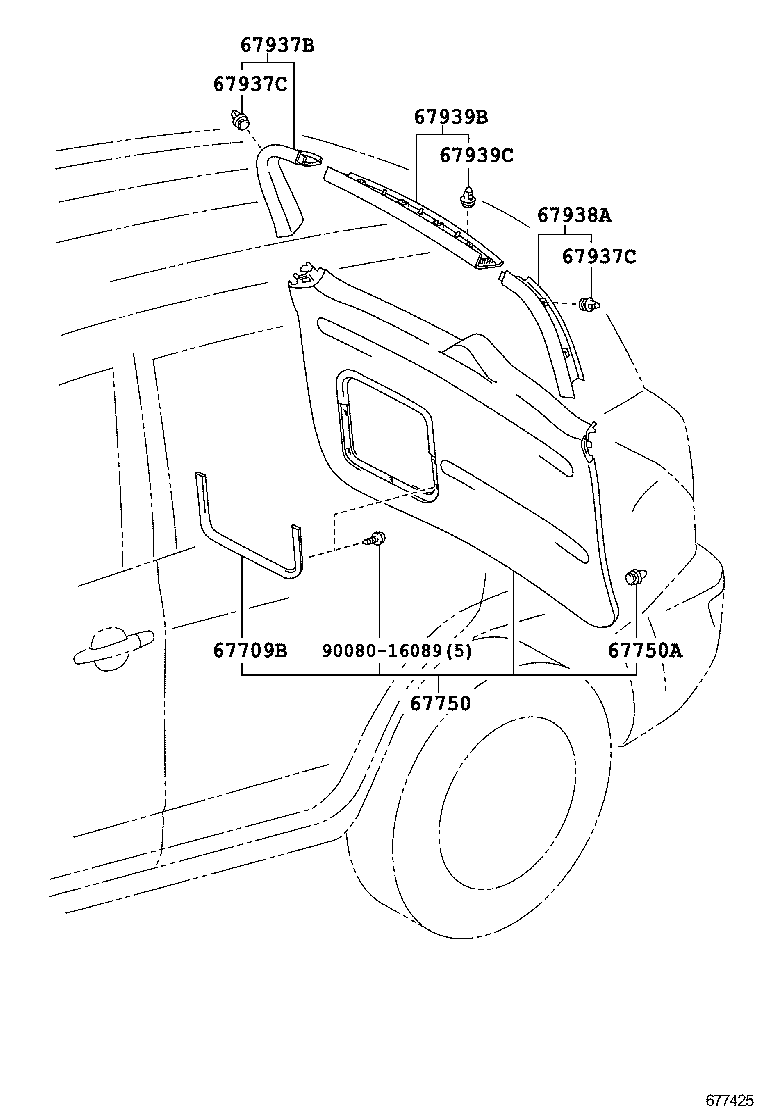

DOOR TRIM

Part #	Description	Period	Qty
67709B - POCKET SUB-ASSY, BACK DOOR TRIM
67709-0R010B1	QEA38 DK.GRAY,TRIM1#	04/2012 - 08/2014	1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-0R060B0	QEA38 DARK GRAY,TRIM1#	04/2012 - 08/2014	1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-09206	QEA38	04/2012 - 12/2999	13
67937B - GARNISH, BACK DOOR SIDE, RH
67937-0R010B0	QEA38 GRAY,TRIM1#	04/2012 - 08/2014	1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161	QEA38	04/2012 - 12/2999	4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161	QEA38	04/2012 - 12/2999	4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-0R010B0	QEA38 GRAY,TRIM1#	04/2012 - 08/2014	1
67939B - GARNISH, BACK DOOR, CENTER
67939-0R010B0	QEA38 GRAY,TRIM1#	04/2012 - 08/2014	1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-10161	QEA38	04/2012 - 12/2999	4
Common parts
90080-16089

Click highlighted areas on diagram

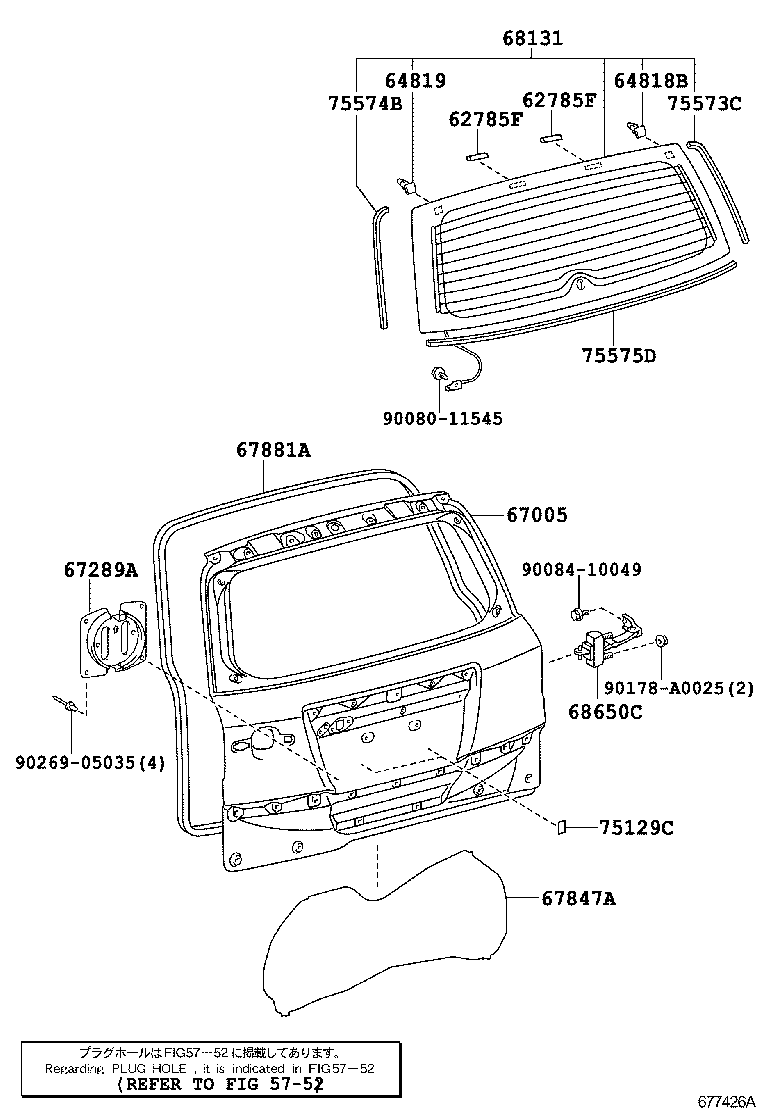

DOOR PANEL

Part #	Description	Period	Qty
62785F - SPACER, BACK DOOR GLASS
62785-0R010	QEA38	04/2012 - 12/2999	2
62785F - SPACER, BACK DOOR GLASS
62785-0R010	QEA38	04/2012 - 12/2999	2
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-0R010	QEA38	04/2012 - 12/2999	1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-0R010	QEA38	04/2012 - 12/2999	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-0R140	QEA38	04/2012 - 12/2999	1
67289A - DAMPER, BACK DOOR
67289-42010	QEA38	04/2012 - 08/2014	1
67847A - COVER, BACK DOOR SERVICE HOLE
67847-0R010	QEA38	04/2012 - 12/2999	1
67881A - WEATHERSTRIP, BACK DOOR
67881-0R010	QEA38	04/2012 - 12/2999	1
68131 - GLASS, BACK DOOR
68105-0R010	QEA38 *EHTT,T=3.1,DK.GRAY	04/2012 - 12/2999	1
68650C - CHECK ASSY, BACK DOOR, RH
68650-42081	QEA38	04/2012 - 12/2999	1
75129C - CUSHION, REAR LICENCE PLATE
75129-13020	QEA38 (J)	01/2013 - 12/2999	2
75129-13020	QEA38	04/2012 - 01/2013	2
75129-AC010	QEA38 (L)	01/2013 - 12/2999	2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-0R010	QEA38	04/2012 - 12/2999	1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75574-0R010	QEA38	04/2012 - 12/2999	1
75575D - MOULDING, BACK WINDOW, LOWER
75575-0R010	QEA38	04/2012 - 12/2999	1
Common parts
90080-11545
90084-10049
90178-A0025
90269-05035
Linked diagrams
5752

Click highlighted areas on diagram

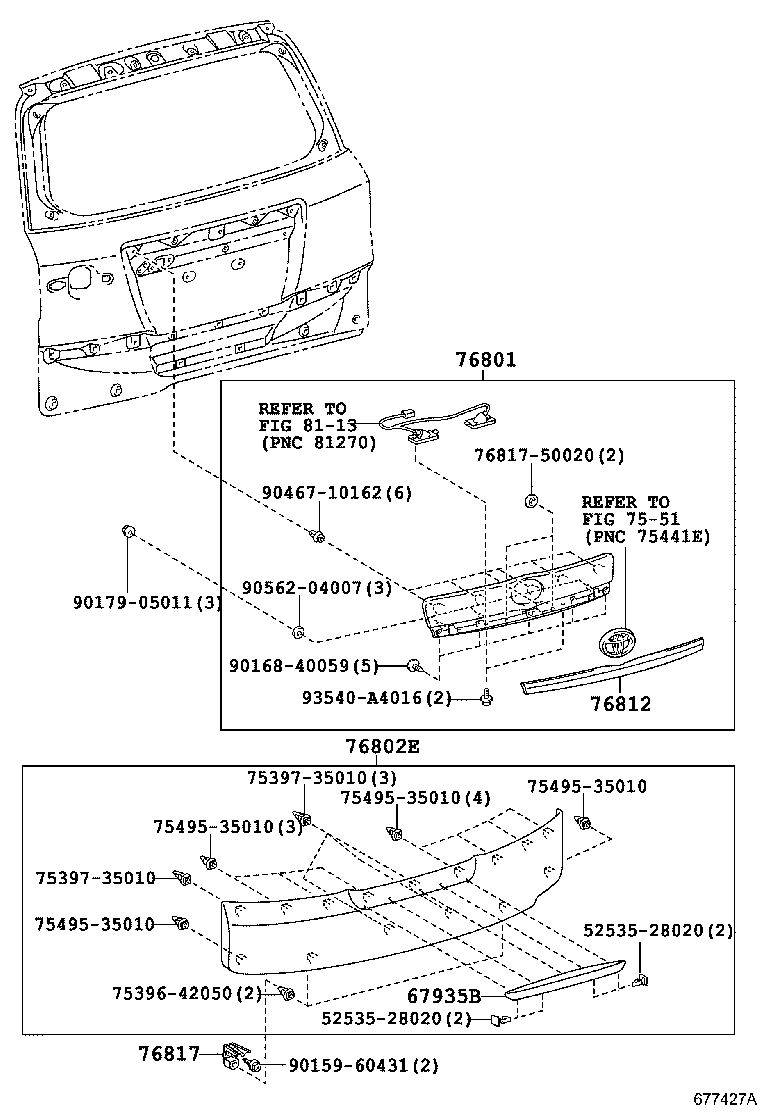

DOOR GARNISH

Part #	Description	Period	Qty
67935B - GARNISH, BACK DOOR
67935-42030	QEA38	04/2012 - 12/2999	1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-42010A0	QEA38 SUPER WHITE 2,040	04/2012 - 08/2014	1
76801-42010A1	QEA38 WHITE PEARL CS.,070	04/2012 - 08/2014	1
76801-42010B0	QEA38 SILVER ME.,1F7	04/2012 - 08/2014	1
76801-42010J0	QEA38 GRAYISH BLUE M.M.,8V5	04/2012 - 08/2014	1
76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
76802-42100J2	QEA38 GRAYISH BLUE M.M.,8V5	04/2012 - 08/2014	1
76802-42100A1	QEA38 WHITE PEARL CS.,070	04/2012 - 08/2014	1
76802-42100A0	QEA38 SUPER WHITE 2,040	04/2012 - 08/2014	1
76802-42100B0	QEA38 SILVER ME.,1F7	04/2012 - 08/2014	1
76812 - GARNISH, BACK DOOR, OUTSIDE LOWER
76812-42030	QEA38	04/2012 - 12/2999	1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-42030	QEA38	04/2012 - 12/2999	2
Common parts
52535-28020
75396-42050
75397-35010
75495-35010
76817-50020
90159-60431
90168-40059
90179-05011
90467-10162
90562-04007
93540-A4016
Linked diagrams
7551
8113
