BEA11L-AWDFSA (1997)
Toyota Rav4 Ev
Production
Sep 1997
-
Nov 1999
Engine
EM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9709- )

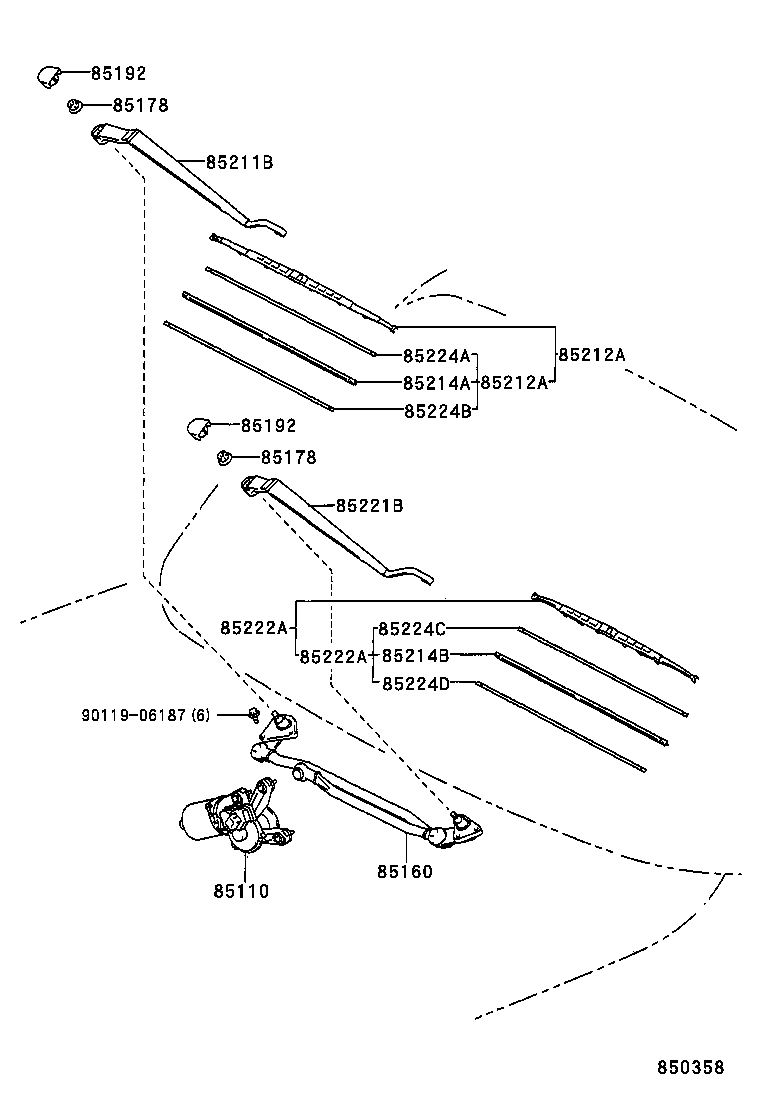

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-42040 |
BEA11 |
1 | ||
| 85110-42031 |
BEA11 COLD SPEC |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-42050 |
BEA11 |
1 | ||
| 85150-42060 |
BEA11 COLD SPEC |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
BEA11 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
BEA11 |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-12020 |
BEA11 |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-12020 |
BEA11 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-42060 |
BEA11 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-60090 |
BEA11 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-60090 |
BEA11 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-60060 |
BEA11 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-42020 |
BEA11 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-42050 |
BEA11 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-42040 |
BEA11 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-42040 |
BEA11 |
1 | ||
| 85224A - PLATE, WIPER RUBBER BACKING, NO.1 | ||||
| 85224-60100 |
BEA11 |
1 | ||
| 85224B - PLATE, WIPER RUBBER BACKING, NO.2 | ||||
| 85224-60100 |
BEA11 |
1 | ||
| 85224C - PLATE, WIPER RUBBER BACKING, NO.3 | ||||
| 85224-10210 |
BEA11 |
1 | ||
| 85224D - PLATE, WIPER RUBBER BACKING, NO.4 | ||||
| 85224-10210 |
BEA11 |
1 | ||
| Common parts | ||||
| 90119-06187 | ||||
